uknown coil balance for windows

A landlord from st. Paul, MN says:
I have many windows in a bldg that have this style of balance. I have torn these windows down and cannot find an MFG.

Measurements as follows 1-1/4" X 1-3/8" (nom) center roller is 3/4"
see pictures

Any help would be nice. Looking for a vendor.

Thank You

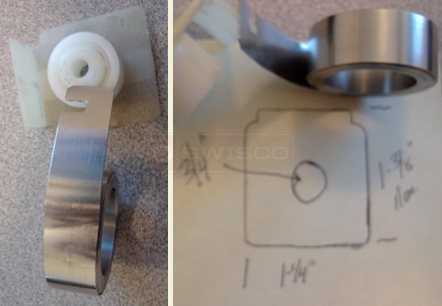

User submitted photo of coil balance.
Profile picture of Mike
Mike from SWISCO responded:
Thank you for submitting your photos.

Can you upload a couple more pictures of the pivot bar on the sash and the pivot shoe (which connects to the spring)? This will help us research what you may be able to use as a replacement.

Here's an example of a pivot shoe and pivot bar just so you know what you're looking for.
A quick learner from St Paul MN says:
Thanks MIke

More pictures attached

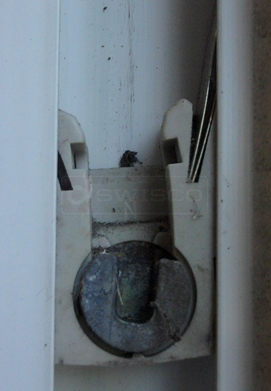

User submitted photo of pivot shoe.
Profile picture of Mike
Mike from SWISCO responded:
Do you have the pivot bar available?
A quick learner from St Paul says:
Thought I did

Again thanks for the help!

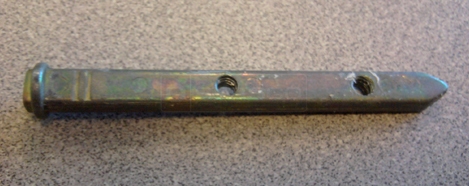

User submitted photo of pivot bar.
Profile picture of Paul
Paul from SWISCO responded:
The pivot bar looks like our 26-226 and the tilt cam looks like our 15-177. You will also have to purchase new springs because the new pivot shoe will not accept the hook style spring. The spring series you need is our S152. I cannot make out the number printed on your spring so I cannot point you to a specific spring in that series.
