vinyl window glazing beads

A home owner from Great falls, MT says:
Dear Swisco Customer service:

My house was built in 1985. one of window glazing beads needs to be replaced. The photos have been attached to describe the shape and size. I would like to make sure before I buy it. Is this Andersen 3/8" glazing beads, gray color, product code:55-303. Also do you have the service or store in Great Falls, MT?
Thanks,
Zou

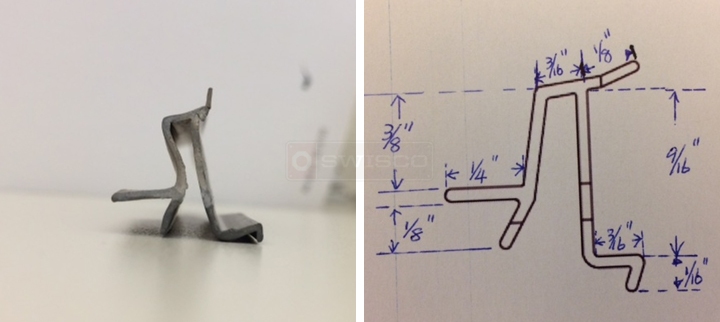

User submitted photos of a glazing bead.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
Hello, Zou. Looking at your photo, I don't think our 55-303 is the one you want for your window. In your drawing you show that the top is 5/16" wide (3/16" + 1/8"), while the top of the 55-303 glazing bead is 1/2". You might want to consider our 55-301 glazing bead instead. This is for 5/8" thick glass. See if you can find out the thickness of your glass. That would determine which glazing bead would work best.
A home owner from Needles, CA says:
Not familiar with the sizes. Needs replacing. I live in the Desert SW and the afternoon sun bakes a couple of my windows.
Thumbnail of the uploaded file named IMG_2424.jpg
Thumbnail of the uploaded file named IMG_2428.jpg
Thumbnail of the uploaded file named IMG_2429.jpg
Profile picture of Tom
Tom from SWISCO responded:

Looking at your end profile here, I'd say that our best option is going to be our 55-192. Review our specs below to see if you agree. If they differ in any way, just let me know how and we can work from there.

Profile view of 55-192
Profile view of 55-192
