window parts

A professional from Columbia says:
January 23, 2017
Looking for parts. Attached are pictures. One channel is stamped 26B and measures 26". The other is stamped 24B.
Note end pieces. Need estimate and turn around time.
Thank you,
Lisa
Glass Doctor

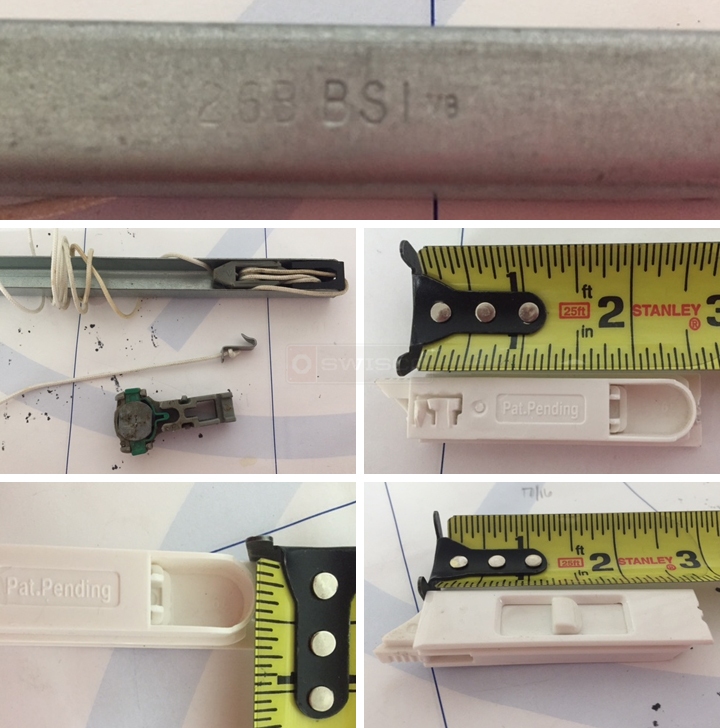

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
January 27, 2017
The top white tilt latches resemble our 26-243 and 26-244. Look over our dimensions and see what you think.

The balance will have to be custom made. I'm thinking our Series 795, but with the default bottom shoe replaced with the smaller 15-194 and the top screw tab replaced with the 15-198 hook. Does that look good to you? If so, tell me how many of each size you need.
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
26" Series 795 Channel Balance
26" Series 795 Channel Balance
S795-26
$13.45
24" Series 795 Channel Balance
24" Series 795 Channel Balance
S795-24
$13.45
