wright Operator

A quick learner from rhode Island says:
Need to replace Wright operator.
Gear arm is 4/38 inches on center
Link arm is 3.5 inches on center.
I looked through your site but,could not find a replacement.Do you have any suggestions?

Thank You

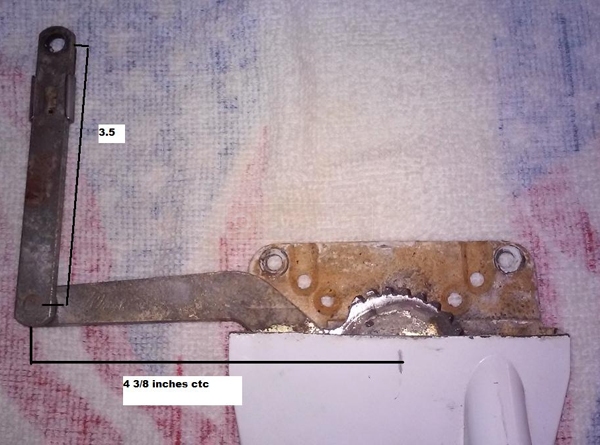

User submitted a photo of a window operator.
Profile picture of Dave
Dave from SWISCO responded:
Thank you for your patience in this matter. We don't have an exact match for this operator, but you may be able to substitute with our 39-387 and 39-388. There are just two things to note:

1) You will have to reverse the clip at the end of the link arm. This can be done simply by popping it off with a flat-head screwdriver.

2) The arm dimensions may be a little different, but I measured them together and the sum total comes out to 7-7/8" from center of the gear to the end of the link arm.
A quick learner from Rhode Island says:
Thank for your reply,I will try it.
