Product Code: S600-21

21" Series 600 Spiral Tilt Window Balance

Name: 21" Series 600 Spiral Tilt Window Balance
SKU: S600-21
Price: 8.9 USD
Availability: InStock

$8.90

21" Series 600 Spiral Tilt Window Balance Image

Quantity	Price
1-11	$8.90/ea
12-49	$8.01/ea
50-99	$7.12/ea
100-199	$6.68/ea
200-399	$5.87/ea
400+	$5.43/ea

Please Note: Bulk pricing applies only to purchases of the same option

red tip blue tip +$0.20 black tip +$1.68

Quantity

Add to Wishlist

Product Description

This is a Series 600 balance, considered the most popular spiral tilt balance in the industry and used in aluminum and vinyl tilt-in windows. It moderates the operation of your window sash to allow the window to stay open when raised.

This balance has a 21" long metal tube. When determining the length only measure the metal tube.
The strength you need should be indicated as a color tip at the end of your old metal tube. If you do not see a color tip weigh your sash on a scale and refer to the chart below.
The metal tube measures 9/16" in diameter, but it is considered 5/8" in the trade, and houses an internal spiral rod with double pins.
Can work for either the left or right side of the window interchangeably.
Spiral window balances come fully lubricated and ready to be charged.

Color Tip	Sash Weight Range
red tip	6 to 19 lbs
blue tip	10 to 29 lbs
black tip	30 to 40 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Good Idea!

Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.

Helpful Tip!

You should choose the color tip that matches the color tip of the balances you are replacing. If you do not see the tip color available in 'options' or you are unsure of which color to choose: ask our experts for help.

Spiral balance

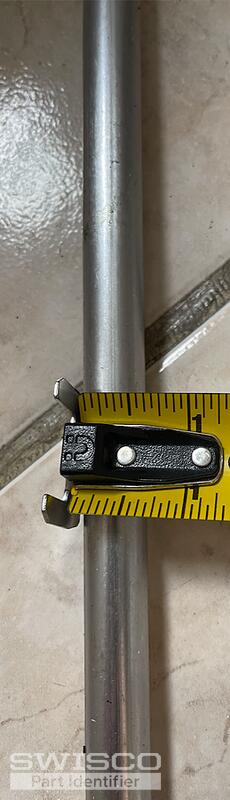

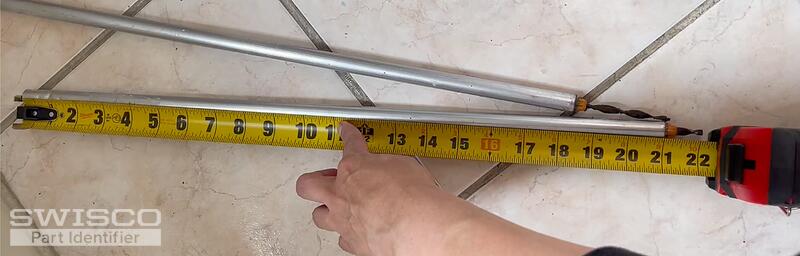

Hello Attached are a few pictures from the window. The problem is, the bottom sash will not stay when open so I’m sure it’s the balance. From the attached pictures, what can you recommend for replacement parts. The tube the spiral is in is 21” long and the shroud is 9/16” i ... (cont.)

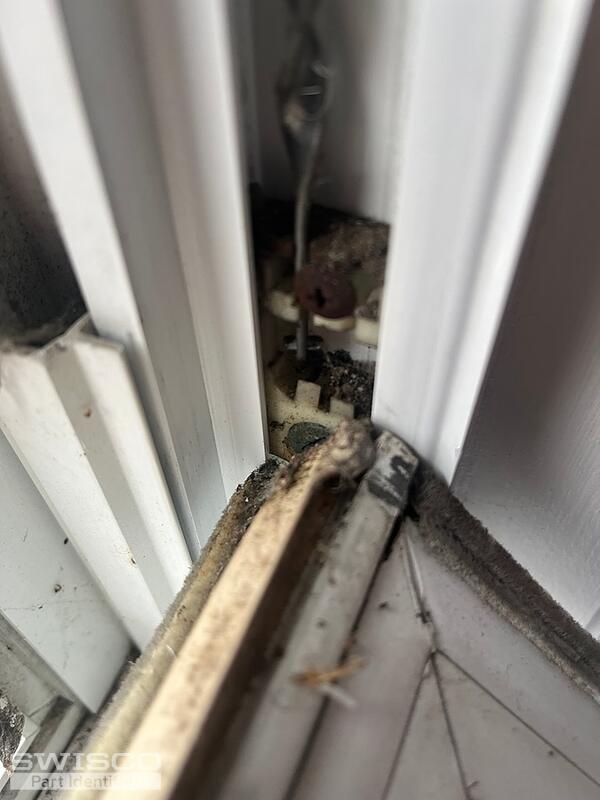

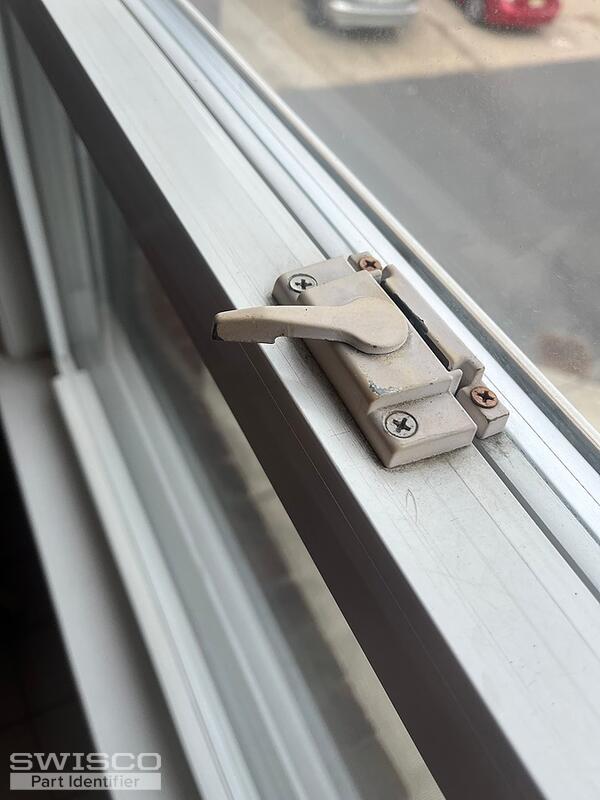

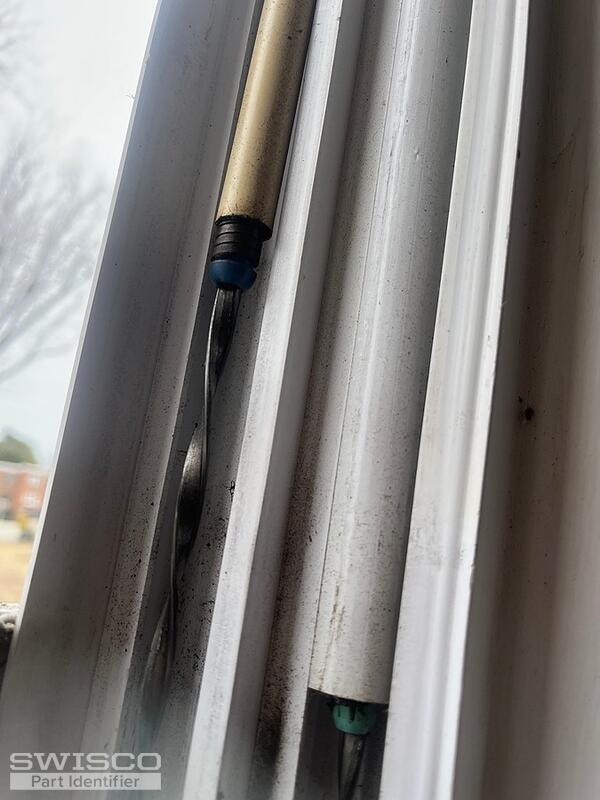

Tilt window replacement parts

Hello,I don't have any writen information for these vinyl tilt replacement windows. I'm looking for help to make sure I order the correct parts, thank you!I'm thinking the balances list below will work the sizes are 21" and 24". The top window color is dark blue, the lower window is a teal color.2 ... (cont.)

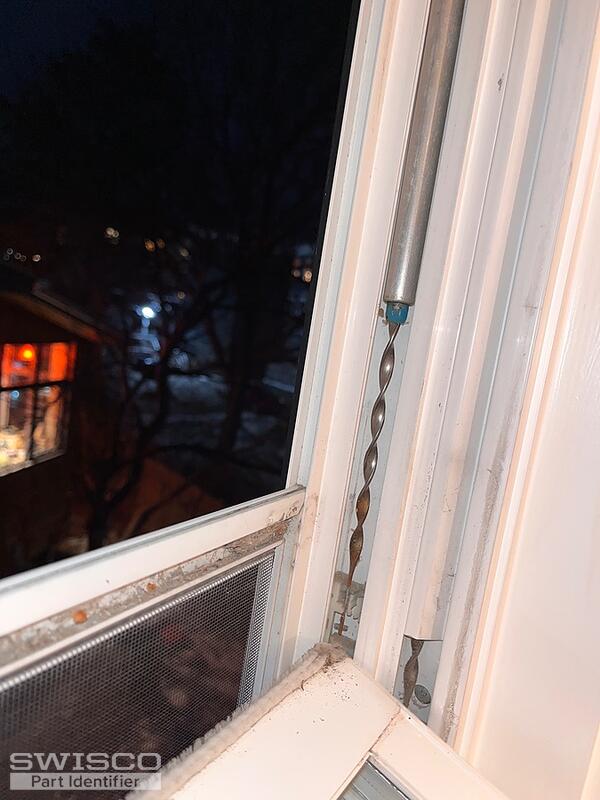

Unknown diameter spiral spring

Hi. This is a photo of a spiral spring for a tilting double hung window. It is 21" long. It seems like the diameter is 1/2". The bottom piece looks blue but is more of a teal green. Might you have a part that could work?

21" Series 600 Spiral Tilt Window Balance pivot bar

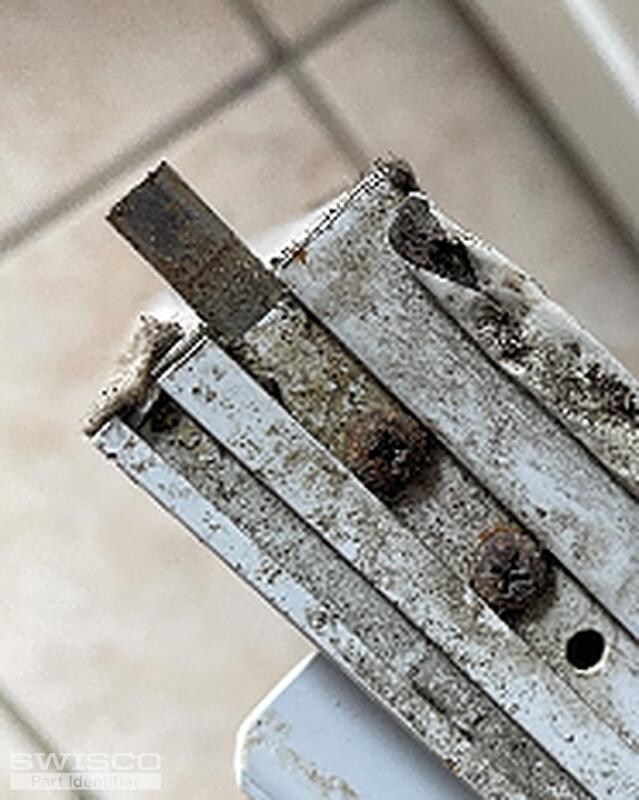

Hi, the photo IMG 5832 is of the bottom of the window part that connects the Spiral balance. This photo is of a pivot bar on a working window. The window in which I need replacements of that bottom connection is rusted out. It seems to be approximately 3" long. Do you know which pivot bar I would or ... (cont.)

bathroom window replacement parts

Hello can you please help confirm part numbers I need to order. Window weighs 7lbs. I need the spiral balances, pivot shoes, the sprial balance charging tool, and maybe some of the weather strips. Can you please give me the part numbers so I can order. thank you for your help!
