24" Series 800 Channel Balance

Product Code: S800-24

24" Series 800 Channel Balance
Main product image of the S800-24 24" Series 800 Channel Balance
How to Identify Replacement Channel Balances
Quantity Price
1-9 $15.40
10-24 $14.63
25-49 $13.86
50-99 $13.09
100+ $12.63
Please Note: Bulk pricing applies only to purchases of the same option
Product Description
This is a Series 800 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 24" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-007 top and 15-018 bottom fittings and will be ready to install out of the box.

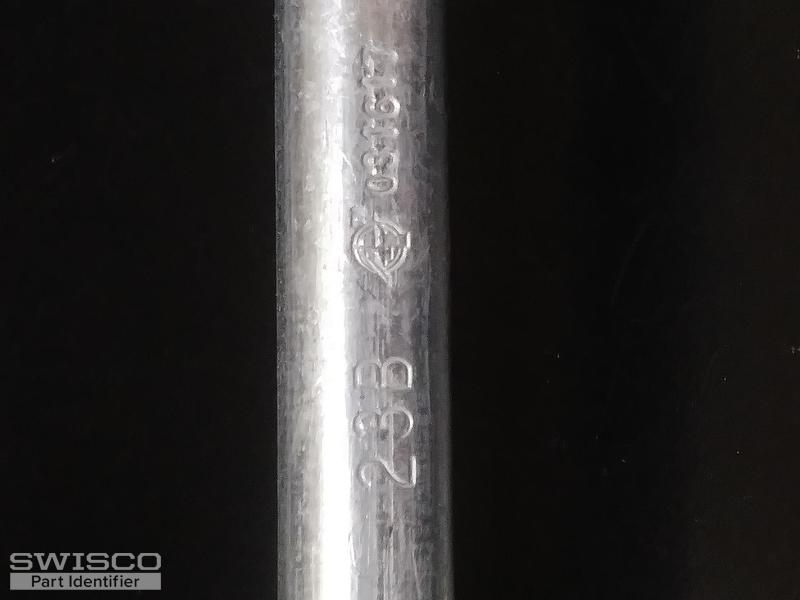

  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 3/8".
  • Can work for either the left or right side of the window interchangeably.
  • Used in windows manufactured by both Binnings and Moss.

  • Stamp Option Sash Weight Range
    23A 4 to 8 lbs
    23B 8 to 13 lbs
    23C 13 to 20 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Customer Questions & Answers
Discussion # Of Replies Last Post Date

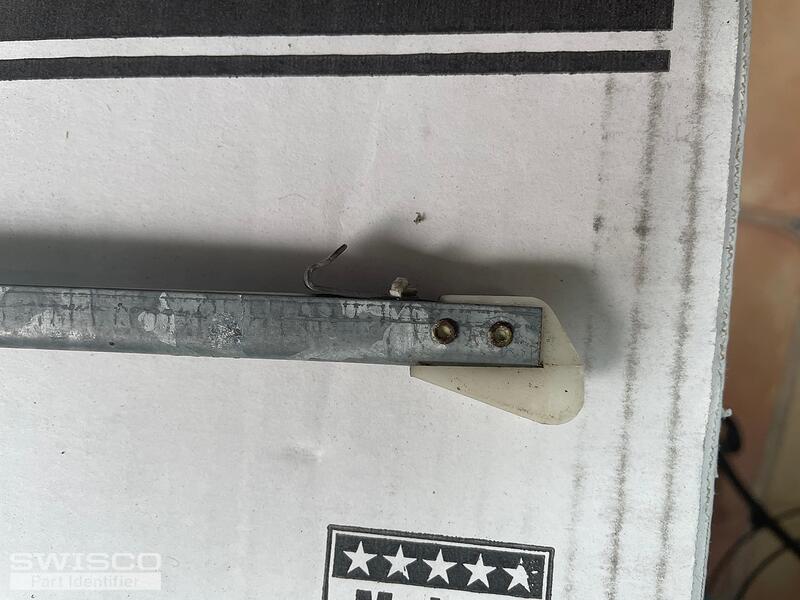

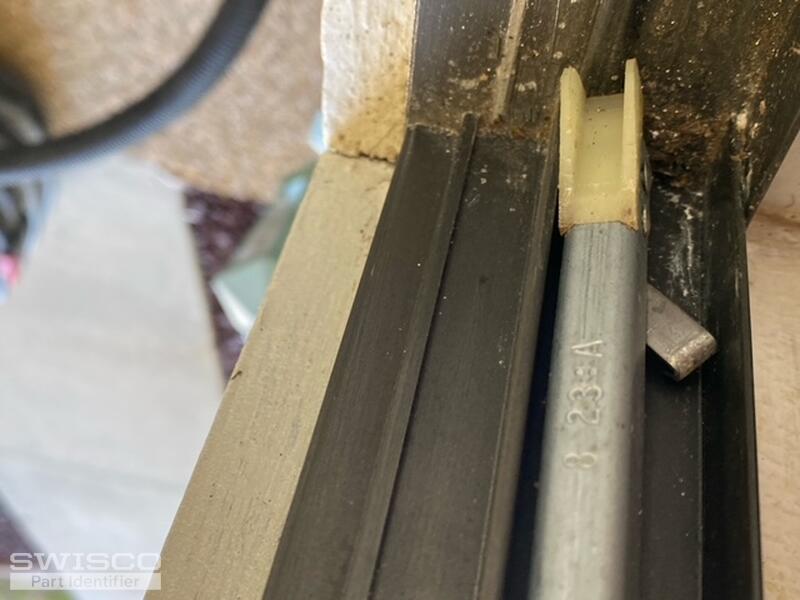

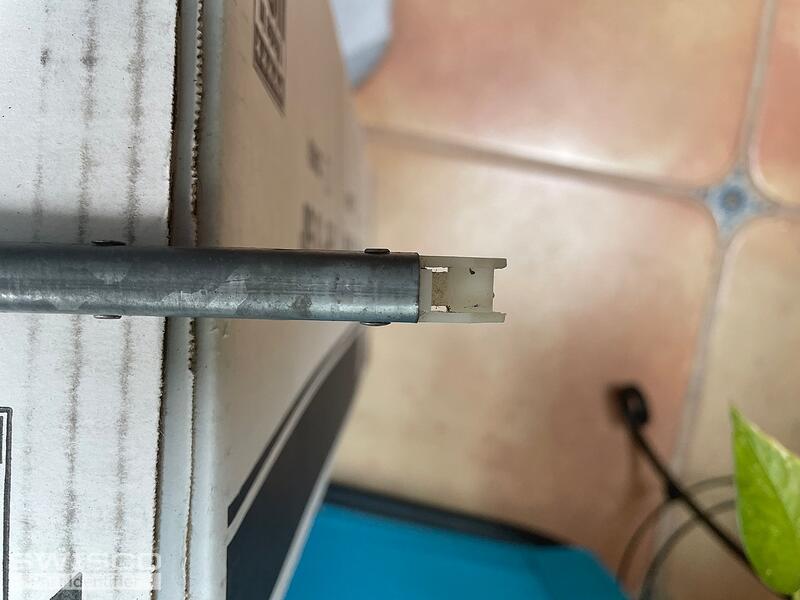

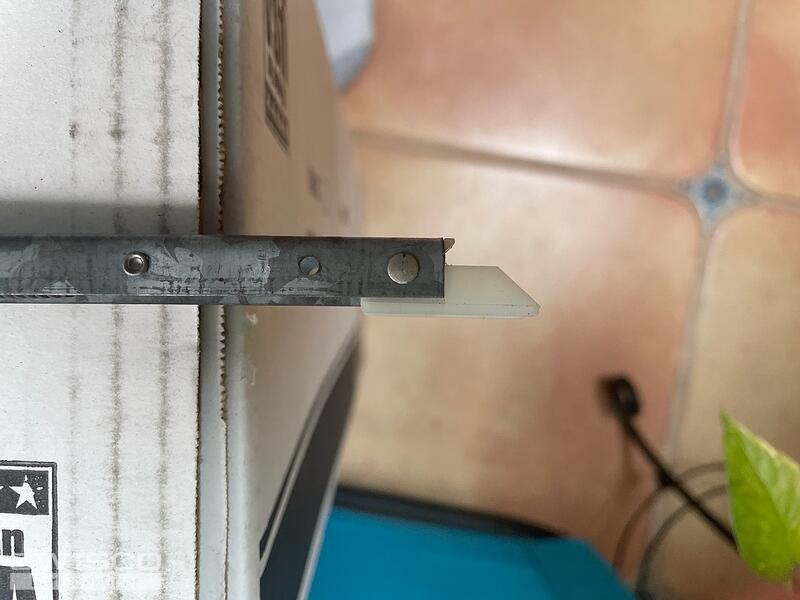

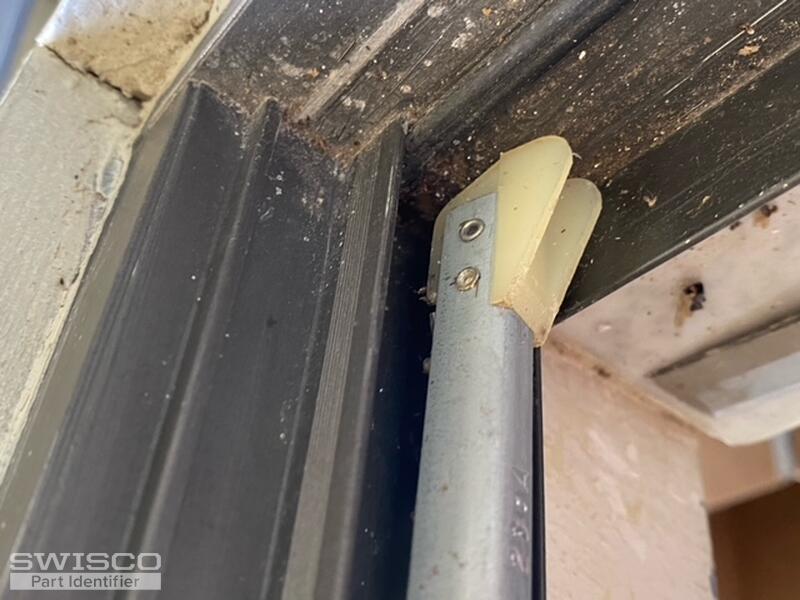

8-23BThis discussion includes image(s). 11 Feb 5, 2021
Identiy the correct top sashThis discussion includes image(s). 2 Oct 24, 2020

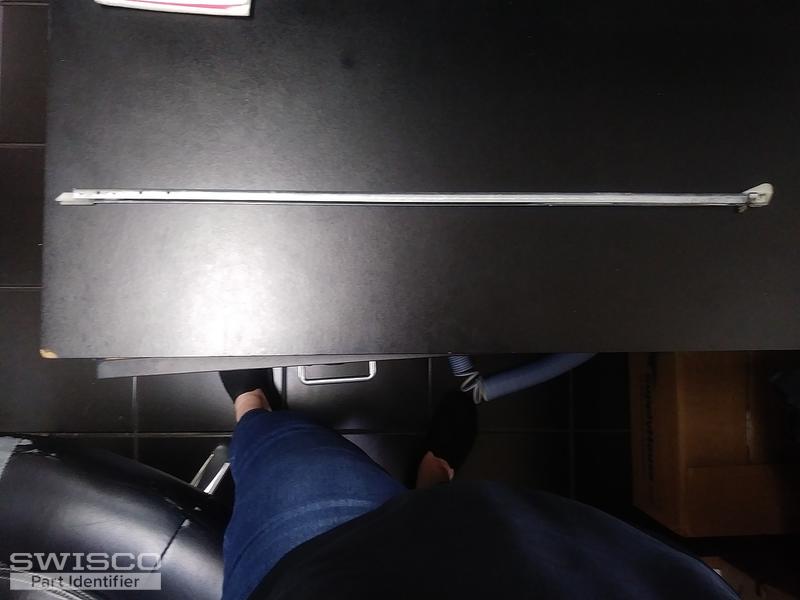

8 23 B window channel balancer 24 inch This discussion includes image(s). 2 Oct 14, 2020
I need a shorter Series 800 Channel Balance than those listed. 2 Mar 8, 2019
harcar window balances 2 sizes 2 Apr 28, 2018
Replacement balances and window top clipThis discussion includes image(s). 4 Dec 22, 2017
Window Balance IdentificationThis discussion includes image(s). 2 Dec 11, 2017
window infoThis discussion includes image(s). 3 Apr 10, 2017
