Product Code: S765-28

28" Series 765 Balance

Name: 28" Series 765 Balance
SKU: S765-28
Price: 15.93 USD
Availability: InStock

$15.93

How to measure the length of the Series 765 channel balance.

Quantity	Price
1-11	$15.93/ea
12-49	$14.34/ea
50-99	$13.54/ea
100-249	$12.74/ea
250+	$11.95/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This is a Series 765 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

This balance has a 28" long metal channel.
Comes fully assembled with a screw clip on top and a pivot shoe hook attached at the bottom and will be ready to install out of the box.
The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
Can work for either the left or right side of the window interchangeably.
Used in American Craftsman and Silver Line vinyl, single hung, new construction windows, as well as Silver Line Series 1200 vinyl, double-hung, replacement windows.

Stamp Option	Sash Weight Range
27-1	10 to 14 lbs
27-3	14 to 19 lbs
27-5	19 to 24 lbs
27-7	24 to 31 lbs
27-9	31 to 34 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

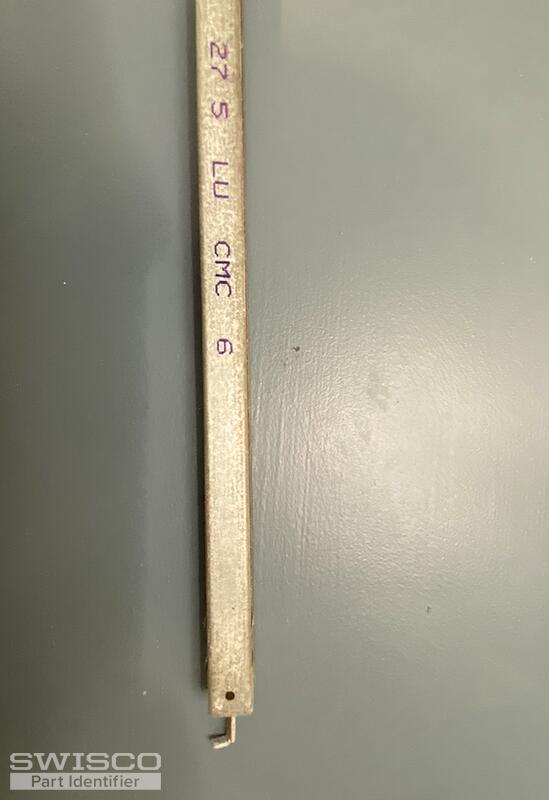

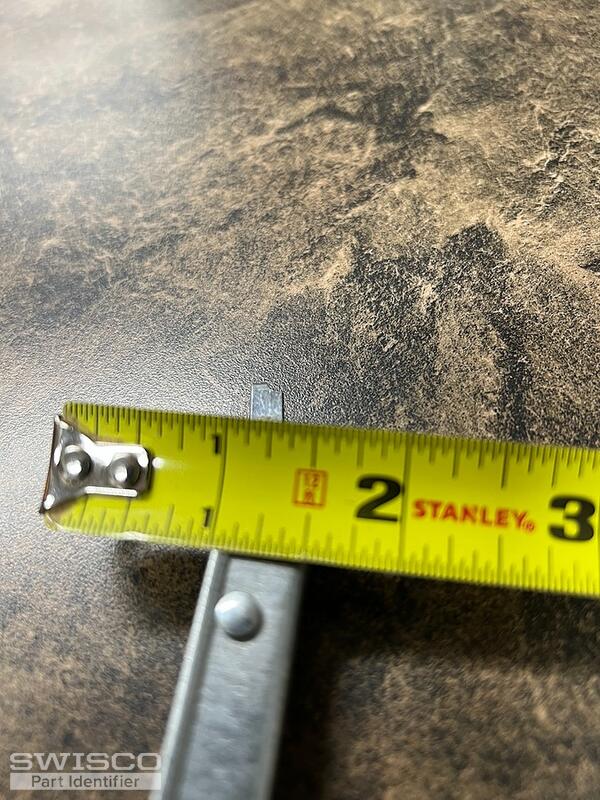

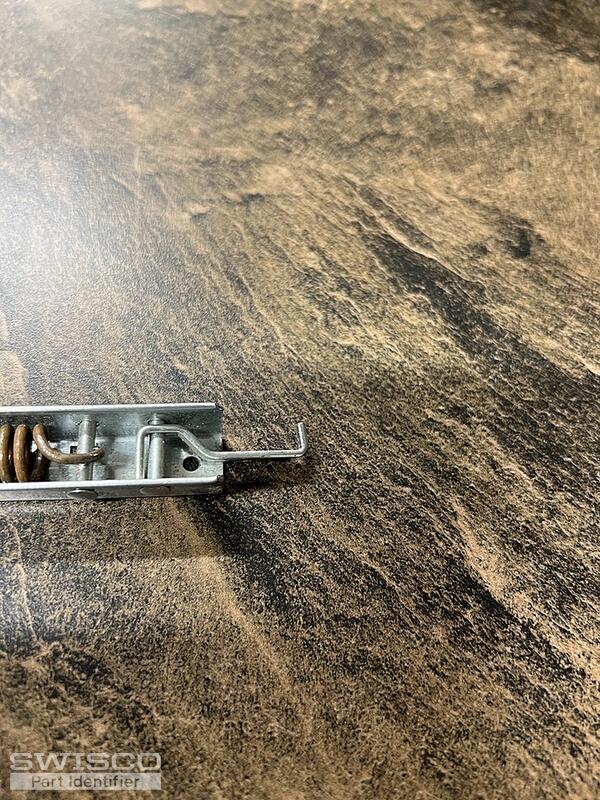

Chanel balance

Can you guys identify and supply replacement?

25yo window parts

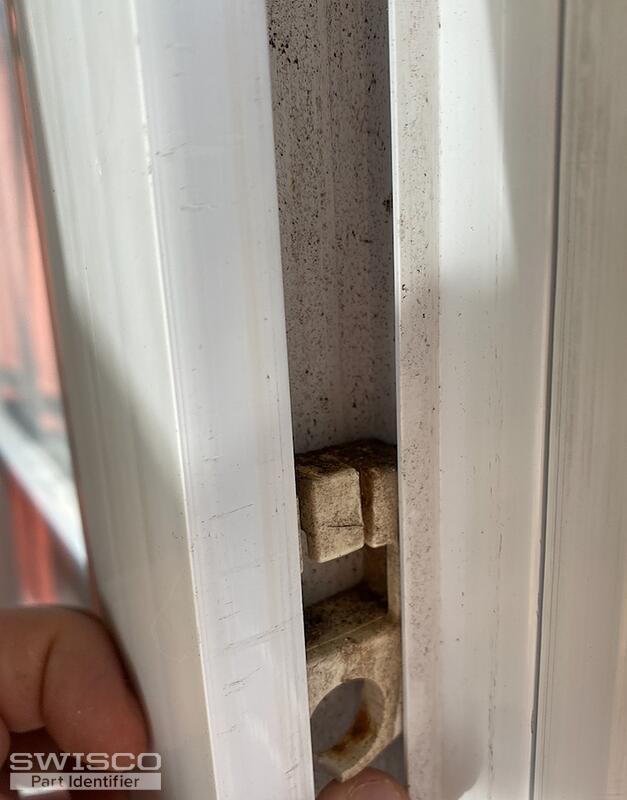

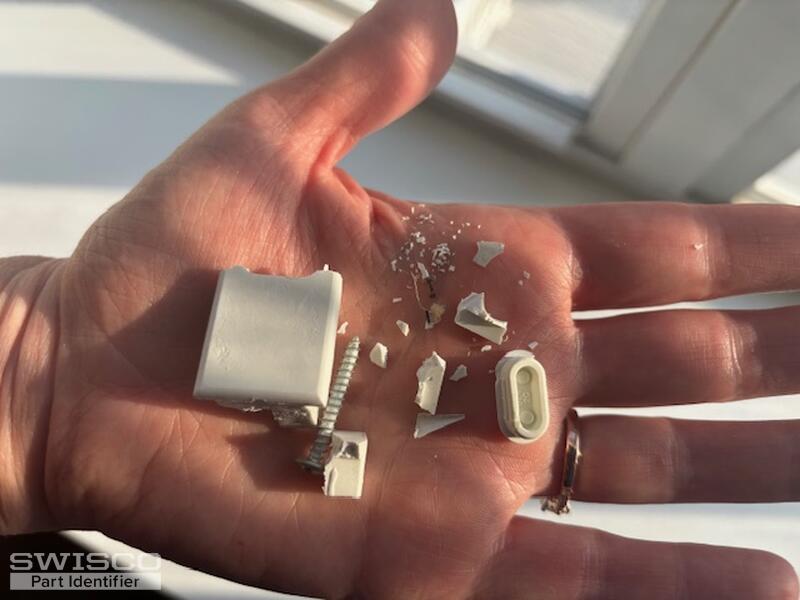

I am almost positive that the balance & balance stop pictured are exactly what I need. I do not see the shoe. Needless to say I am freaking out. Obviously, cannot complete the work without the shoes. I am replacing all seven sets in our home. One snapped this morning. Going to replace all. Bette ... (cont.)

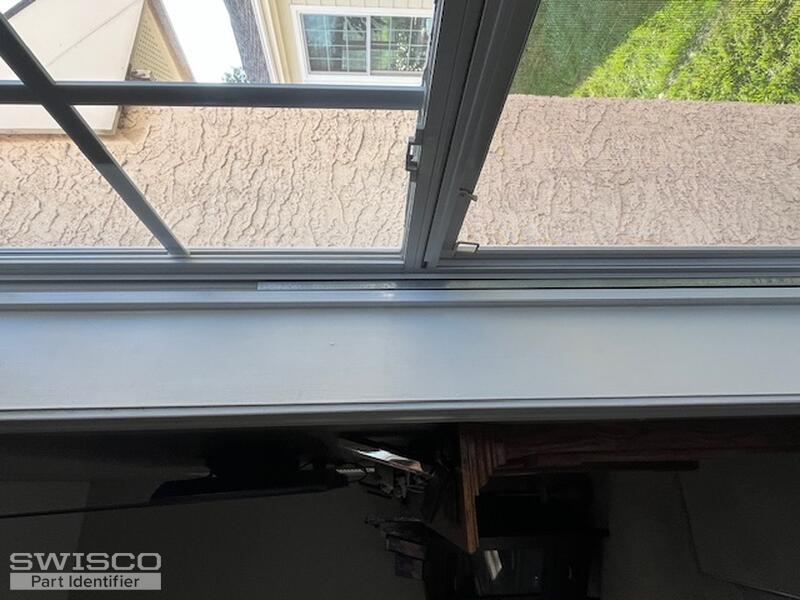

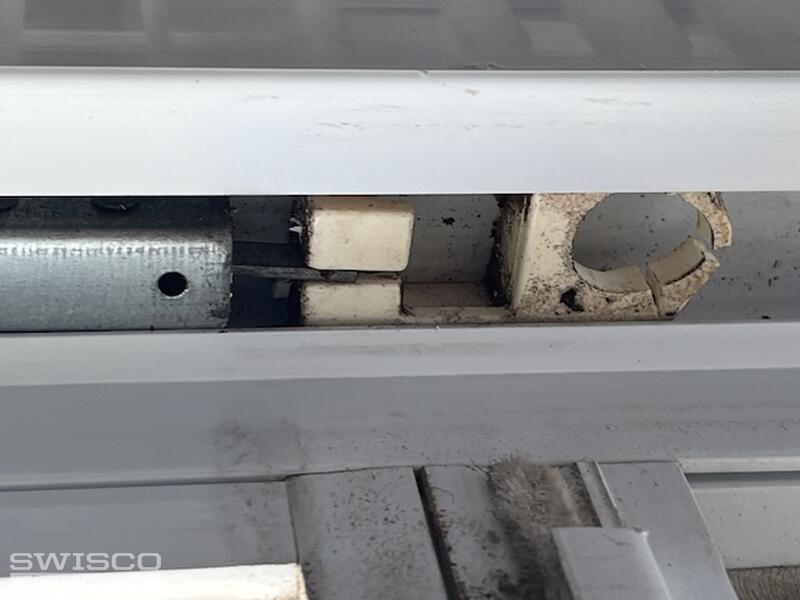

Parts identification

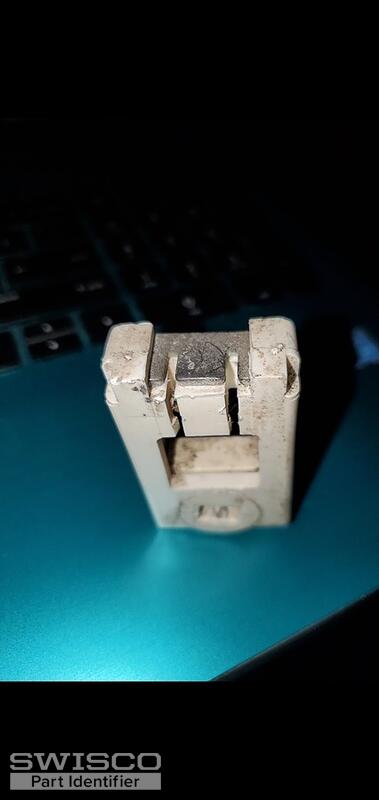

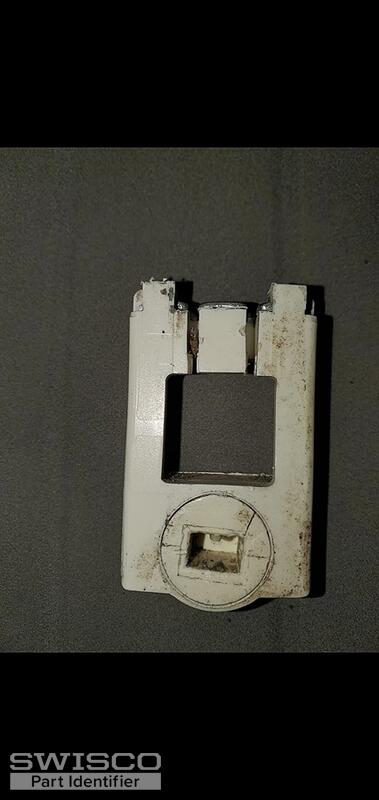

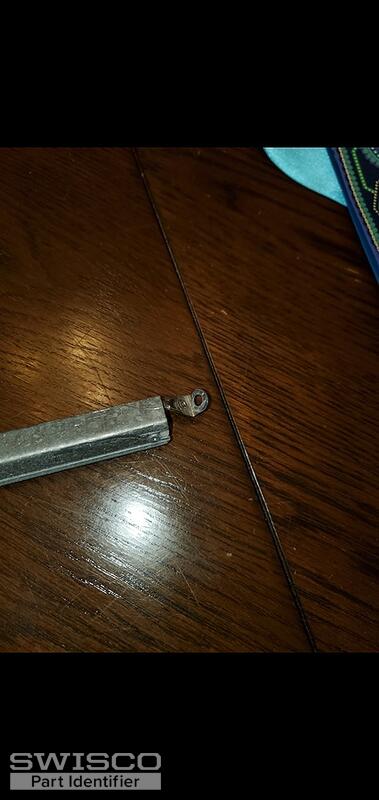

Hi, I am interested in some replacement parts. I do not know what it is called, but I think it is called the balance. I have included 3 pictures from the one needing replaced. thanks,Susan

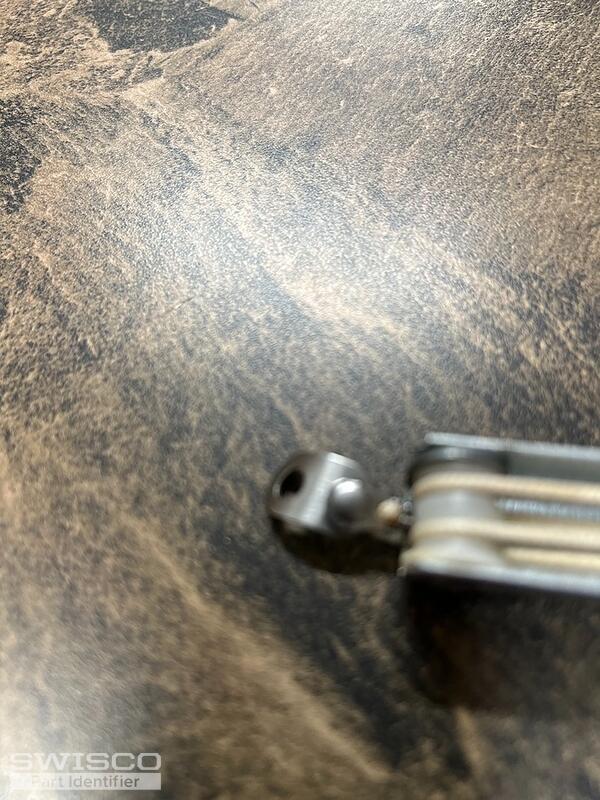

Tilt balance with top cover block

I need to replace the mechanism for both sides of the window. size is 27 5 GV CMC 1.

Custom balance
