Product Code: 39-014

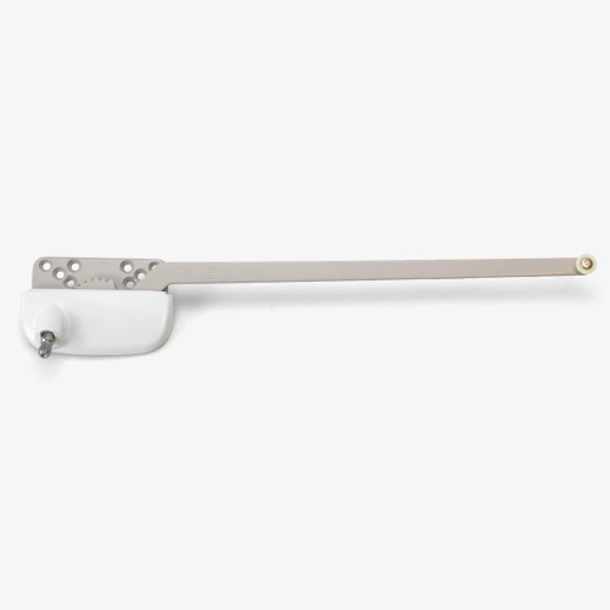

Casement Window Operator, 13-1/2" Arm

$20.70

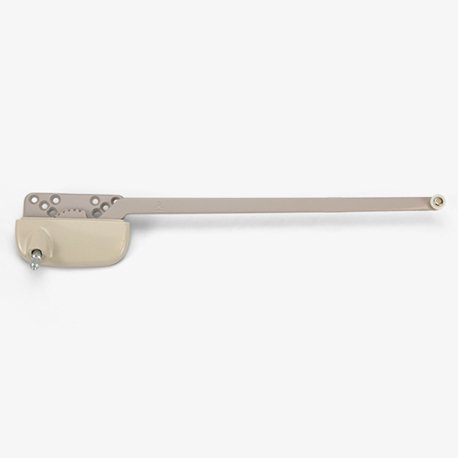

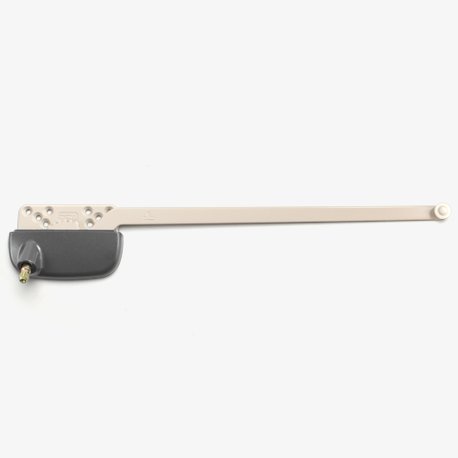

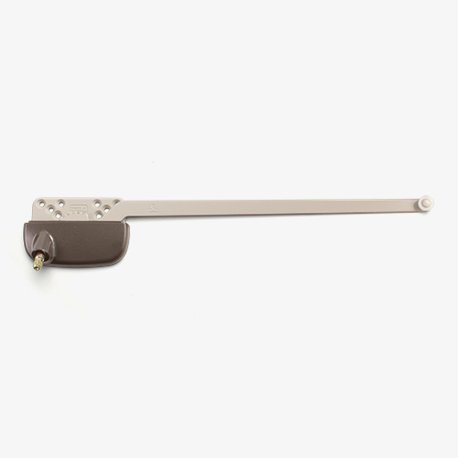

Casement Window Operator, 13-1/2" Arm Image

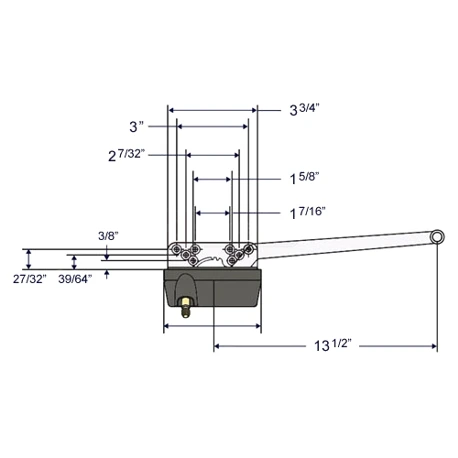

Dimensions for 39-014

Product Description

This is a genuine Truth Hardware sill mount, single arm crank operator. Used to open and close wood, metal, and vinyl casement windows.

See SWISCO product 39-013 for the opposite handed version.
Will provide a full 90 degree window opening.

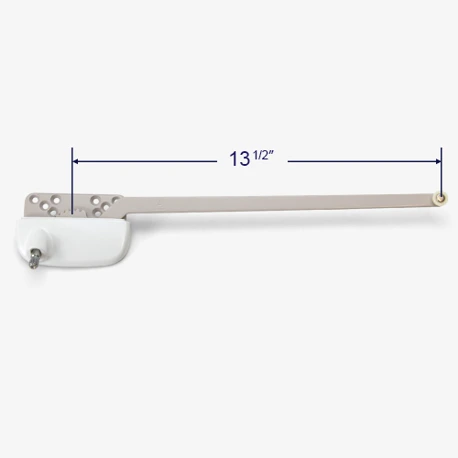

13-1/2" long arm, measured from wheel center to gear center.
11/32" spline; handle sold separately.
Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

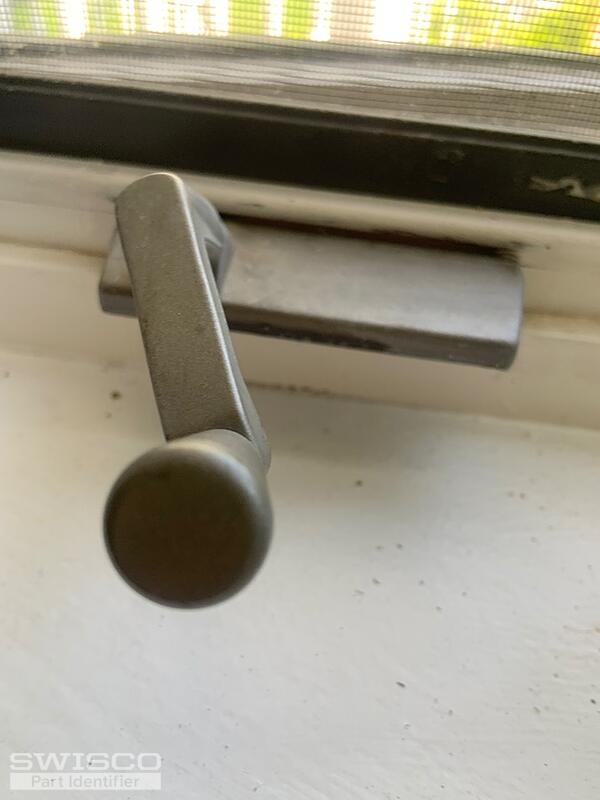

I opened an old casement window that was caulked and painted in. The crank works however the smaller arm that guides the corner of the window is detached, so I think I need a new crank mechanism. The articulation from the top of the window seems to be working fine. The crank that is spin to open ... (cont.)

+3

+2

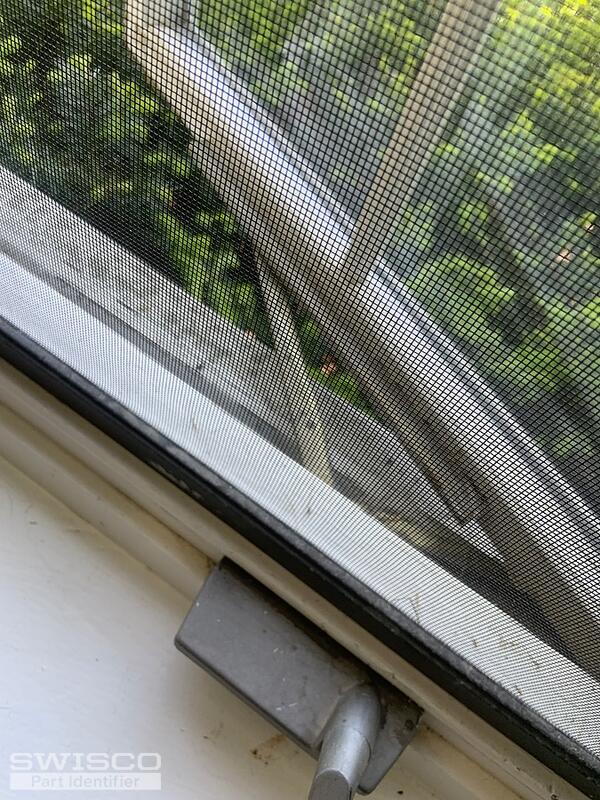

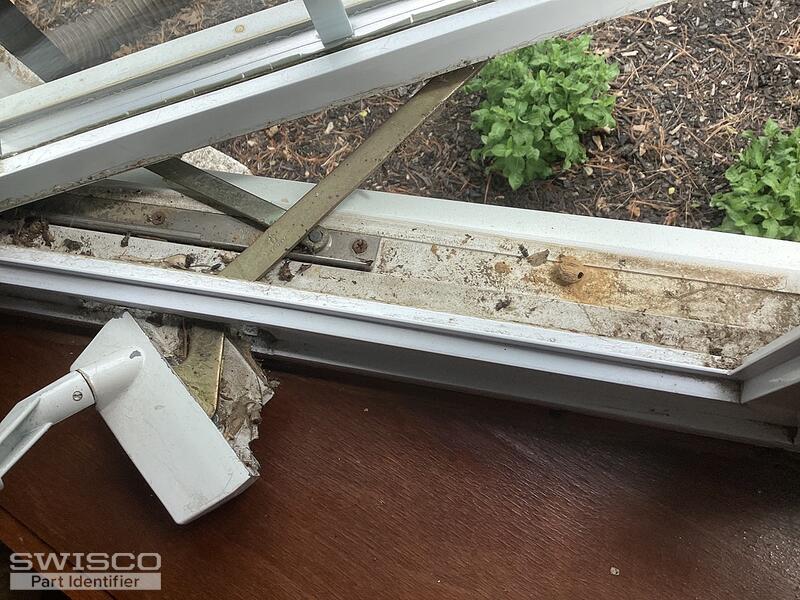

Broken crank window hardware

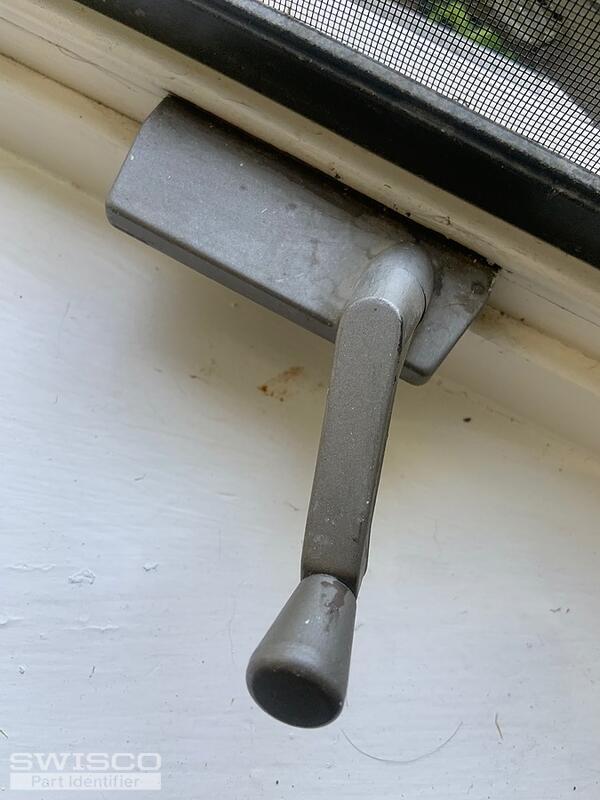

First two picks are the left swinging window. The arm underneath the window has broken off. the second two pics, is the right swinging window. From 1988.

+2

+1

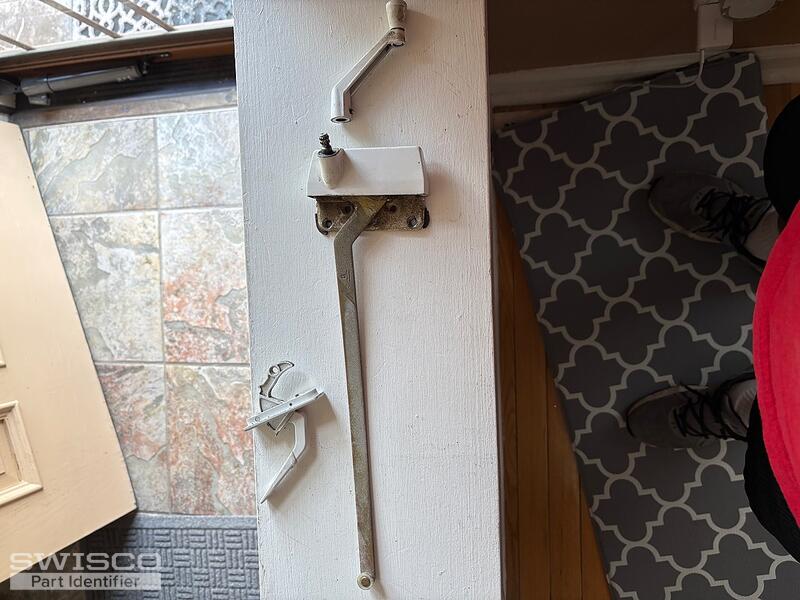

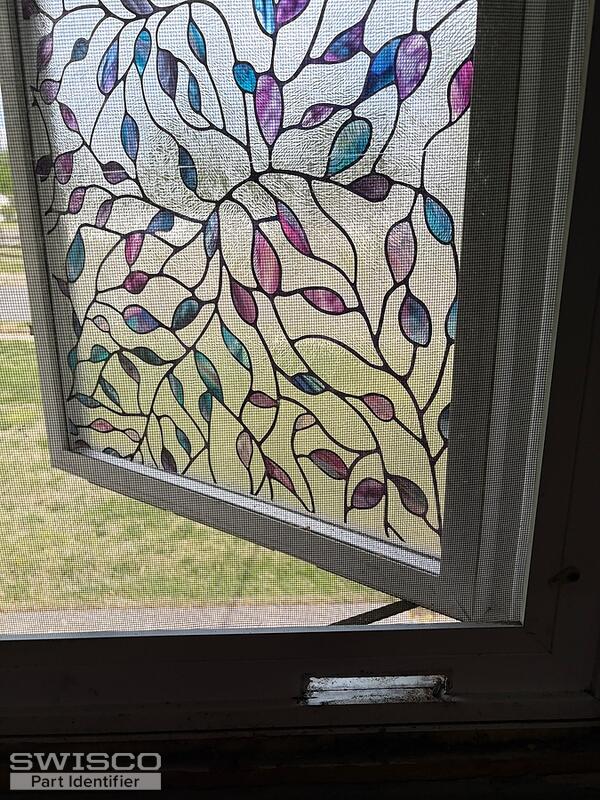

Need window crank for bow window

The crank is 4 inches long and 2 inches wide.The arm is nine inches long.No identifying marks.Will need one for left and one for right window.ThanksFrank

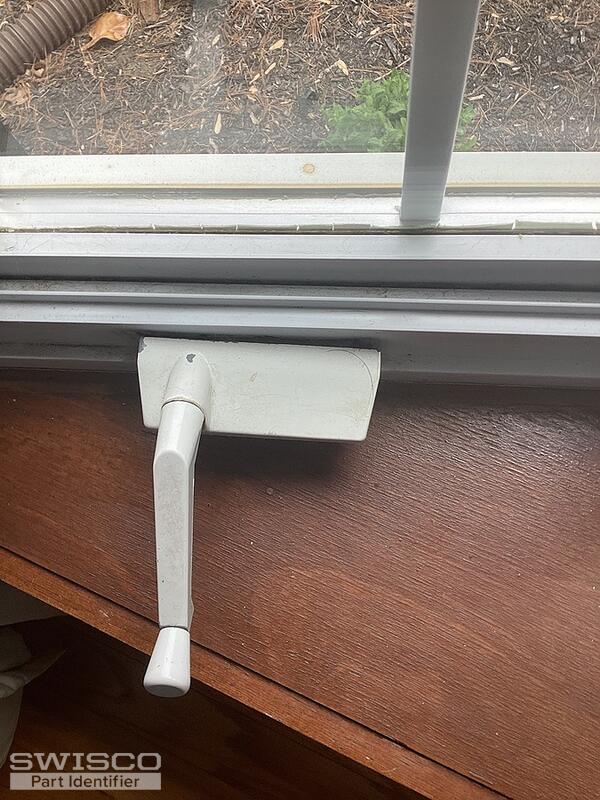

Window with crank and lock

The length on the crank part looks to be about 13 inches from inside the crank the crank itself is 4 inches to fit back in the window

Woodco Casement Operator

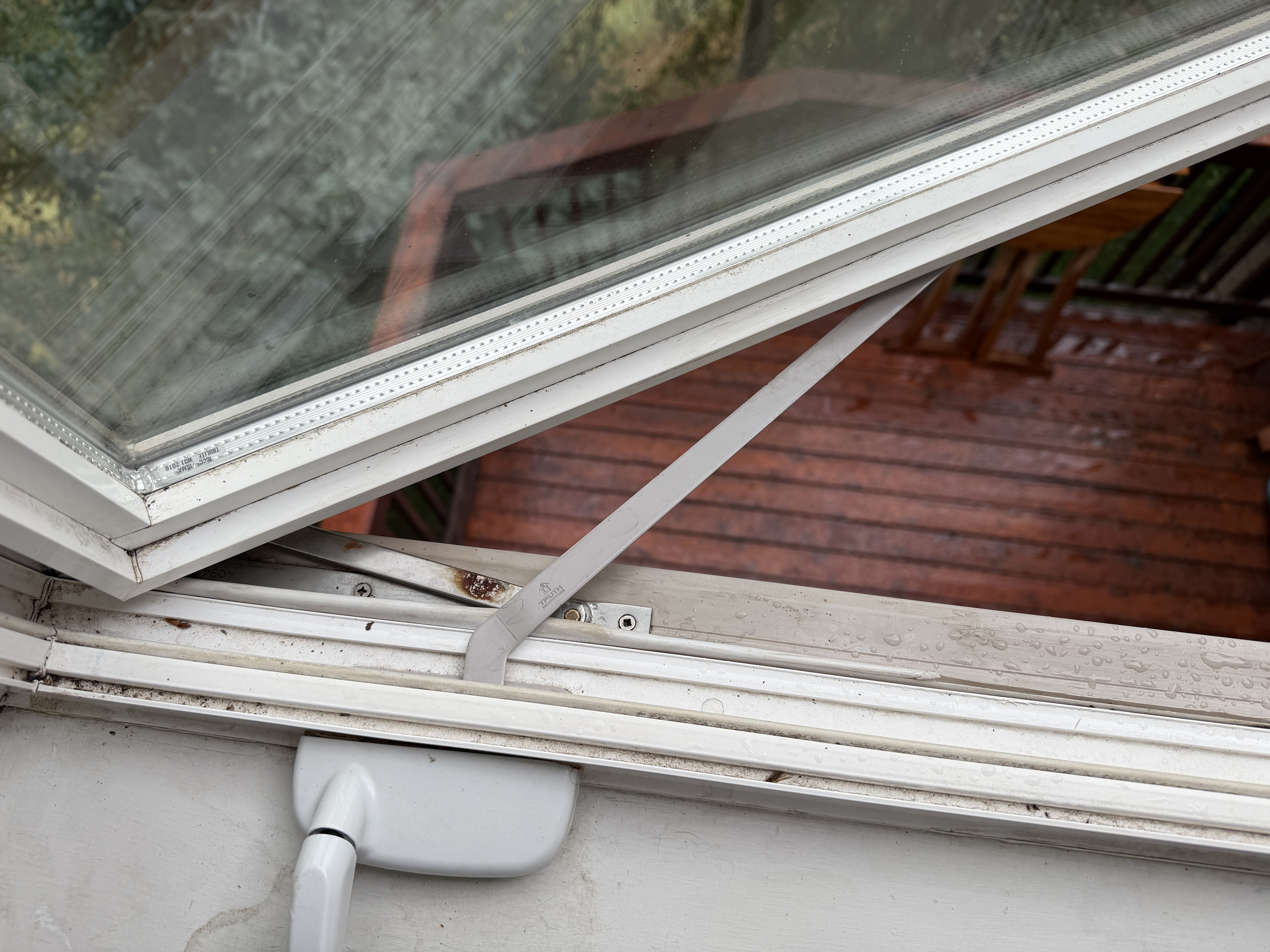

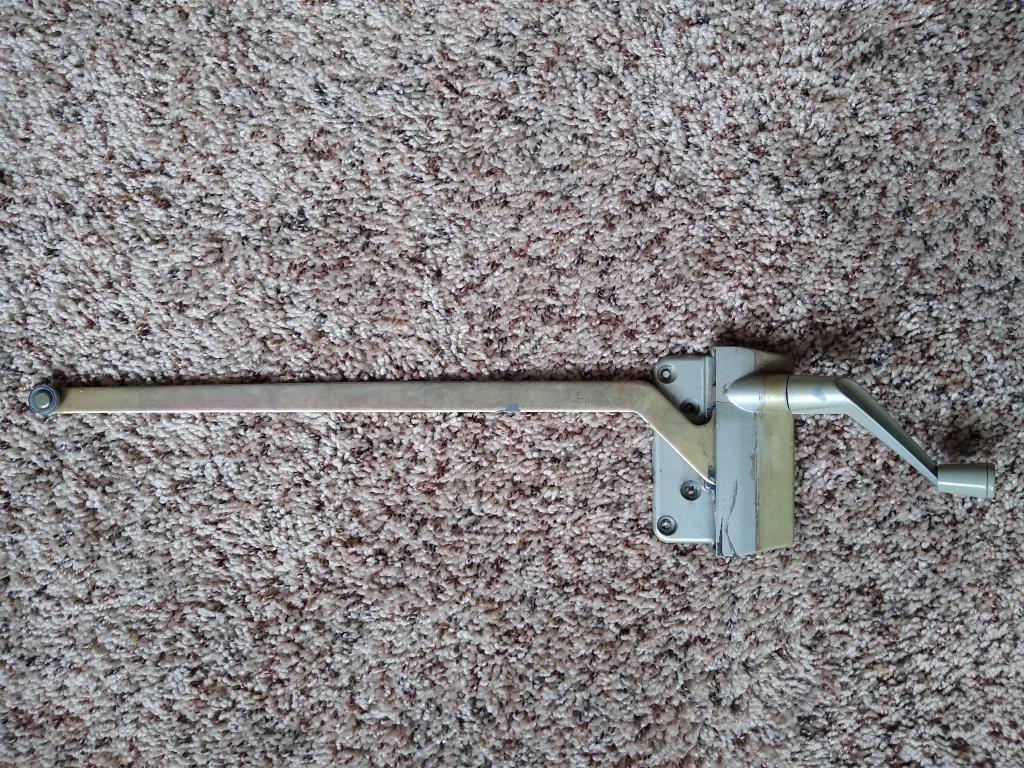

This is a Woodco casement operator (see photos & diagram). The dimensions are as follows: Arm length: 11" Length: 4" Length at bottom: 3 3/4" Height: 2 3/4" Distance between top two screws: 3" It has a nylon roller. There are four screw holes. I need the operator with the arm that goes ... (cont.)
