Series 395 Channel Balances

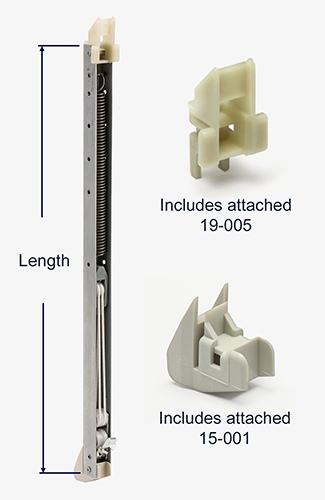

Series 395 Sideload Channel Balance Sash Support System (also known as a block and tackle balance) for non-tilt windows. The metal channel’s width is 9/16”, which is considered 1/2" in the trade. A spring and pulley system, which raises and lowers the sash, is housed inside the channel. The Series 395 arrives with an attached, winged 19-005 top and non-winged 15-001 bottom fitting known as a shoe. The width of the 19-005 top guide from wing tip to wing tip is 15/16”. The 15-001 shoe is 1-1/8” deep.
Series 395 Channel Balances
Choose a balance below
13" 14" 15" 16" 17"
18" 19" 20" 21" 22"
23" 24" 25" 26" 27"
28" 29" 30" 31" 32"
33" 34" 35" 36" 37"
38" 39" 40"
click here for lengths over 40"
