Series 795 Channel Balances

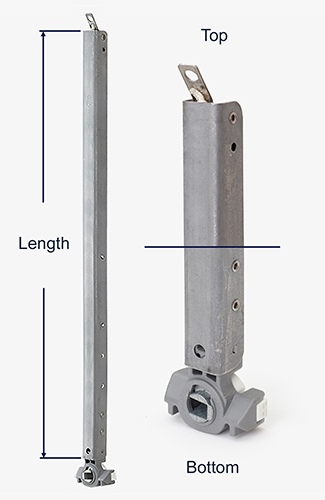

This is the SWISCO Series 795 Channel Balance Sash Support System (also known as a block and tackle balance) for tilt windows. When determining length, only measure the metal channel; do not include the fittings in this measurement. Used in windows manufactured by International as well as others.

The metal channel's width is 9/16", but is considered 1/2" in the trade. It houses a spring and pulley system to raise and lower the sash and comes fully assembled with a 19-043 screw-in clip on top and a 15-195 T-Lock Balance bottom fitting, known as a shoe, which measures 1-1/4" wide.
Series 795 Channel Balances
Choose a balance below
10" 11" 12" 13" 14"
15" 16" 17" 18" 19"
20" 21" 22" 23" 24"
25" 26" 27" 28" 29"
30" 31" 32" 33" 34"
35" 36" 37" 38" 39"
40"
click here for lengths over 40"
