2 Leigh metal bi-fold doors on furnace area

Start a new Discussion

Quick Learner

Jan 2, 2024 8:53 am

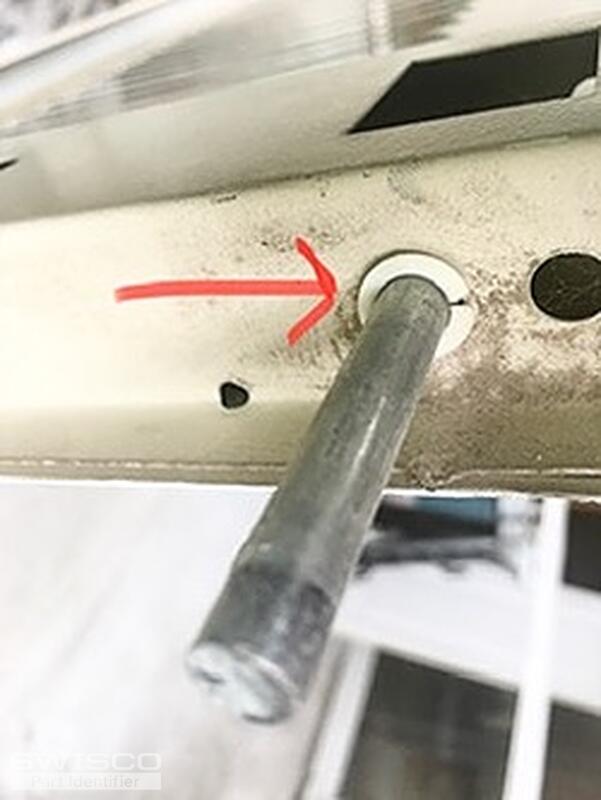

plastic guide runners are broken on top track and bottom track, do you carry?

5 user uploaded images

4 Replies

Paul from SWISCO

Jan 2, 2024 1:48 pm

Hello,

The nylon guide you are looking for would be the 21-108. The twisted metal is probably something like our 21-158 cotter pin. Depending on the diameter of the pin, you'll either need the 21-151 (5/16") or the 21-150, (1/4") nylinder. Take a look and compare the specifications of these parts to yours.

Quick Learner

Jan 2, 2024 7:36 pm

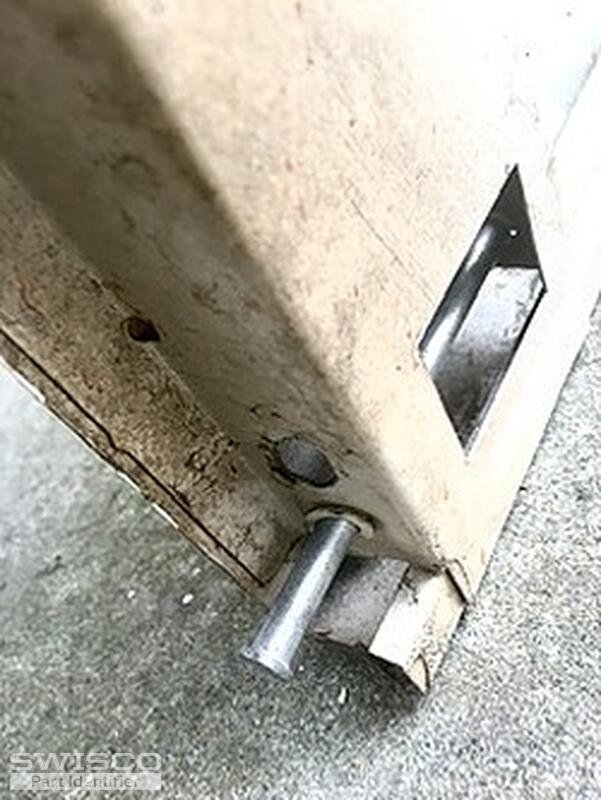

Doesn't look like a Cotter pin and bends easy, guessing it wrapped around bottom pin to stop it from dropping straight through the hole it's in, just guessing

Paul from SWISCO

Jan 3, 2024 2:12 pm

I believe the former owners used a light wire to lock the pin. There should be a hole in the pin for the cotter pin. If not, we have lock on push nuts such as the 21-155 for a 1/4" pin and the 21-156 for a 5/16" pin.
