1/2" thick pivot shoe (2)

Start a new Discussion

Quick Learner from Laguna Vista,Texas

Apr 26, 2018 6:27 pm

1/2" thick , 13/8" wide, 2" long to top of arch, the only number I can find is a number 2 in the middle of the part

3 user uploaded images

4 Replies

Tom from SWISCO

Apr 27, 2018 11:37 am

Hi there!

Please compare our 15-135, 1-1/4" wide by 1/2" thick to yours. It does look a little different, but works on the same principle. We would like to see your sash pivot bar to make sure it will fit our pivot shoe.

Thanks!

Quick Learner

Apr 27, 2018 1:34 pm

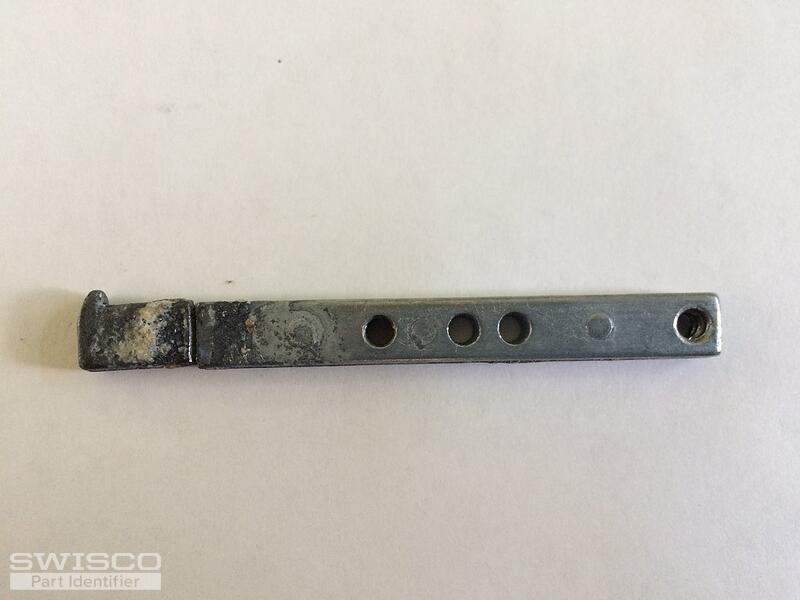

pivot pin meas. 3" long, 5/16"wide, 3/16" thick. note the hook on the end. it goes with pivot shoe shown in the additional pivot shoe that in the photo, the pivot shoe was submitted earlier need two pivot pins plus two shoes. asap, thank you. Tom has replied earlier, requesting the photo of the pivot shoe 15-165 hope this is clear

1 user uploaded image

Paul from SWISCO

May 1, 2018 1:00 pm

Thank you! Yes, I think our 15-135 should work well with your pivot bar. I am confident in my recommendation.
