2 bypass 4' mirror closet doors

Contractor from St Peters MO

Sep 7, 2018 10:25 am

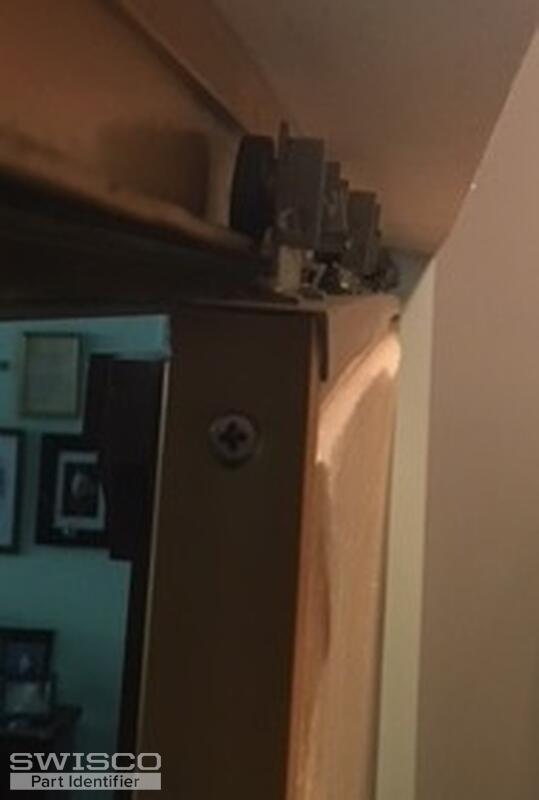

Need to replace track and rollers on 2 bypass 4' mirror doors with no floor track. Appears the 23-247 door track will work but not sure which rollers since existing mounted on top and yours mount from side. Doors are 1" in width.

4 user uploaded images

4 Replies

Paul from SWISCO

Sep 17, 2018 8:40 am

I'm afraid this roller is no longer being made by the manufacturer, and they have never made a substitute for it. The only thing we have that may work is actually a shower door roller, but you may need to re-use your old wheel. You can do this by drilling out the wheel from the old and new rollers, then installing the old wheel on the new 10-109 with a 33-087 screw. See what you think.

Contractor from St Peters MO

Sep 17, 2018 12:32 pm

Rollers aren't the problem it's the track. Track has bad spot and door rollers come off track. Rollers are fine.

Can I replace with your track and your rollers was my question.

Sorry for confusion or am I confused on your answer?

Paul from SWISCO

Sep 18, 2018 8:37 am

Ohhh, I see. No, I'm the one who was confused. You had already said that the 23-247 will work for you (and I agree), so I thought you just wanted to replace the roller.

We have a ton of rollers that are compatible with the 23-247 track, but I don't know if they'll work on your door. If your door was designed to work with the roller you have now then I don't know how you'd be able to install anything else. You may be stuck with the style you have.
