To whom it may concern,
I have a few windows that require one channel with a balance clip, 3 pairs of balance shoes, and 2 pairs of Tilt window latches. I have sent pictures to help identify the parts I require. I am not sure what part number the tilt window latches are and if the shoes are open or close cam. Thank you for your help.
V/r,
Steve
27 Series 795 Channel Balance
Handy Person from 31324
Dec 5, 2019 8:06 pm
5 user uploaded images
4 Replies
Bob from SWISCO
Dec 6, 2019 2:28 pm

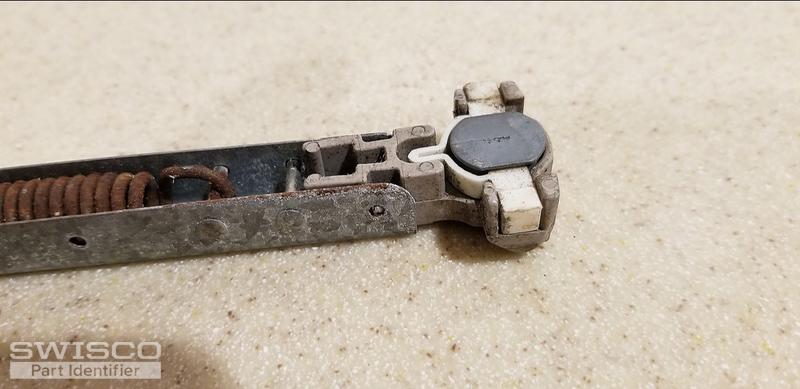

Hi Steve. This looks like a S795-27 with a closed-cam shoe 1-1/4" shoe, meaning the shoe that comes by default with our Series 795 should work for you. Now, one point of concern is that it appears your balance attaches to the window track with a hook like our 15-198; our standard Series 795 balances have a scew-in tab instead. Can you show us a picture of the slot in the wall that the hook attaches to? That will determine the best course of action. As far as your tilt latches go, can you remove one from the window and show it to us from multiple angles? that would help narrow down what you need. Many thanks.
Handy Person from 31324
Dec 9, 2019 2:01 pm
Hello, Bob.

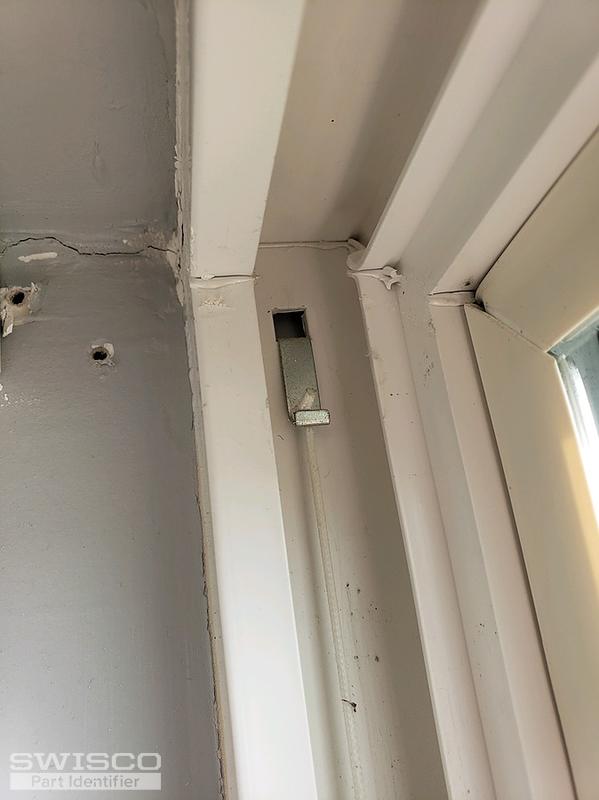

Here are the photos you requested. they are not of the exact window, but they have the hook facing the frame of the window.
V/r,
Steve
Here
Here are the photos you requested. they are not of the exact window, but they have the hook facing the frame of the window.
V/r,
Steve
Here
2 user uploaded images
Bob from SWISCO
Dec 9, 2019 2:41 pm

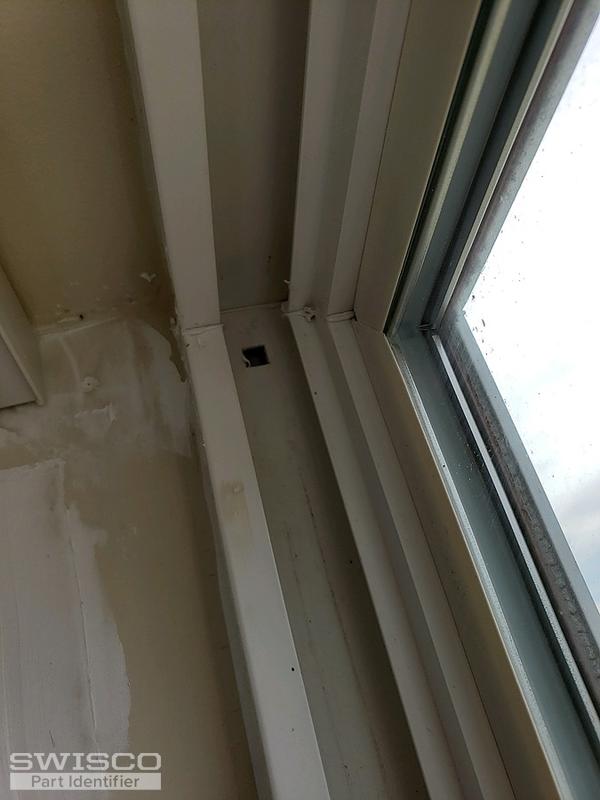

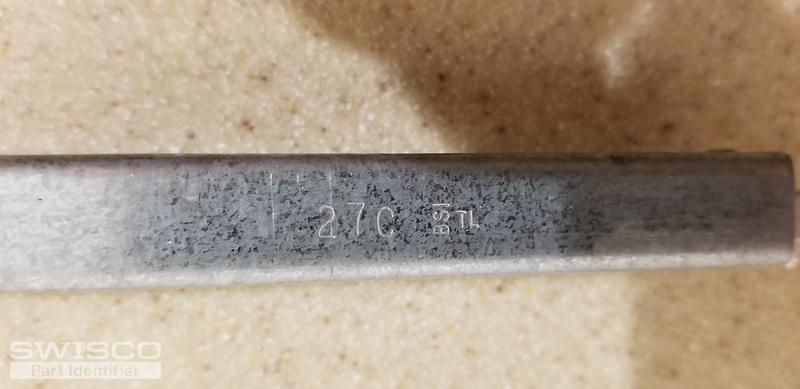

Hi Steve. Thanks for getting back to me. If the shape of the whole that accepts the hook is square-shaped, you won't need custom balances. Instead, you can use the 26-200 Screw Plug to install the screw tab on our standard S795-27. You'll need a stamp option of 27C. Let me know if this can work for you.
