27" side spring for right side of a sash

Handy Person from Newcastle, WA

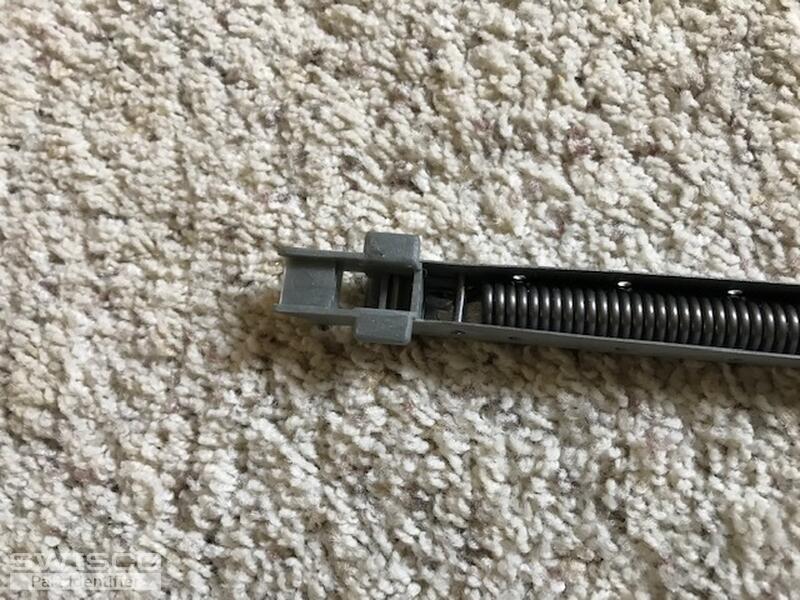

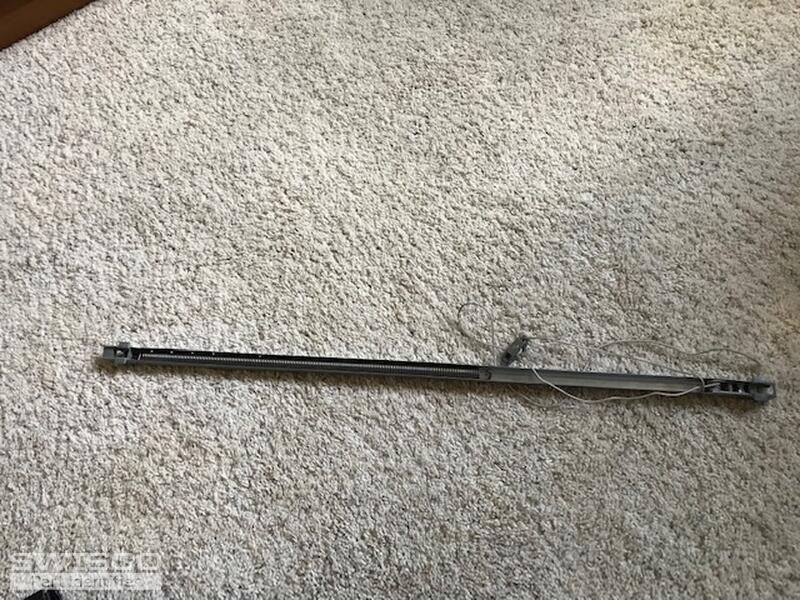

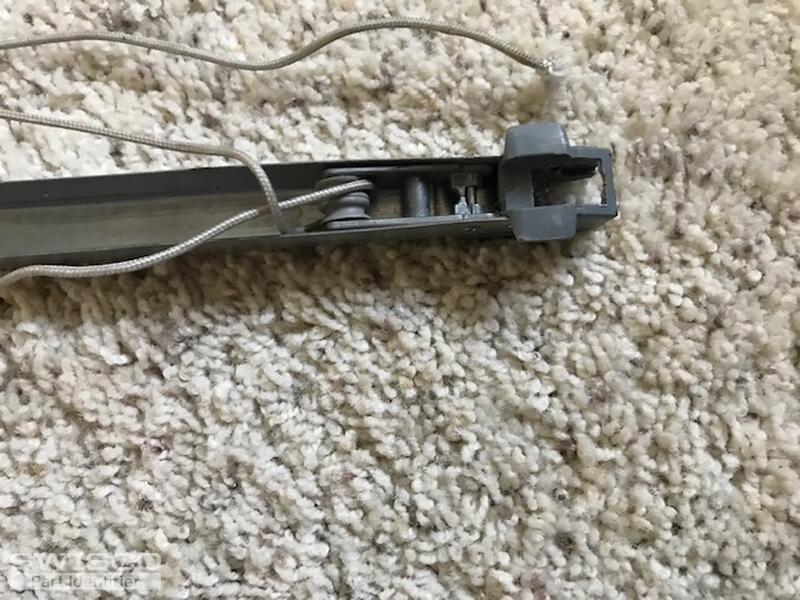

I also need a sash take out clip for the right side. See attached pictures.

I should be in your system.

Thank you

Steve

5 user uploaded images
5 Replies
Handy Person from Newcastle, WA

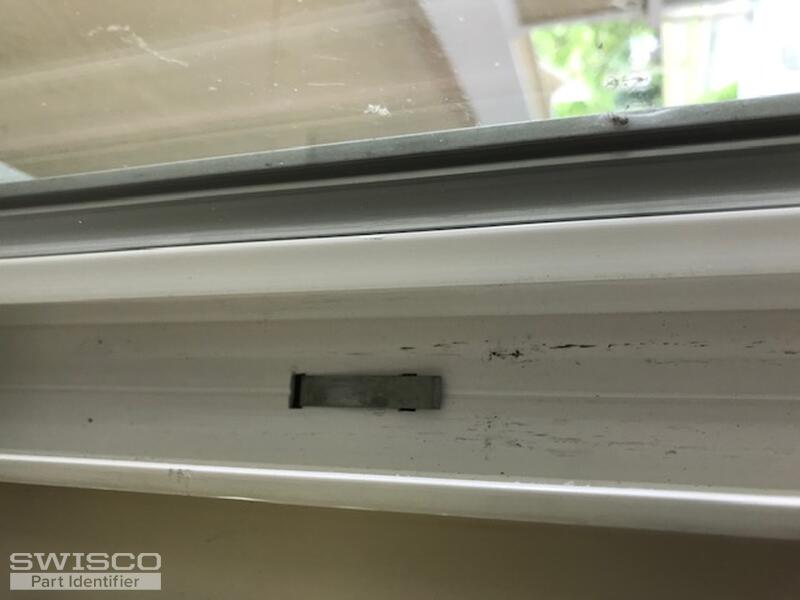

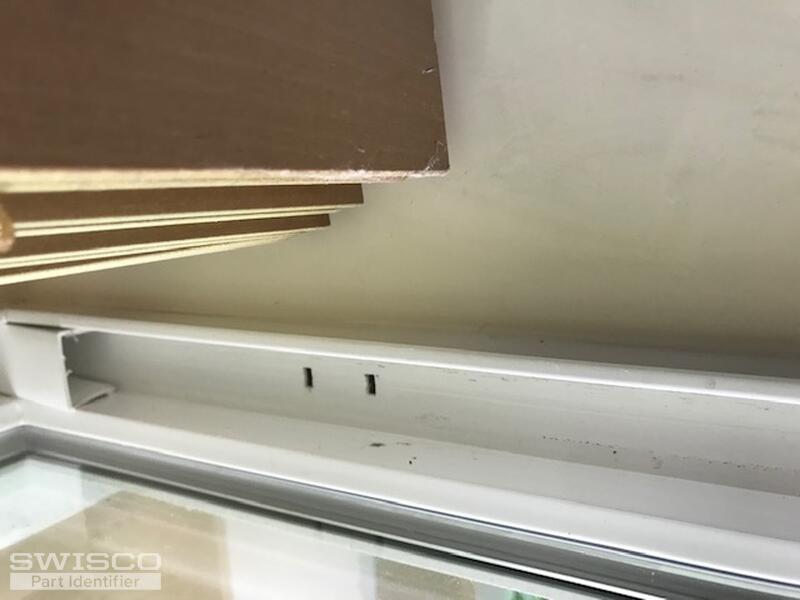

These pictures show a removal clip missing on one side. I need a removal clip as well. :)

Thank you
Steve
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Hello, Steve. We can definitely get this balance for you but it has to be a custom order. What you have here is an "extended travel" type balance that isn't a stock product. Your photos are very helpful in allowing us to narrow down the list of options, but there are a few more details I'll need.

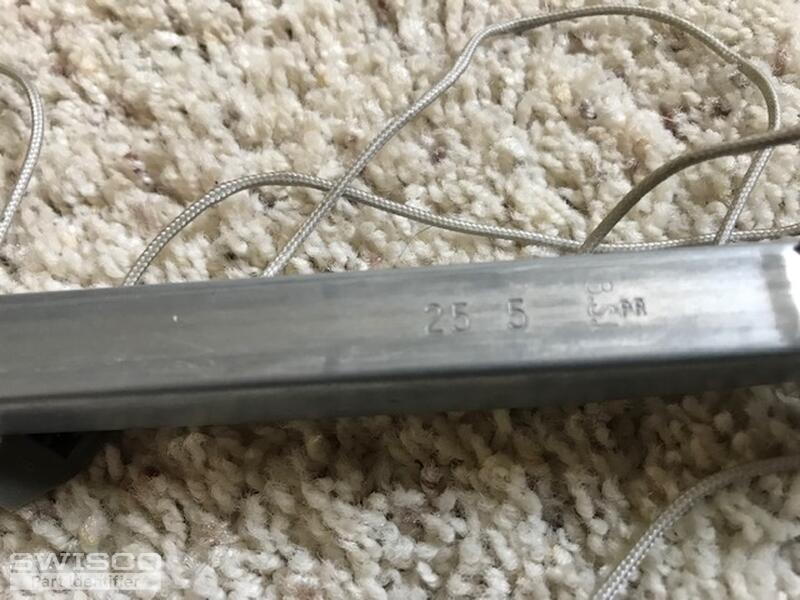

First, can you confirm the length of the metal channel? Based on your stamp of 25-5, the metal channel should be 25-5/8" long. Make sure that you don't include the nylon fittings in this measurement; you only want to measure the metal channel.

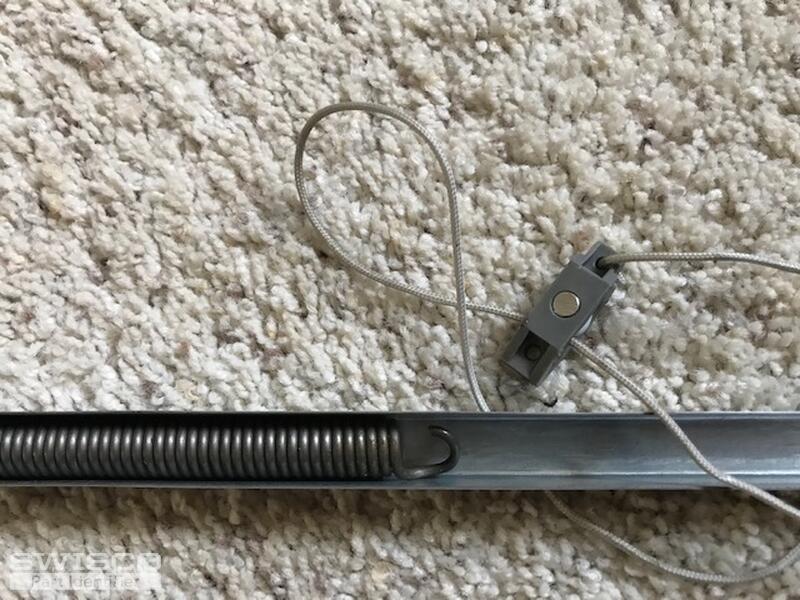

Next, there should have been a metal hook at the end of the cord, but yours appears to be missing. Do you have another balance that matches this that still might have its hook? We will definitely need to see it before we can recommend a replacement.

Finally, how many of these did you need?

Handy Person from Newcastle, WA

Hello Tom!

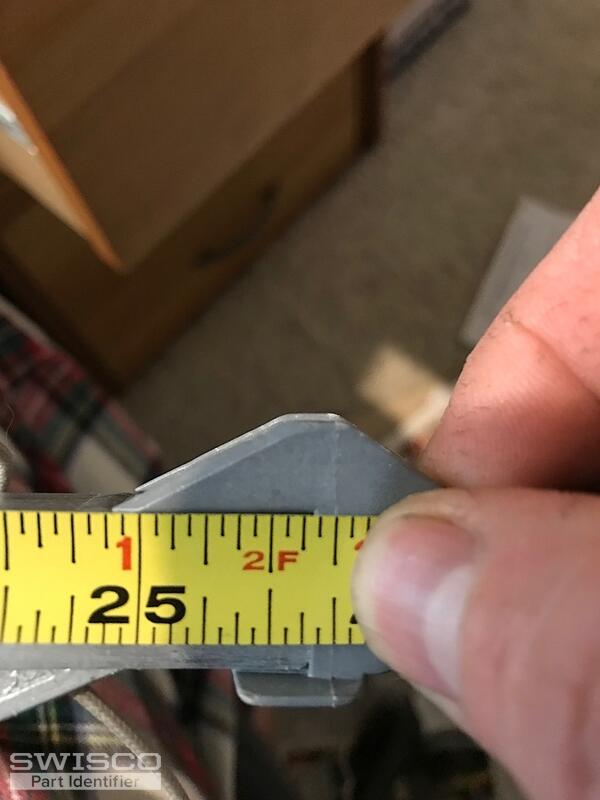

The first image shows the length of the metal channel at just over 25 5/8".

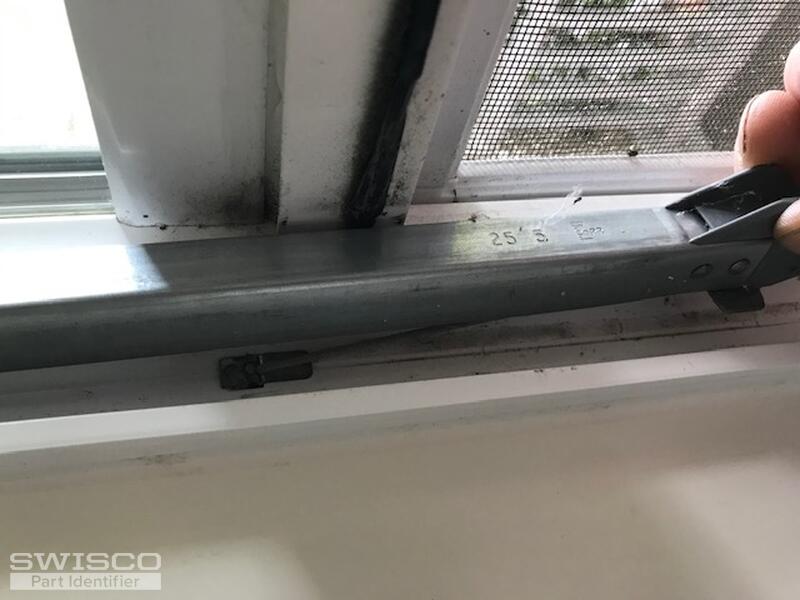

The second image shows a pretty good picture of the metal hook at the end of the cord in the spring on the left side of this sash - hooked into the frame

Just need one.

Please let me now if you need any more info or pictures.

Thank you

Steve

2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Perfect, thanks for this additional information. I will email you a purchase link and price quote right now, however we can only supply 2 at minimum since it has to be custom made. I hope that's okay. We always recommend replacing both balances int he same window anyway.
