Aluminum Front Door Left hinged

Landlord from Bridgeton, New Jersey
Sep 2, 2023 1:31 pm

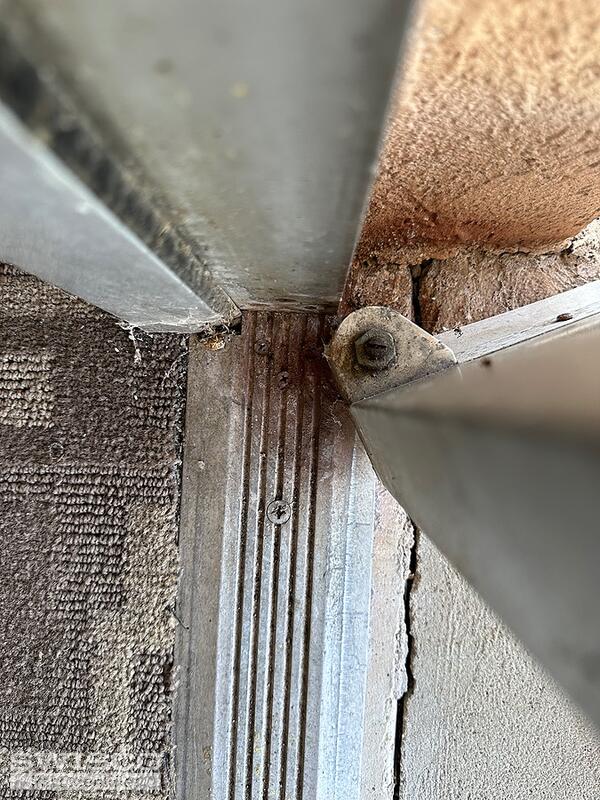

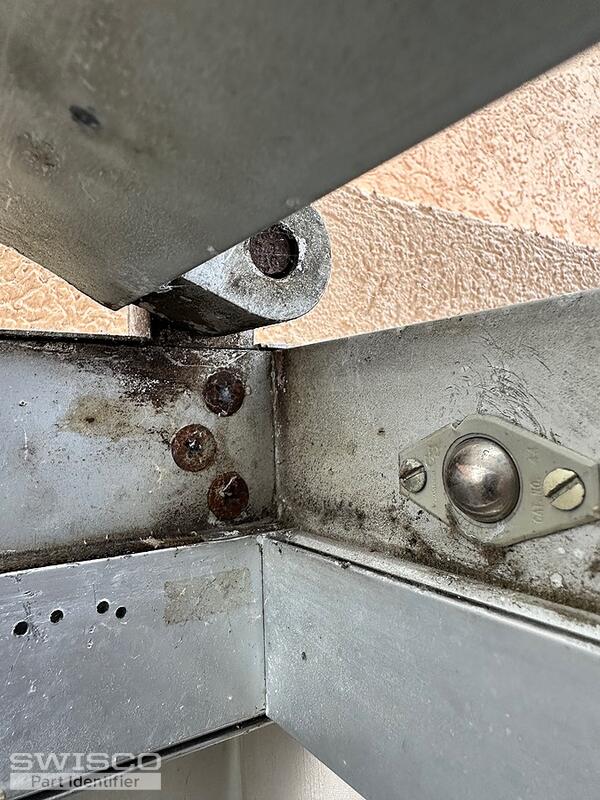

Wormed out pivots? need to replace it. Pls check the images?Thanks

Harshad

IMG_2378 IMG_2377 IMG_2376 IMG_2375 IMG_2374
5 user uploaded images
1 Replies
+ Add a Comment
Dave Sr.
Dave Sr. from SWISCO
Sep 6, 2023 9:01 am
SWISCO
EXPERT

Hi there, Harshad.

I don't believe you will be able to locate the exact commercial door hinges you need for your door, unfortunately. I have two ideas though. One would be to try to install the 79-121 pivot. It won't be easy and you will need to drill new holes to match up to the new hole locations. You will also need to cut the threshold at the bottom to accept the new lower pivot. Another idea would be to install a "continuous type hinge" like a "Roton hinge". I would suggest contacting a locksmith or a glass shop in your area to do the installation.

+ Add a Comment
Products and resources found in this discussion
Left 1/8" Recessed Door Offset Pivot Set, Arch Alum
Left 1/8" Recessed Door Offset Pivot Set, Arch Alum
79-121
$43.70
How to Install a Commercial Door Pivot
How to Install a Commercial Door Pivot
VIDEO
WATCH >
