Quick Learner from Hampton Bays,NY

Oct 4, 2023 5:01 pm

I have an American Craftsman garden awning window. The crank arm and pin needs to be replaced along with the locking mechanisms.

3 user uploaded images

7 Replies

Emily from SWISCO

Oct 5, 2023 12:48 pm

Thanks for reaching out to us. I'm afraid the parts shown in your second and third photos are no longer available. We don't sell a replacement or alternative for them, unfortunately.

I can't promise we will be able to help with the operator but we would need to see a photo of it flipped over for us to confirm.

Quick Learner from Hampton Bays,NY

Oct 6, 2023 1:15 pm

I'm not sure which picture your referring to as number one. The crank arm is what I really need to replace.
Thank you,
Phil

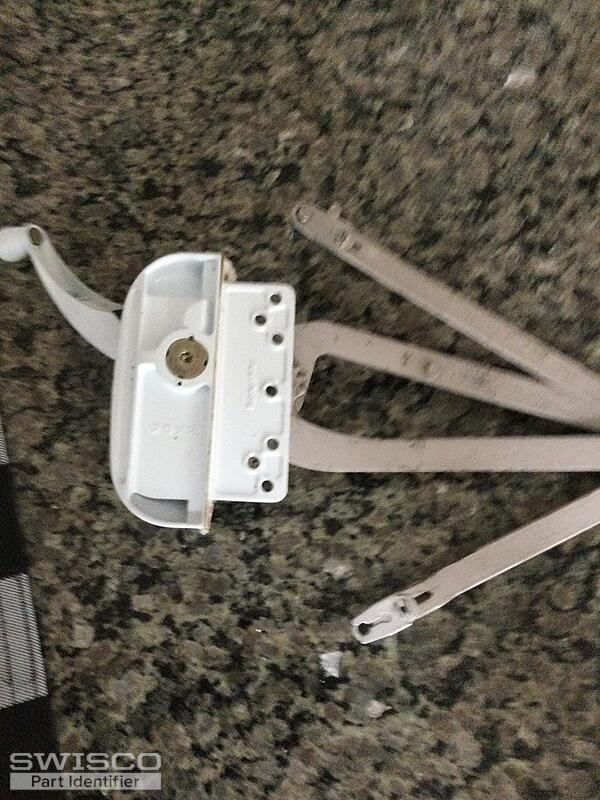

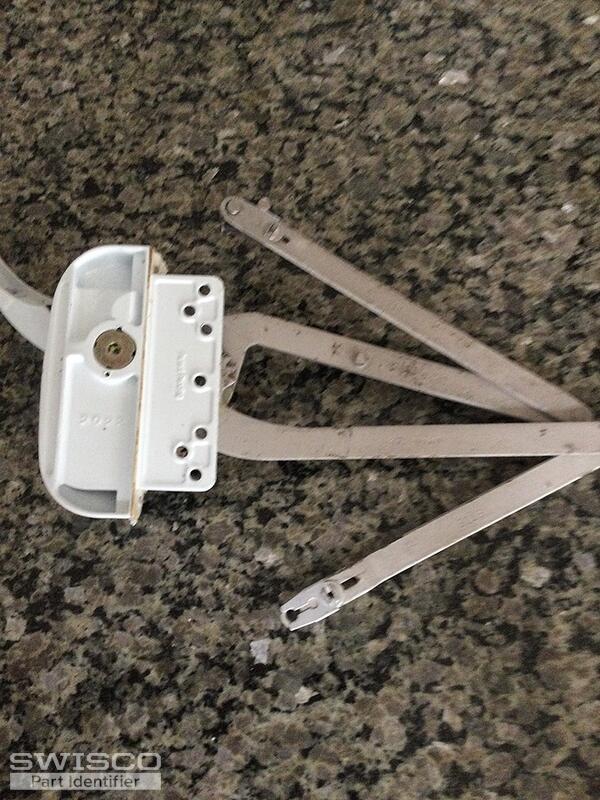

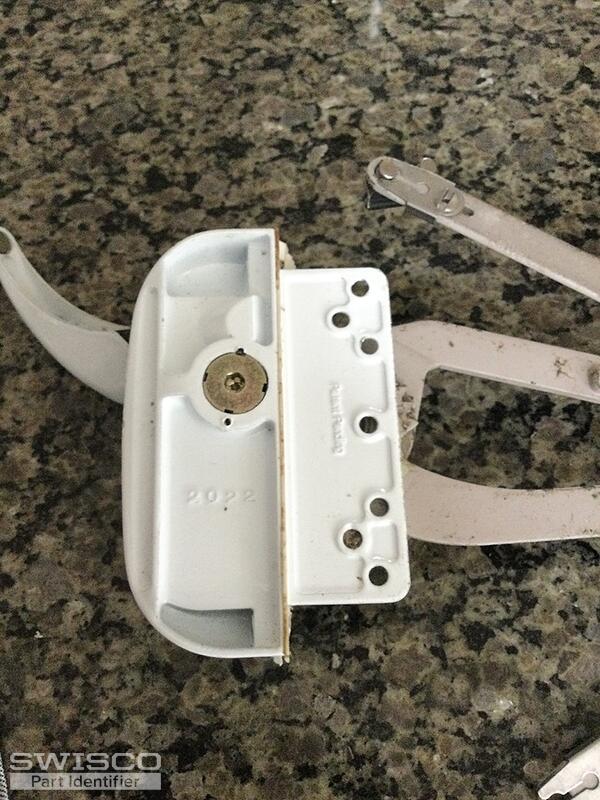

3 user uploaded images

Emily from SWISCO

Oct 6, 2023 2:01 pm

In that case, start by taking a look at the 39-393 awning operator. Carefully review the specifications and see how they align with yours.

Alternate view of 39-393

Quick Learner from Hampton Bays,NY

Oct 6, 2023 3:05 pm

Looks pretty darn close. I also need the roto awning surface mount. Do I just go online and order them?

Thanks,
Phil

Quick Learner from Hampton Bays,NY

Oct 6, 2023 3:12 pm

Is there any kind of window locks that will work on this window?

Emily from SWISCO

Oct 6, 2023 3:58 pm

Yes, you can place an order right on our website or by phone at (888) 991-1929. I'm not sure what kind of lock you have, however. The best match would depend on the original. Feel free to upload a photo of yours and we'd be happy to take a look.
