Atrium Windows Casement Latch

A quick learner from Bolivia, NC says:

May 12, 2023

I need a replacement latch for an Atrium (TM) casement window. The window has two latches (upper and lower) with a linking mechanism. I got a latch (Amesbury-Truth/Prime-Line TM23056 white) from another source but it does not have the post that mates with the linking mechanism so it is obviously the wrong one. I'm hoping you have the right one.

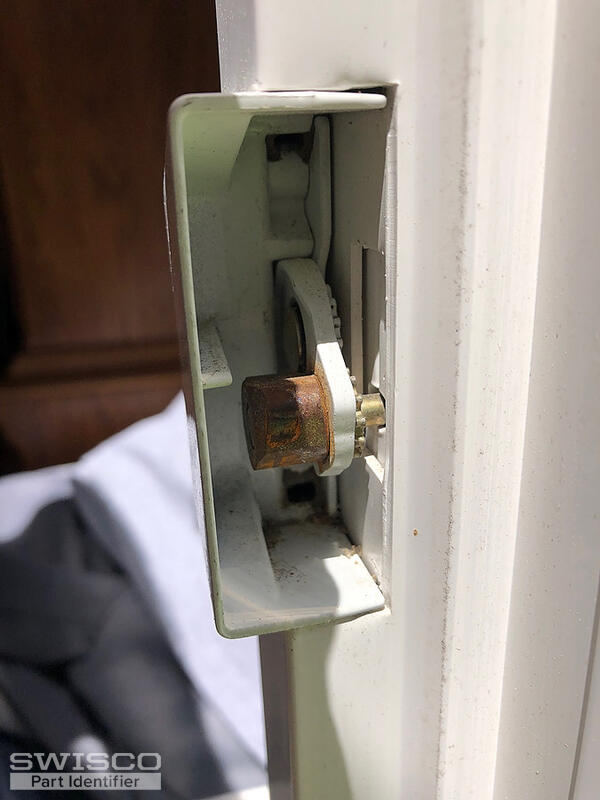

The third picture shows the pin/post feature that I need in the sash lock.

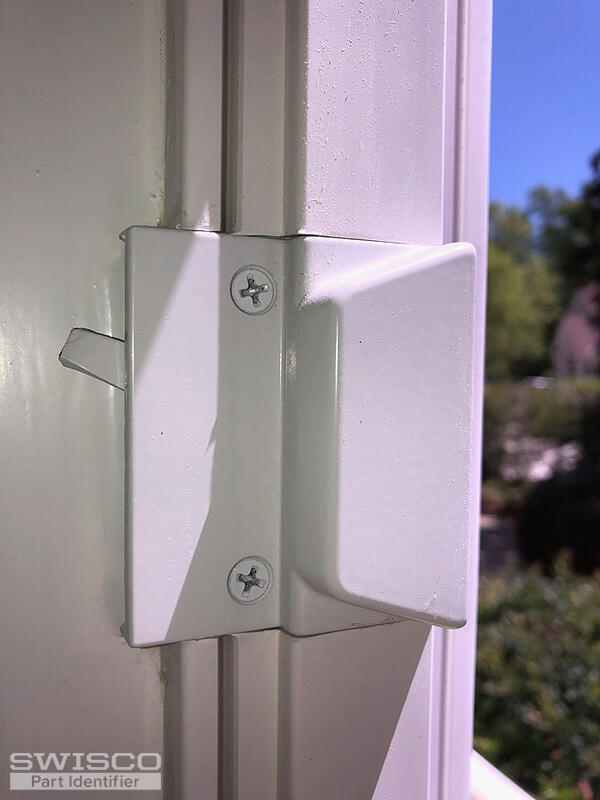

Thumbnail of the uploaded file named Latch 1.jpg

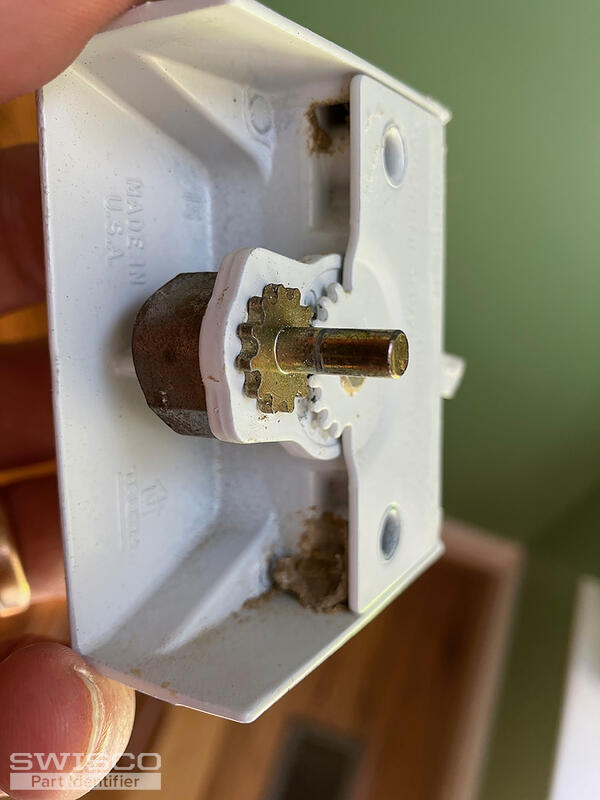

Thumbnail of the uploaded file named Latch 2.jpg

Thumbnail of the uploaded file named Latch 3.jpg

Jasmine from SWISCO responded:

May 15, 2023

Thanks for reaching out! Your casement lock looks a lot like our 38-170 casement lock. Like yours, this lock is made with a post. Carefully look over the dimensions and compare them to your existing latch to determine if this might be the right fit.

Alternate view of 38-170

Casement Lock With 1/2" Post

38-170

$31.91

Anatomy of a casement window

VIDEO

WATCH >
