Awning Window Closure

A home owner from Brooklyn, NY says:
August 6, 2023

I'm looking to replace the closure arm for my Andersen awning windows. The sea air has destroyed them. the windows are 33 1/2 inches wide and the arm looks to be about 11 inches long. Attached are some photos. Can you advise on what parts I need to buy from your company? Thanks - Paul

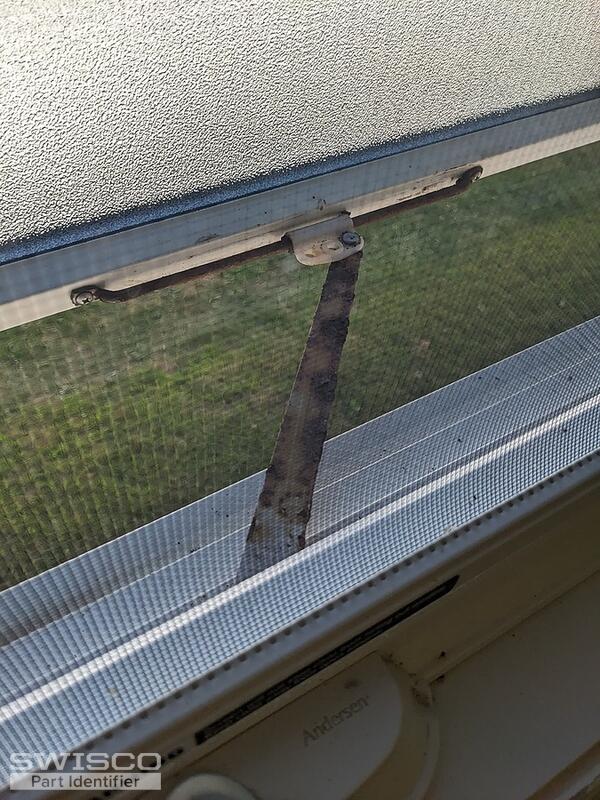

Thumbnail of the uploaded file named PXL_20230806_202549691.MP.jpg

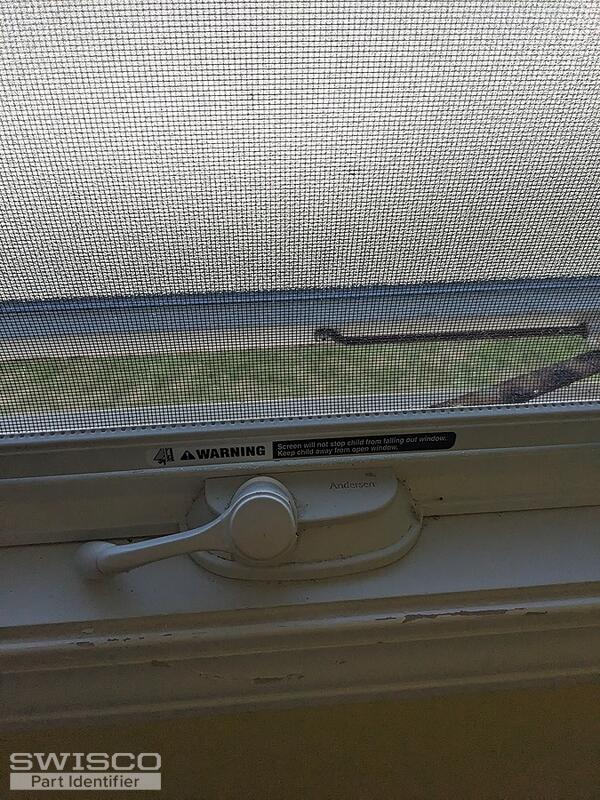

Thumbnail of the uploaded file named PXL_20230806_202949146.MP.jpg
Profile picture of Casey
Casey from SWISCO responded:
August 8, 2023

Hello,

Your operator resembles either the Andersen  39-343 or 39-099 , depending on the year that your window was installed. Please note that the arm measures 9" long as shown below. We also offer the 39-459 kit, which includes the folding handle and base shown in your photos. Take a look and see what you think. Thank you!

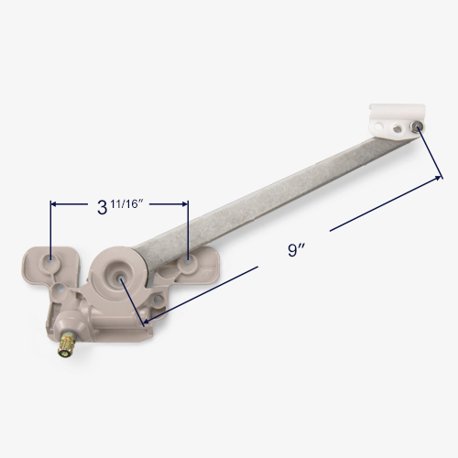

Dimensions for 39-343
Dimensions for 39-343

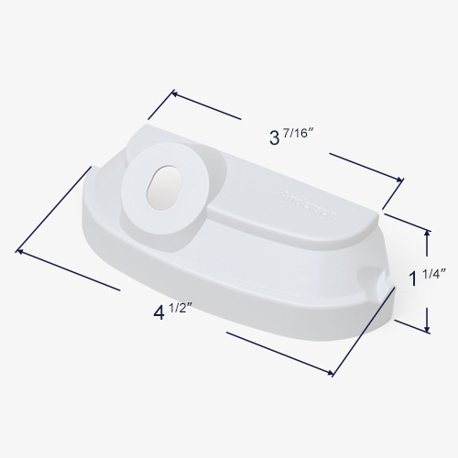

Dimensions for the 39-459 cover
Dimensions for the 39-459 cover

View of the 39-459 handle in the unfolded position
View of the 39-459 handle in the unfolded position

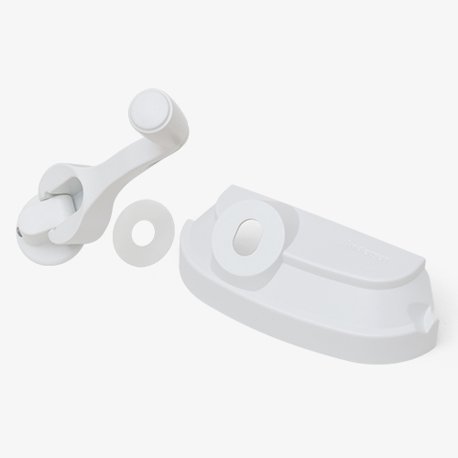

Andersen Traditional Folding Hardware Kit
Andersen Traditional Folding Hardware Kit
39-459
$27.32
Andersen Awning Operator
Andersen Awning Operator
39-099
$31.55
Andersen Awning Operator (1995 to 1998)
Andersen Awning Operator (1995 to 1998)
39-343
$74.70
Andersen Casement Operator Adapter Plate
Andersen Casement Operator Adapter Plate
39-362
$20.25
Anatomy of a casement window
Anatomy of a casement window
