Tom from SWISCO responded:
November 2, 2017
I'm pretty sure we can help, yes. Your pivot shoe looks like our 15-175. Carefully compare our pictures and dimensions to yours to confirm they match. As for the latches, I'm not sure what to recommend. You'll have to remove one and go over its dimensions to find the best match. You can see our complete selection here.
|

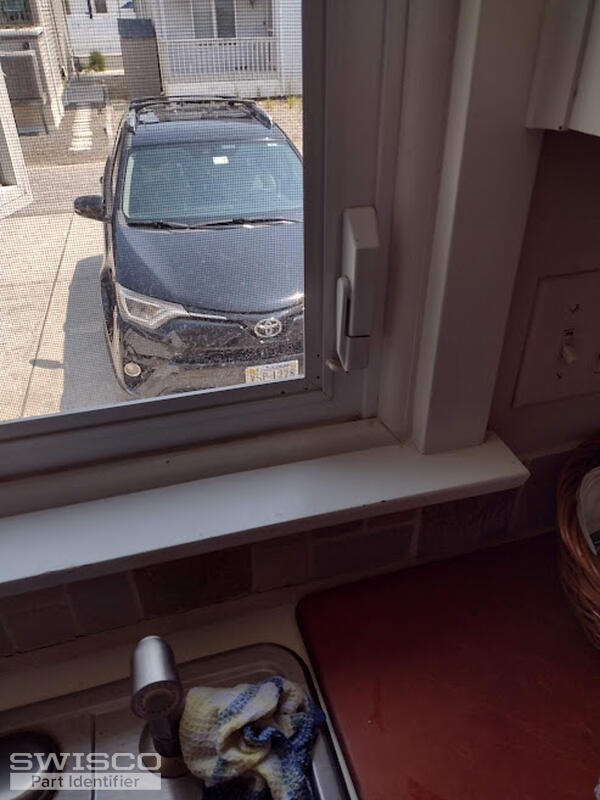

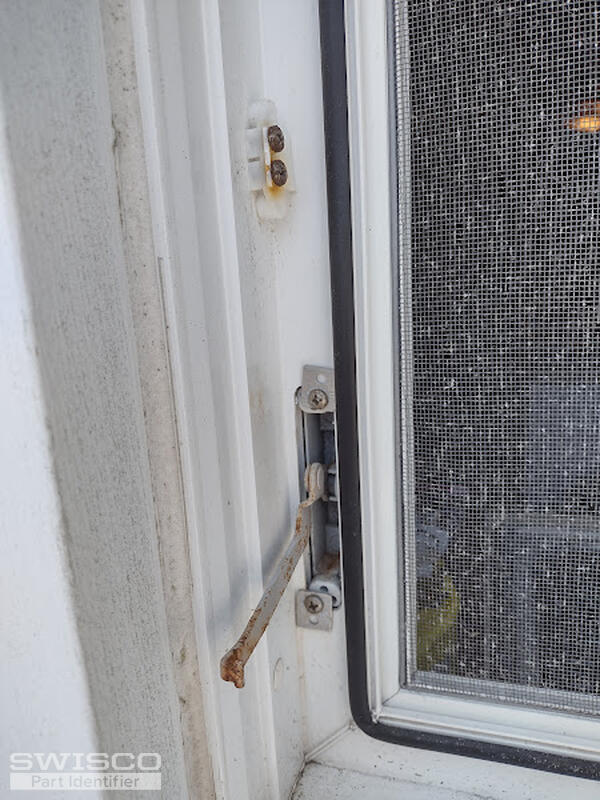

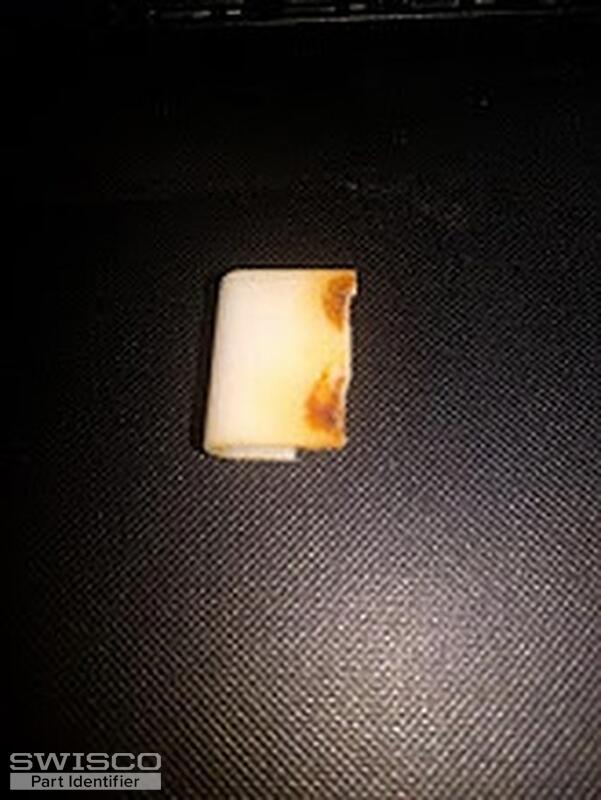

I have a B.F. Rich Casement Window 32" W x 36" H and a small piece of plastic has snapped off of the closing latch. Looking for advise and part(s) needed to repair the window.
Photos included.
Thanks,
Bill
Tom from SWISCO responded:
June 20, 2023
Hello, Bill. This appears to be a tie bar guide. It's tough to make out exactly what your design is, but the design is similar to our 39-417. These are very simple parts and while it may be different in general design, it should still work for you. All these have to do is screw in and hug the tie bar. |

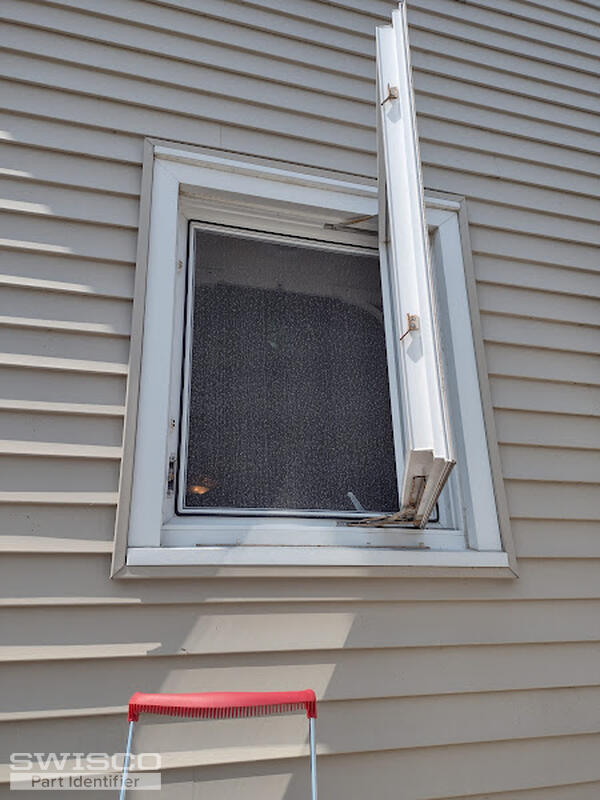

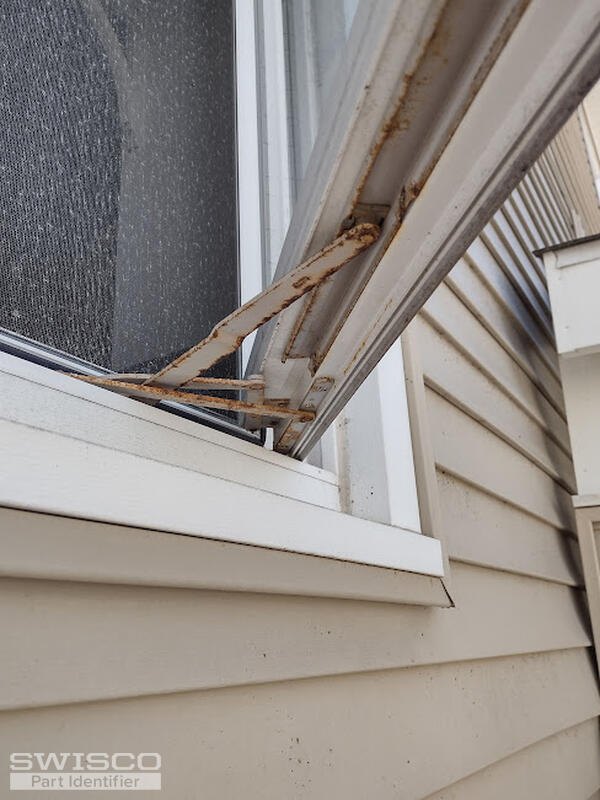

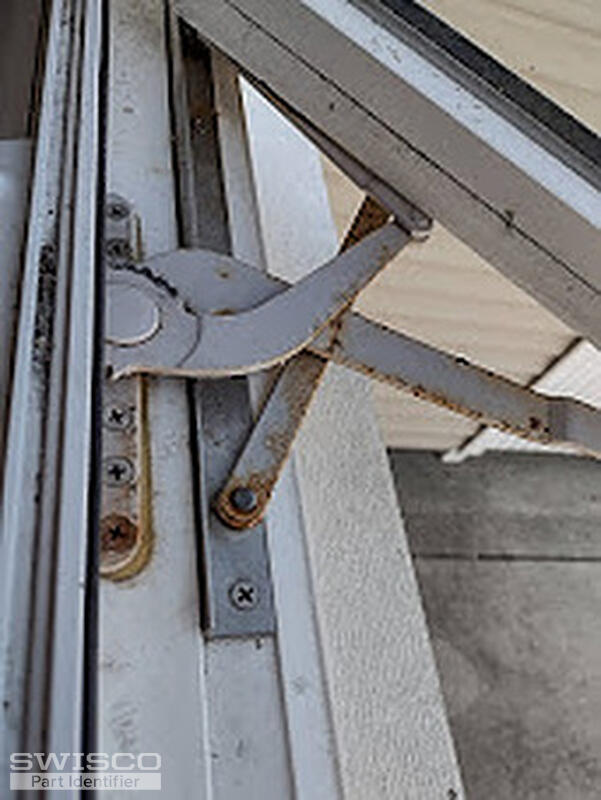

Is there a replacement part available for the armature shown in the included photos?
Thanks,
Bill
Tom from SWISCO responded:
September 22, 2023
Hello, Bill. Did you need the operator or the hinge? If you needed the operator, I'd suggest our 39-253LB and 39-253RB. For the hinge, our 36-048 may be a good place to start, but make sure to check the length of the base track to ensure it's the same at 10". Also note that if you do go with this hinge, you will have to replace the top and bottom at the same time. |
