Balance channel

Home Owner

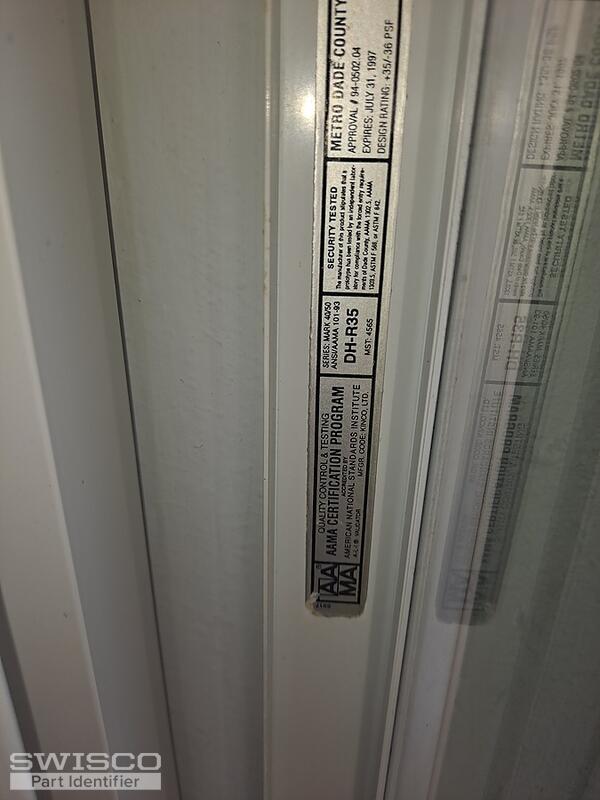

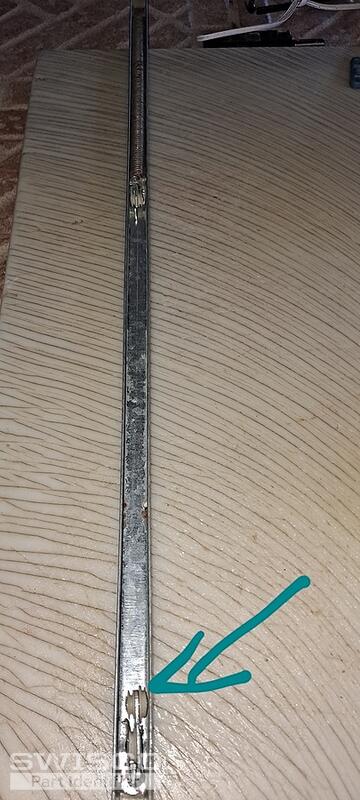

I need a replacement channel balance for a Kinco Series window: Mark 40/50 ANDI/ AAMA 101-93 DH-R35 Mst: 4565 I removed the window and the channel balance has some broken plastic pieces, it will be easier for me to replace the entire channel balance piece. Can you tell me what part number I need to order to do the replacement?, balance channel is 25", plastic parts do not have wings.
2 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I'm afraid I can't tell what you have based on these photos. In order to ID a good match for your balance, I will need to see a clear picture of both the top and bottom nylon fittings and the stamp printed on the metal channel.

If at all possible, please make sure that the balance you show us is whole and undamaged. If any pieces are broken off or missing then there's a good chance we won't be able to ID a match for you. When it comes to balances like this, the first parts to break off are usually the most important, so it would save us both a lot of trouble to use an undamaged version as a reference.

Home Owner

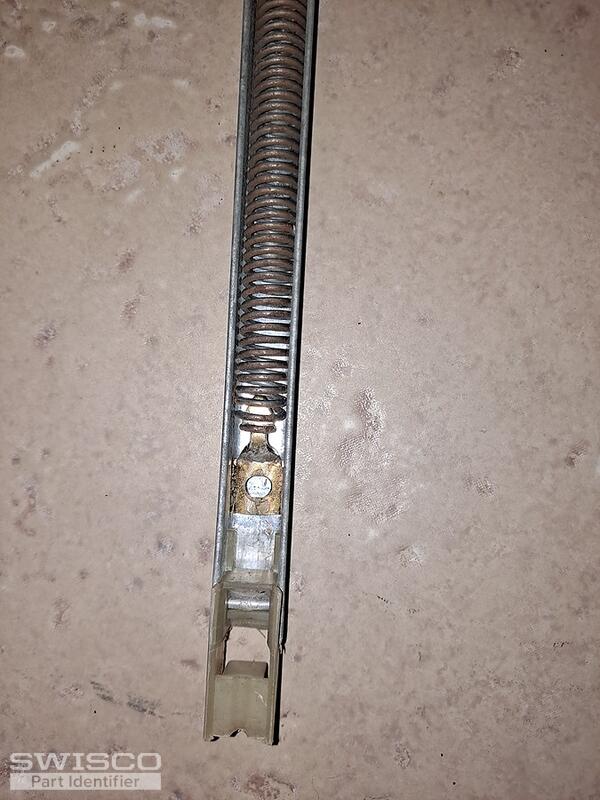

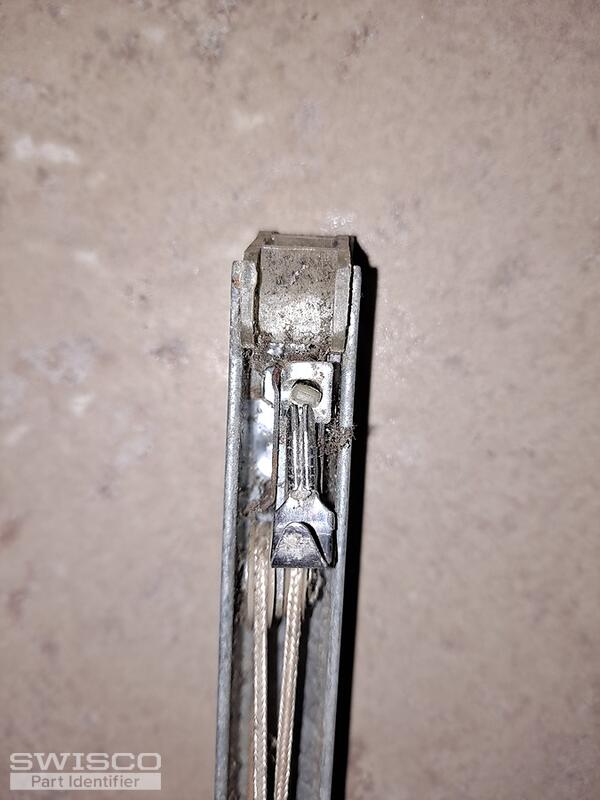

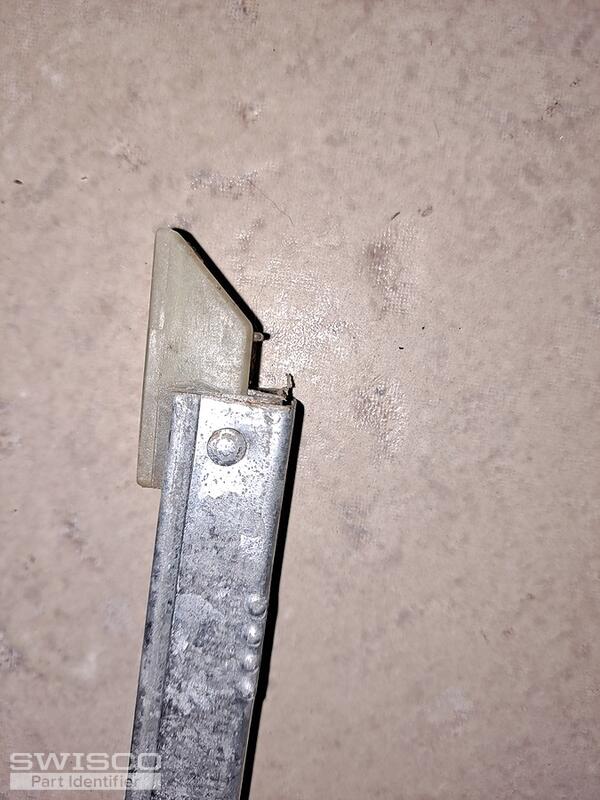

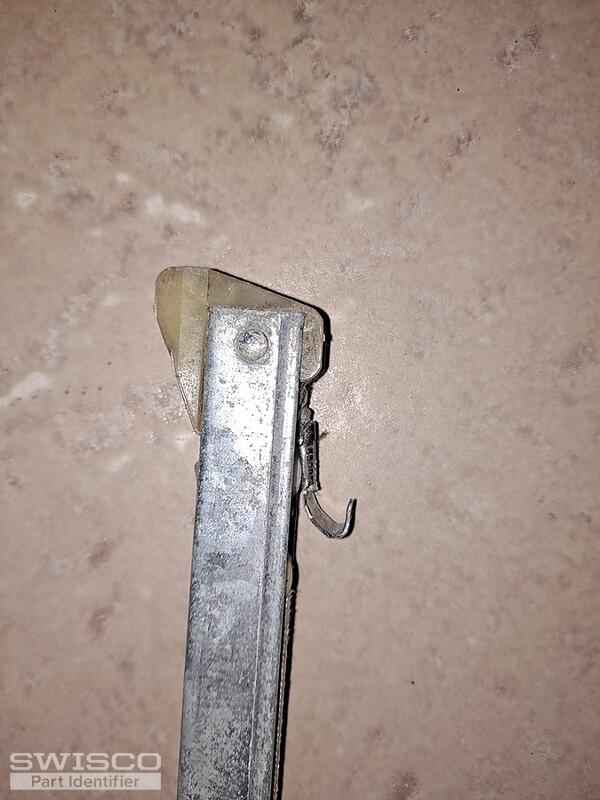

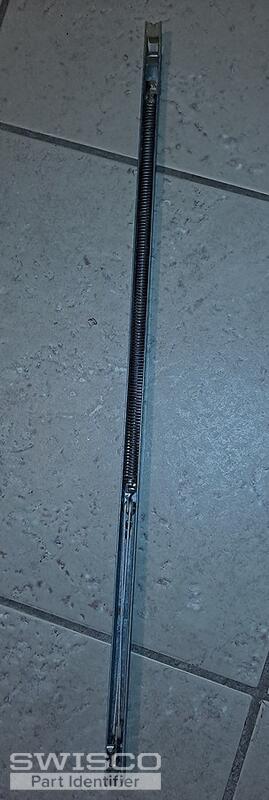

Thank you for your attention, I send you several images to see if you can help me with them. on the metal channel there is nothing printed.
5 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! Thanks for your photos. Based on what I see here, you have either our S351-25 or S390-25, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

If there is no stamp printed on the metal channel, then you will have to weigh your sash on a scale to confirm the best stamp option. That's the only way to know how these springs ought to be calibrated. We have a chart on each balance store page that tells you exactly how much weight each option supports.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
