Channel Balance Replacement

Home Owner from Safety harbor, fl

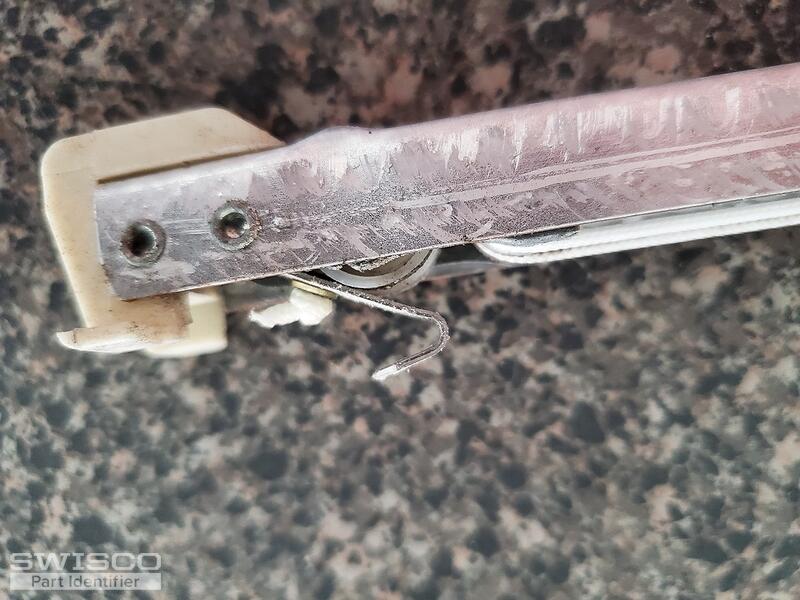

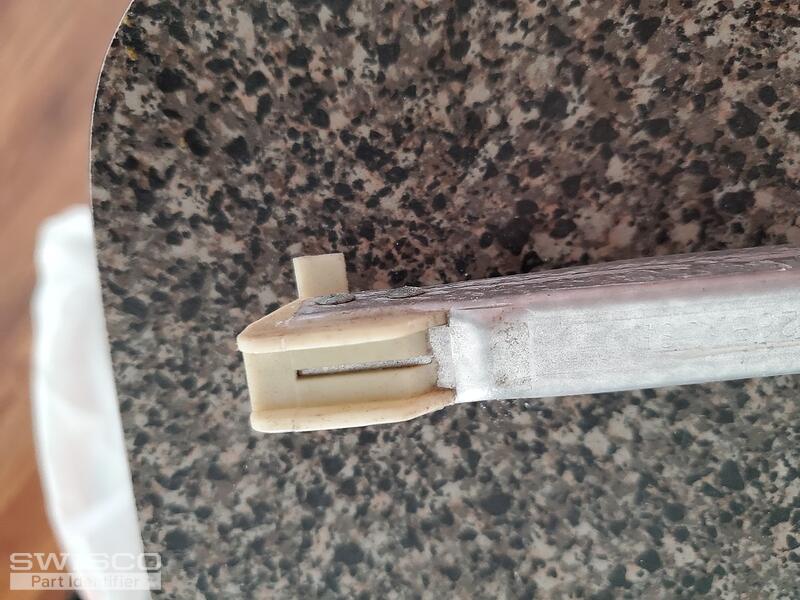

29 inches long
About .5 inches wide and thick.

I think its s380 or s385
Wanted to check with you prior to ordering

Will,send another inquiry about the sash guides and balance retainers.
Thank you!
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

I agree, this does look like it's probably either the S380-29 or S385-29. The depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, is the deciding factor between these two balances, so compare both with your old hardware to see what matches best. See the image below. if your balance's show proves to be a smaller depth than either of these options, please let me know what it measures out as. For a stamp option, choose 2820.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Home Owner from Safety harbor, fl
Good morning. The heel to toe is only 7/8 inch. Is that close enough?
Bob
Bob from SWISCO
SWISCO
Expert

In that case, you need balances that use our 7/8" deep 15-029 shoe. None of our stock balances use this shoe, but we can provide these for you via custom order. I am sending you an email with a custom link to order two(2) of these 29" balances, stamped 2820, and with the 19-005 Top and 15-029 Bottom attached. If you need a different amount, let me know here in the discussion. Many thanks.
