Bifold Door Kit

A quick learner from Fort Pierce, Florida says:
June 27, 2018

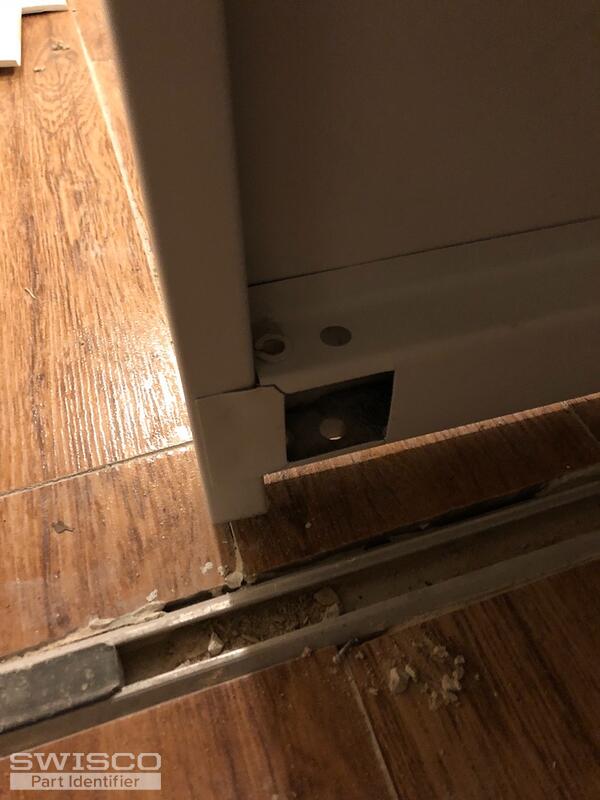

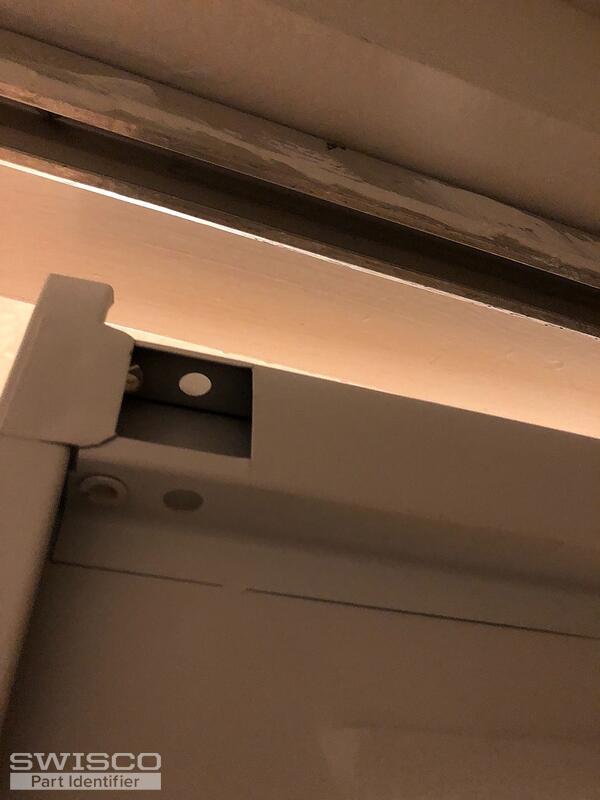

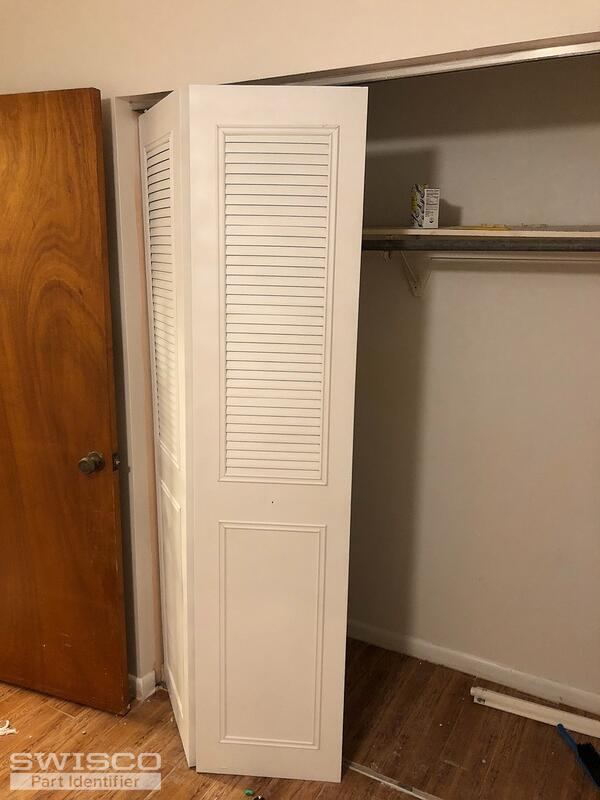

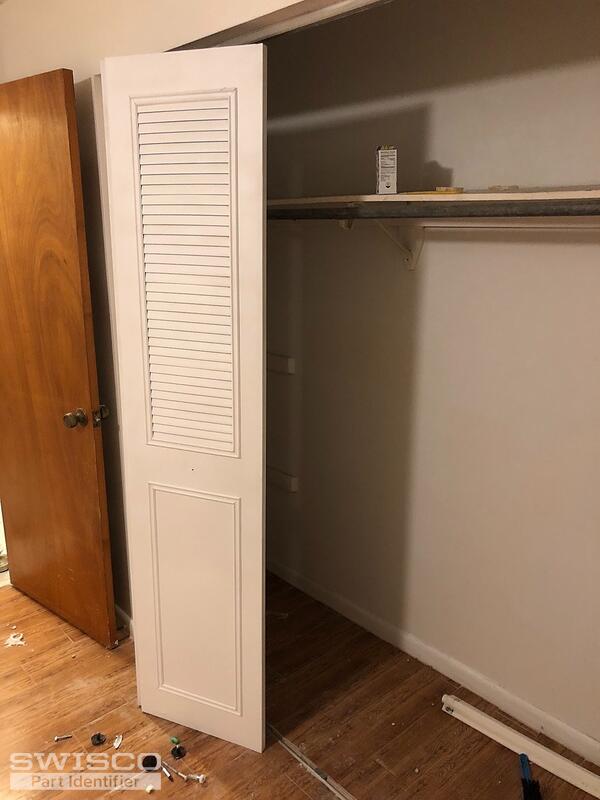

I recently purchased a house that was built in 1974 and it has the old metal bifold closet doors that 36? and on 72 inch guide top and bottom i need bifold kit for pivot top and bottom
Thumbnail of the uploaded file named 58C876E6-F7D3-4BB9-AAEE-32CE64DA3ED7.jpeg
Thumbnail of the uploaded file named 370F2DB0-A0E4-44B1-A21B-35CF981ECB3B.jpeg
Thumbnail of the uploaded file named ED68E6DB-AA79-4A3C-9F84-CD804BE742A7.jpeg
Thumbnail of the uploaded file named 847122DA-2896-4545-B20C-5BB5F3244B1B.jpeg
Profile picture of Paul
Paul from SWISCO responded:
July 5, 2018

Thanks for posting. Were there no bi-fold door pins on this door when you bought the house? That will make identifying what you need difficult. Is there another, identical bi-fold door in the house that still has its hardware that we can use as a reference?
A quick learner from Fort Pierce, Florida says:
July 5, 2018
Yes this a smaller door that 24?
Profile picture of Paul
Paul from SWISCO responded:
July 9, 2018

Looks like you have the old style National bi-fold doors. I'm afraid that we no longer have the complete spring loaded guide pins. You will need to put them together. They consist of the following parts: the 21-026B pin, the 21-113 cap, 21-252 spring and 21-155 palnut.

The top spring loaded pivot pin would be our 21-026B with a 21-155 palnut pushed on about 3/8" down, then you would place a 21-252 spring below it and put the pin through the door at the top and lock it on with another palnut, our 21-155. The bottom threaded pin would be our 21-046.
Bifold Door Pin Cap, National
Bifold Door Pin Cap, National
21-113
$1.51
Plain Pin, 1/4" x 5-3/4"
Plain Pin, 1/4" x 5-3/4"
21-026B
$1.54
Bifold Door Bottom Pivot, National
Bifold Door Bottom Pivot, National
21-046
$8.18
Cone Spring
Cone Spring
21-252
$0.65
1/4" Push Nut
1/4" Push Nut
21-155
$0.28
