Bifold door bottom track

Track is not available to look for name or numbers. It is 48 inch length. The picture is of a similar track installed at a different closet bifold door and matches other bifold doors in the house. I also need one pivot pin and spring clip.



Hello,

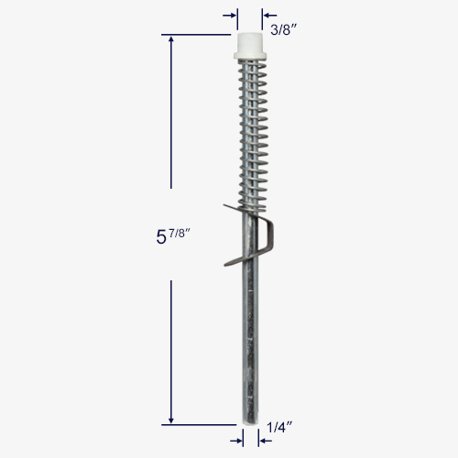

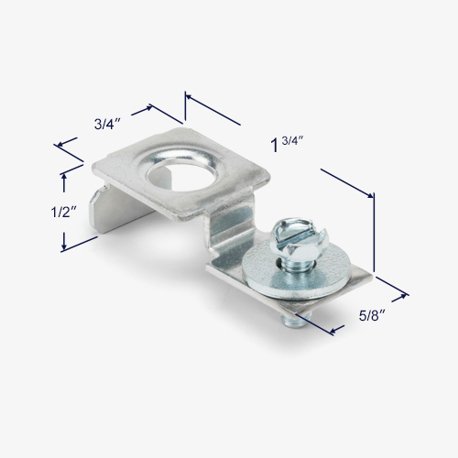

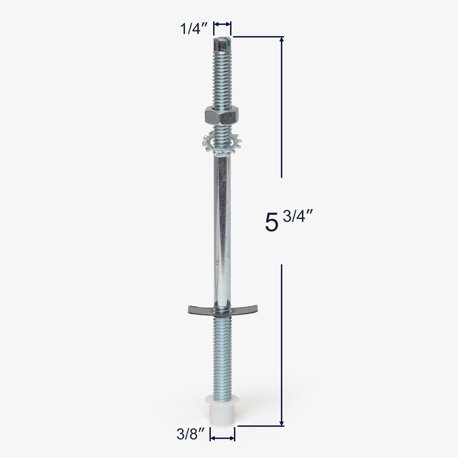

I can't be sure with the hardware still installed but I would recommend comparing the specifications of the 21-209 pivot bracket and 21-044 top pivot to yours. These parts are also used with the 21-002 bottom pivot. Thanks for posting!

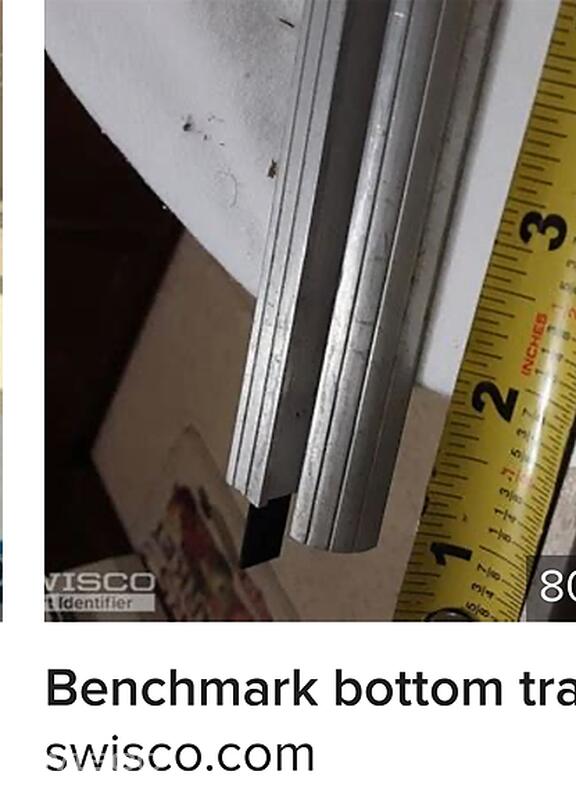

Photo 1 is an image from a web search showing the track that I need and your company name

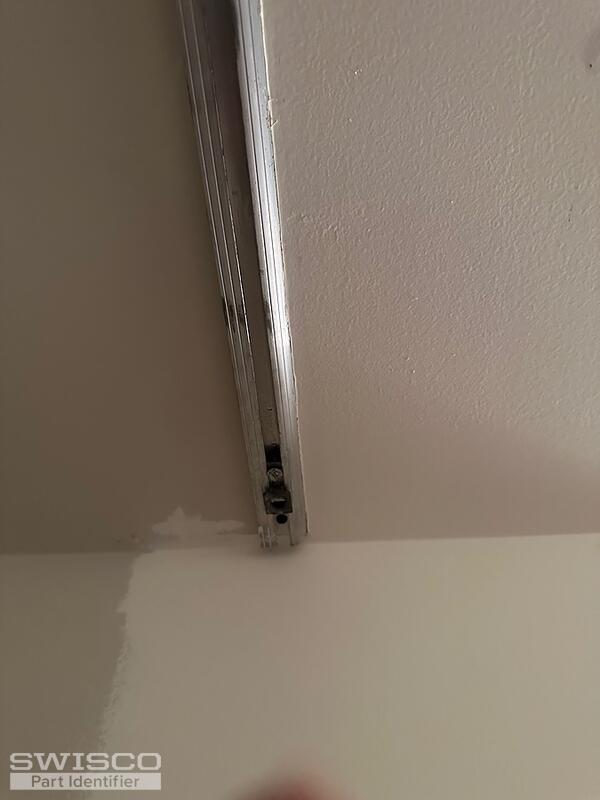

Photo 2 is the current top track

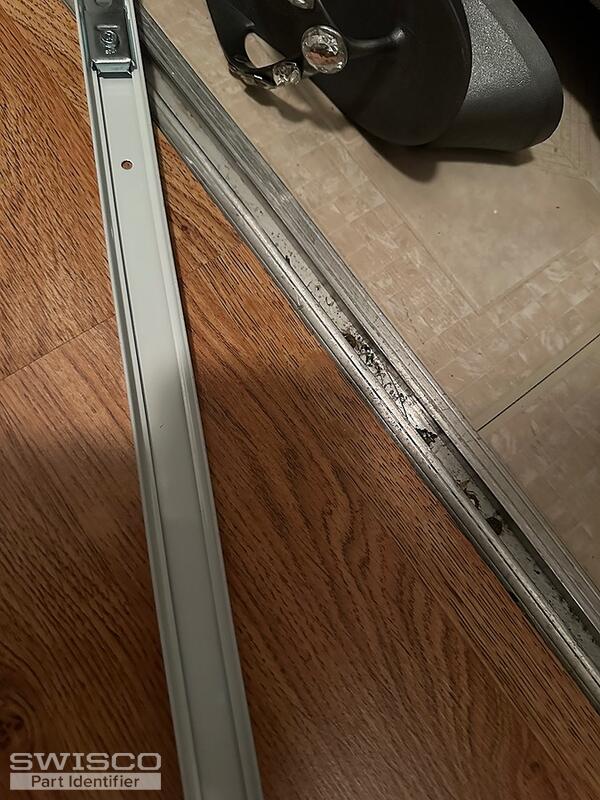

Photo 3 is a picture of another closet with metal bifold doors and the bottom track that I need. The other track in this photo is a top track that is not a replacement candidate.
An expert replied to my request with pin and pivot point suggestions but didn't provide any information about the 48 inch bottom track that I also and really need.



In photo #3918, you are showing a Benchmark track that is secured to the floor next to the white top track, which is for a wood bi-fold door. Unfortunately, the white track will not work with a metal Benchmark door.
For a 48" opening Benchmark door, you should be able to use the 21-404 track. It comes with the 21-200 pivot bracket that works with the 21-002 and 21-044 pins. You will also need to purchase the 21-277 bumper for the track. The 21-209 pivot bracket is for the old style Benchmark door.
