Our double hang window balance is broken. String is broken off.

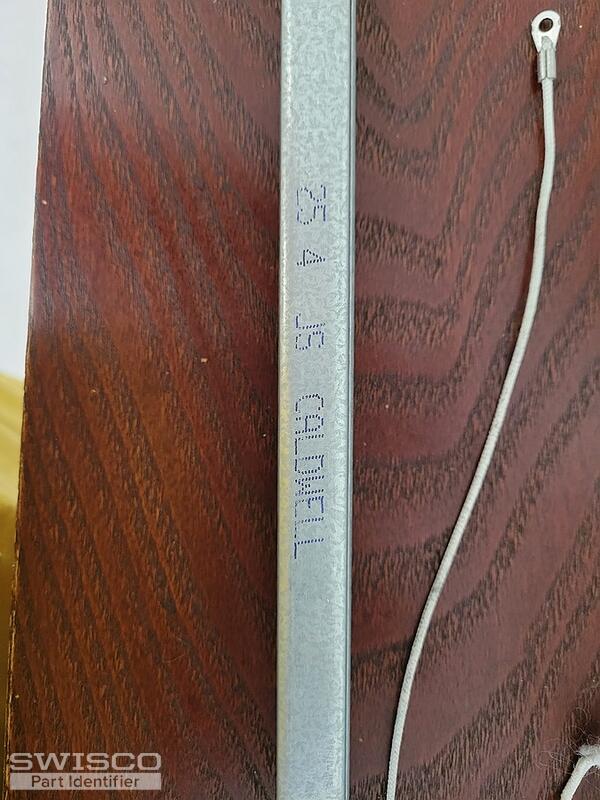

Metal part length is 26" Description is 25 4 JS CARDWELL. Would you please identify this and advise me availability, price and postage. Our home is 21 years old. Windows are difficult to open up. Thank you for your help. We have 13 windows in our home.
Block and Tackle Balance inquiry
Quick Learner from Thurston County, WA, USA
Aug 1, 2021 6:04 pm

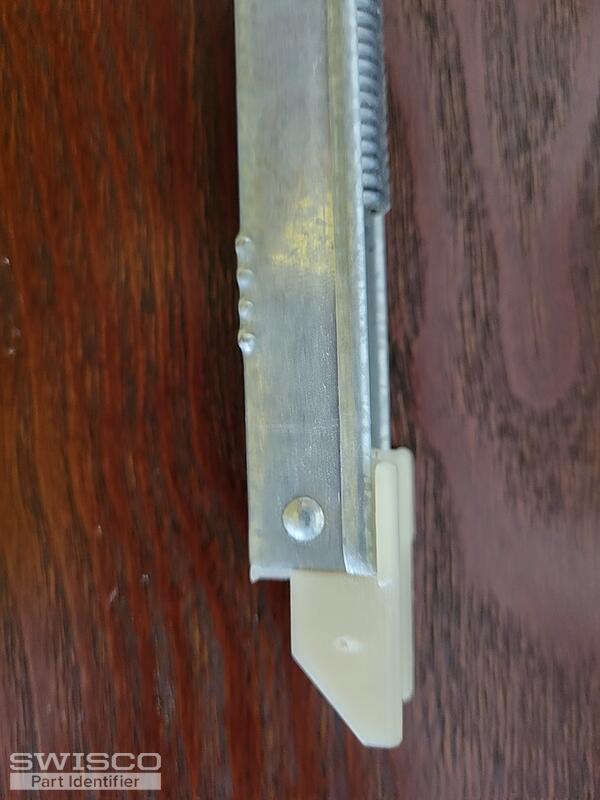

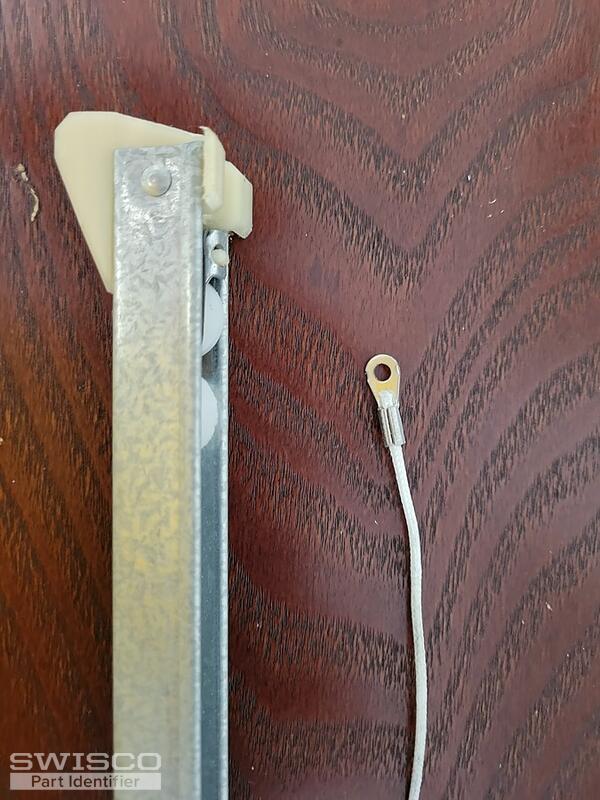

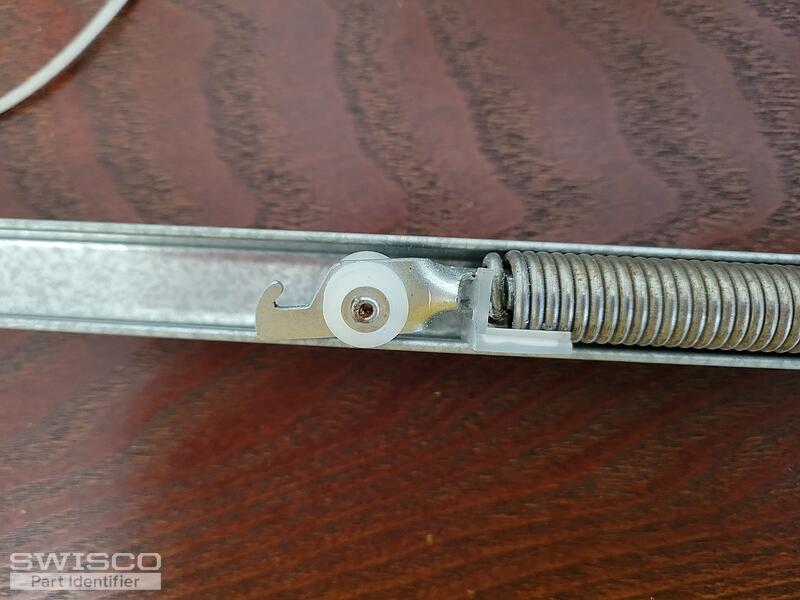

5 user uploaded images
6 Replies
Tom from SWISCO
Aug 6, 2021 12:26 pm

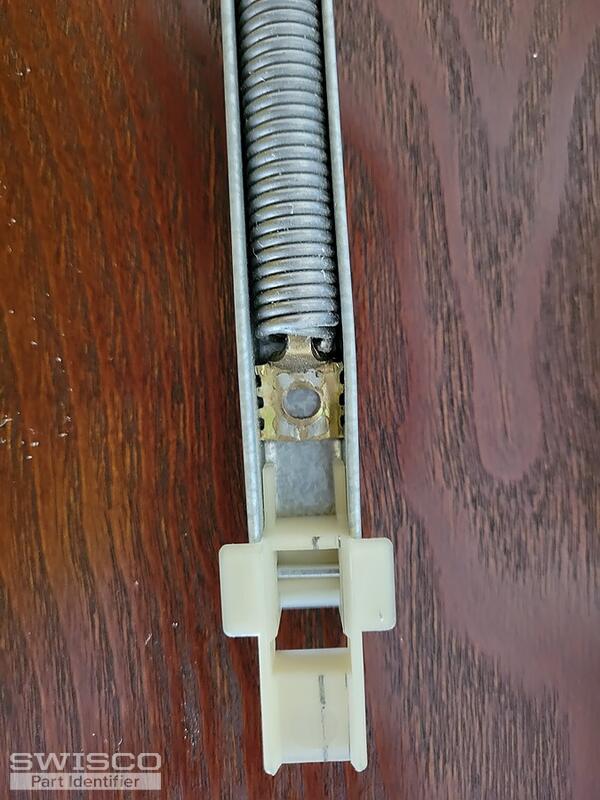

Thanks for your photos. Based on what I see here, you have either our S380-26 or S385-26, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Thurston County, WA, USA
Aug 7, 2021 11:37 am
Depth of bottom shoe is longer than 1". It about 1 1/16". So I assume it is 1 3/32". Thank you.
Tom from SWISCO
Aug 9, 2021 9:39 am
Yep, that sounds right to me. Odds are that it was 1-3/32" originally and wore down overtime from use and friction.
Quick Learner from Thurston County, WA, USA
Aug 9, 2021 1:33 pm
To order S385-26 channel balance. Could you tell me which stamp option should I select? How can I find out sash weight?

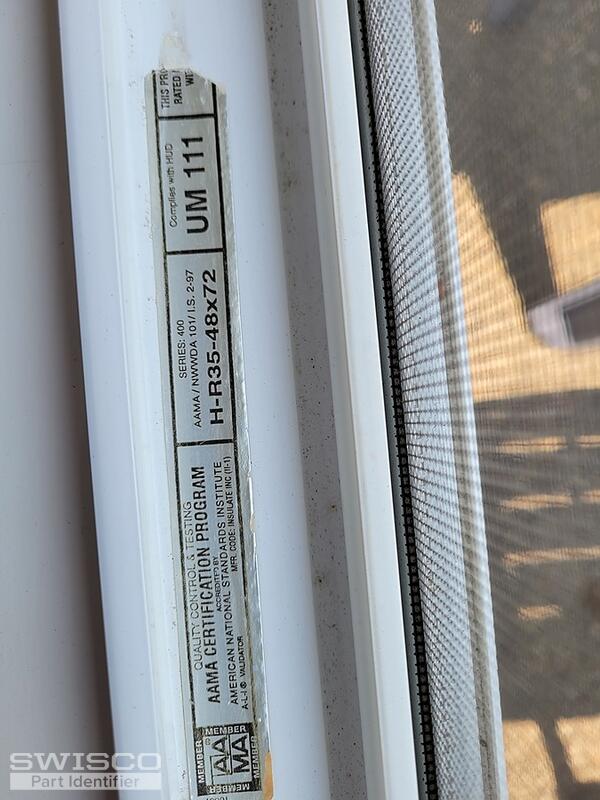

1 user uploaded image
Tom from SWISCO
Aug 9, 2021 2:47 pm
Since your old stamp was "25 4" then you can use our 2540 option. If you wanted to confirm by getting your sash weight, though, then you'll have to physically weigh it. Any bathroom scale should do.
