8254 Bottom pivot bars for tilt out windows

Handy Person from Amelia VA 23002

Sep 9, 2016 9:52 pm

A window was not latched properly and pivoted out on to the floor. Both bottom pivot bars that lock into the sliders broke off when this happened. We need two new ones.
Thanks,

5 Replies

Tom from SWISCO

Sep 12, 2016 10:24 am

Sorry to hear about the trouble. Would you be able to show us a picture of the pivot bar in question? That will help us find what you need. If you can, please remove as much of the pivot bar as you can from the window, and try to assemble the broken pieces together. We will need to see as much of the pivot bar as possible. We would also like your measurements. Thanks!

Quick Learner from Amelia VA

Sep 12, 2016 11:53 am

These pictures are all I have. The end pieces have not been found.

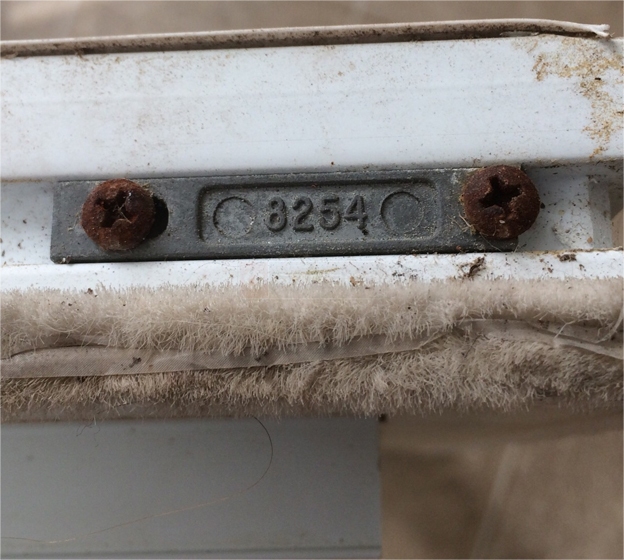

User submitted image of their window hardware.

Tom from SWISCO

Sep 14, 2016 11:17 am

Thanks! I can't say for sure without seeing the tip of the pin, but look at our 26-377. This may be what you want. I found an old discussion (which you can see here) where another customer has something similar.

Quick Learner from Amelia

Sep 14, 2016 3:15 pm

Thank you.
I ordered two.
