Broken BF Rich Window Part

Quick Learner from Suffolk VA

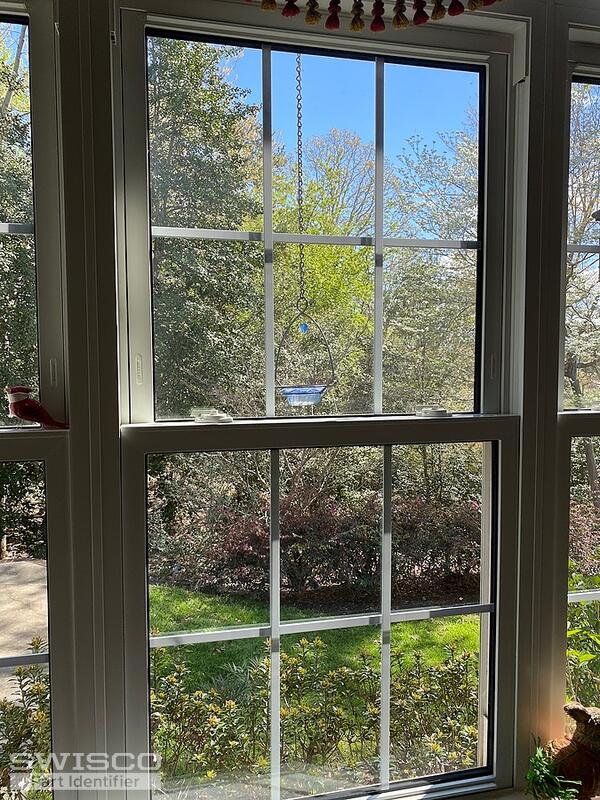

Hello we had these BF Rich windows hung in 2003 when we built our home. I am sending you a photo of the part that is broken that we need replaced. I hope that you can help. Thank you
2 user uploaded images
7 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Looks like you need a new coil balance. We should be able to help with this, but I will require a photo of the pivot shoe in order to make a recommendation. That will give me a better idea of what this assembly is and what part in our inventory will work.

Quick Learner from Suffolk VA
Ok. Can you give a picture or idea what the pivot shoe is? Thanks so much!!!
Quick Learner from Suffolk VA

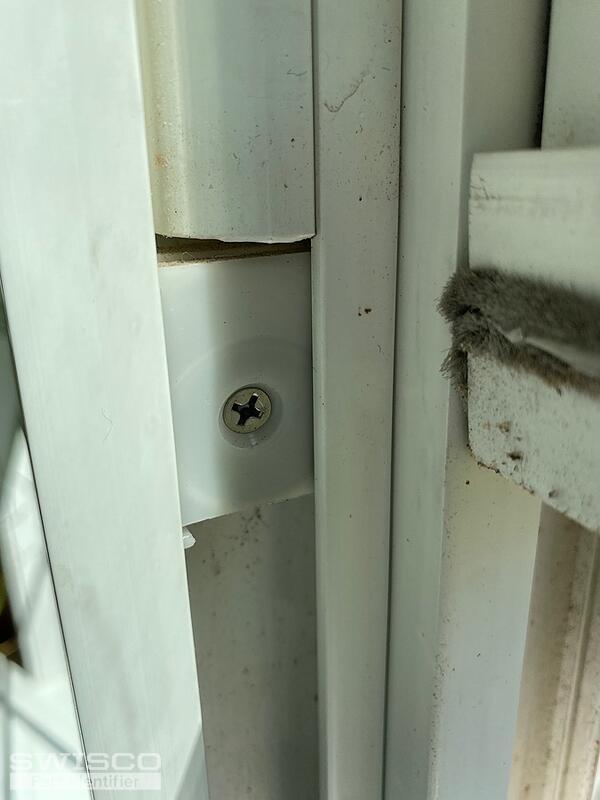

The part in the picture is actually from another window and it is intact. The part that I need is the part you were looking out with the screw in the middle.Ok. Can you give a picture or idea what the pivot shoe is? Thanks so much!!!
Tom
Tom from SWISCO
SWISCO
Expert

The pivot shoe is the square or rectangular block immediately below the piece you've shown us already. It's what connects the springs to the sash. You can see our full selection of pivot shoes here.

Quick Learner from Suffolk VA

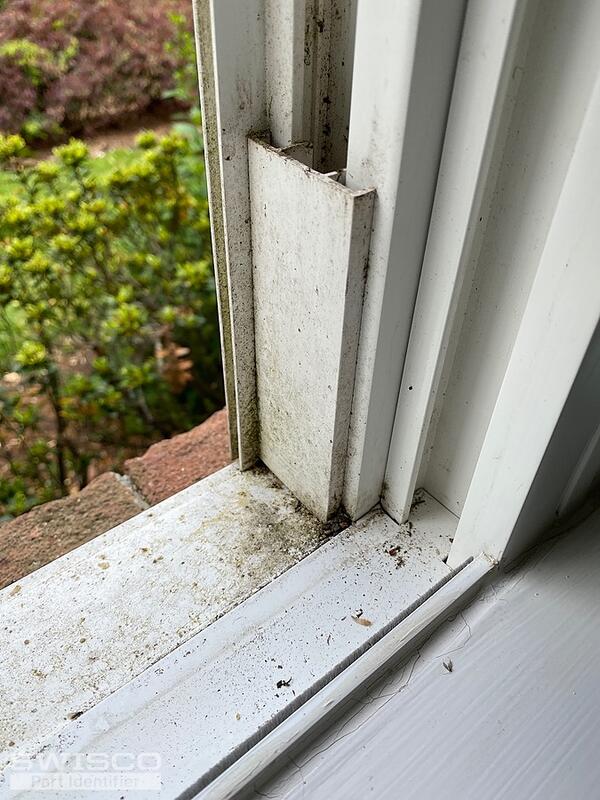

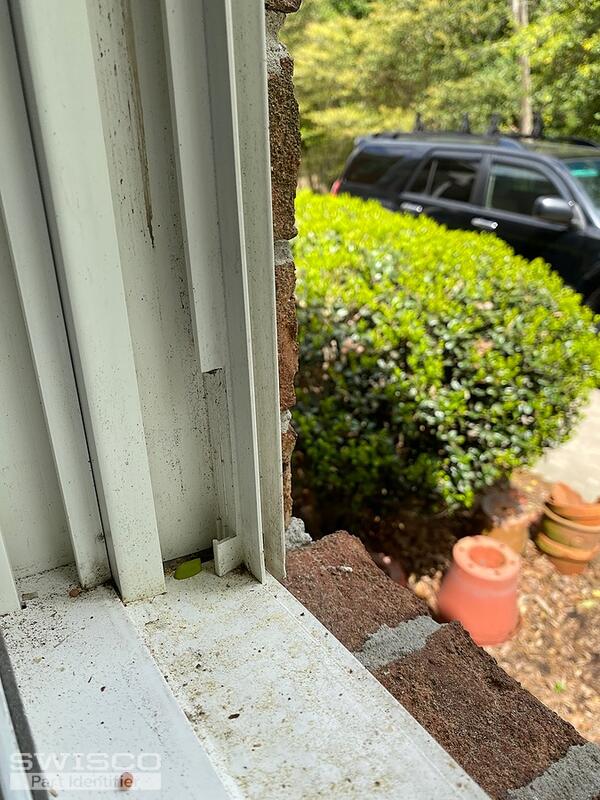

Hello, my husband helped me look at the window in question. It looks like we are missing several of the parts that I have sent in photos. The "broken" window is missing both .
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

That's unfortunate. I'm afraid that I can't ID what coil balance you have without seeing the pivot shoe. It's a key component.

Do you have an identical window in the house that may still have all its hardware? If so, we can use that as a reference.

If you really have no window in the house that has a pivot shoe we can see, then your next step should be to contact a local professional who is familiar with homes in the area. They can hopefully point you in the right direction.
