Broken release assembly for bottom sash tilt-in feature.

Search
Start a new Discussion
Handy Person from Orlando, Florida
Dec 11, 2016 12:18 pm
Manufacturer is PlyGem #3753.
The broken release assembly is a LEFT hand side in black. The locking tongue is broken off during installation and the installer is long (3 years)since gone.
The photos depict a right hand sample which was easer to photo than the actual left hand broken assembly.
Please don't refer me to repair company. It would only take me 1 minute to replace the part myself.
Thanks...
...Bruce

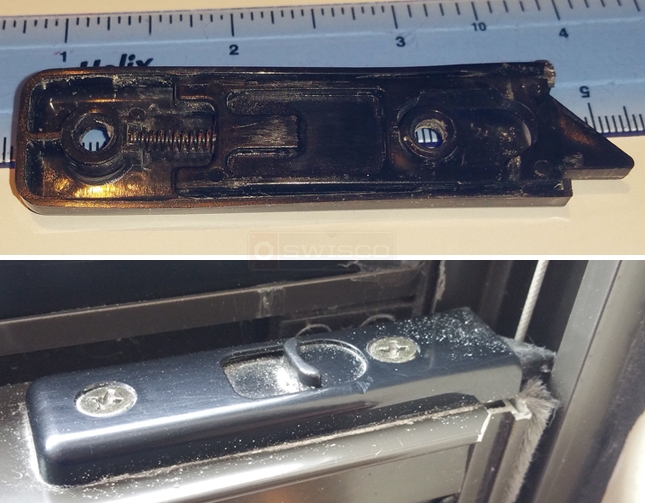

User submitted image of their window hardware.
4 Replies
Tom
Tom from SWISCO
Dec 14, 2016 9:04 am
SWISCO
Expert
Hey, Bruce. I'm afraid I can't identify your latch based on these pictures alone. We will need to know your exact dimensions, which are difficult to make out based on just a ruler next to the part. Specifically, we need to know the distance between installation holes (center to center), the distance between the front hole and the edge of the housing, and the total width. Thanks!
Quick Learner from Orlando, FL
Dec 15, 2016 9:53 am
Tom,

Dimensions are +/- 0.0625"
Mtg holes: 1.75" on centers
OA Ht: 0.625"
Body L: 3.00"
Locking tongue protrusion: 0.375"

Need more?
...Bruce
Tom
Tom from SWISCO
Dec 20, 2016 9:51 am
SWISCO
Expert
Perfect, thank you. That sounds a lot like our 26-410. At this time we only have it in white, though we may be able to get it in black. The trouble is, it would take a considerable amount of time for it to be made, especially due to the coming holiday season. Let me know if you're interested. In a worst case scenario, the 26-410 can also be painted.
