Channel Balance

A quick learner says:
May 25, 2023

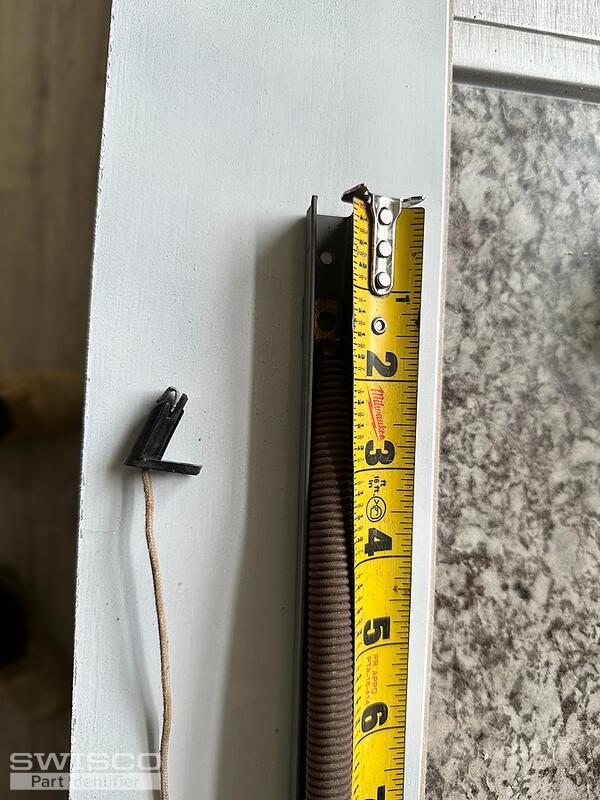

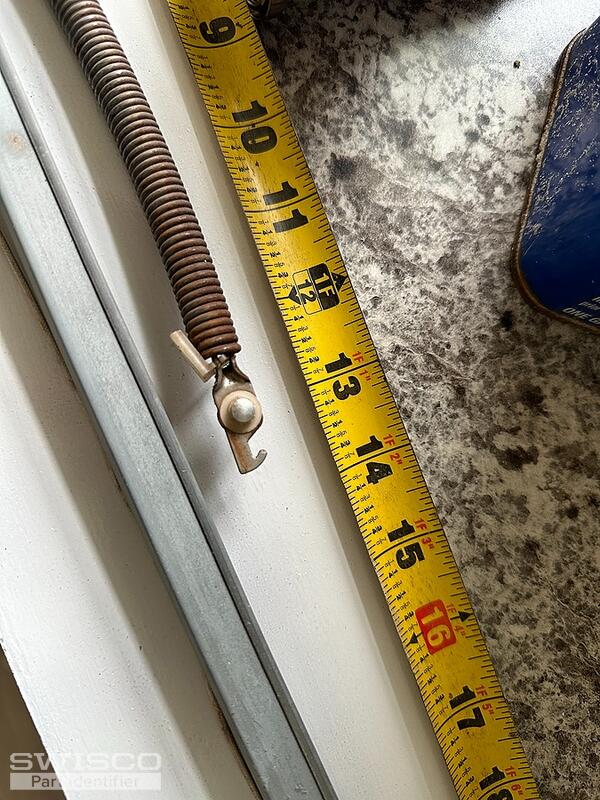

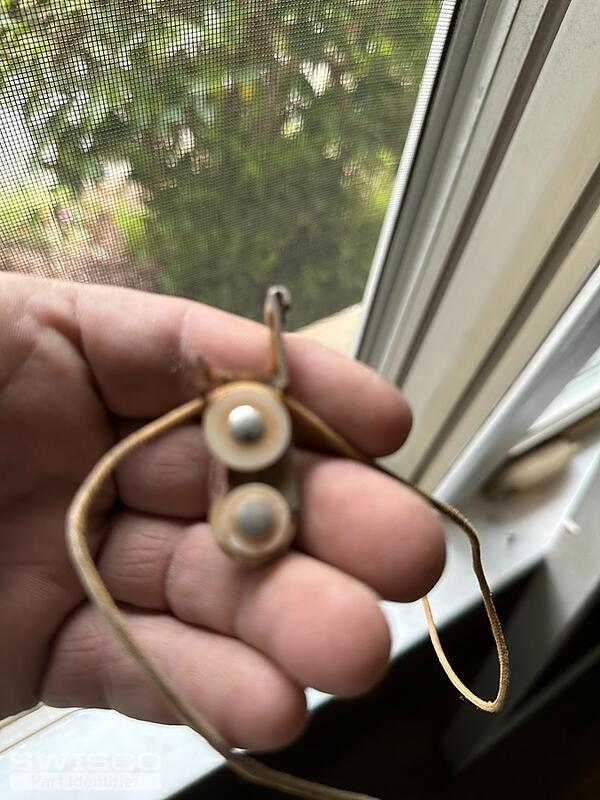

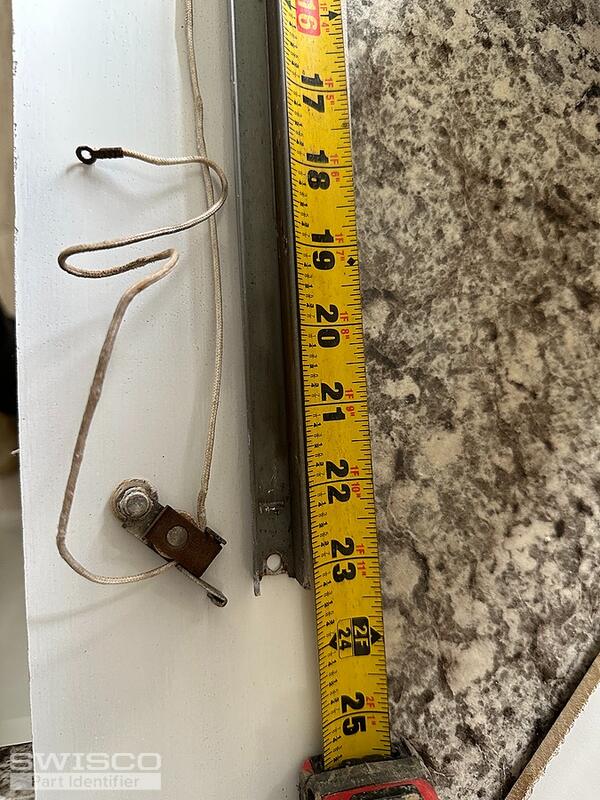

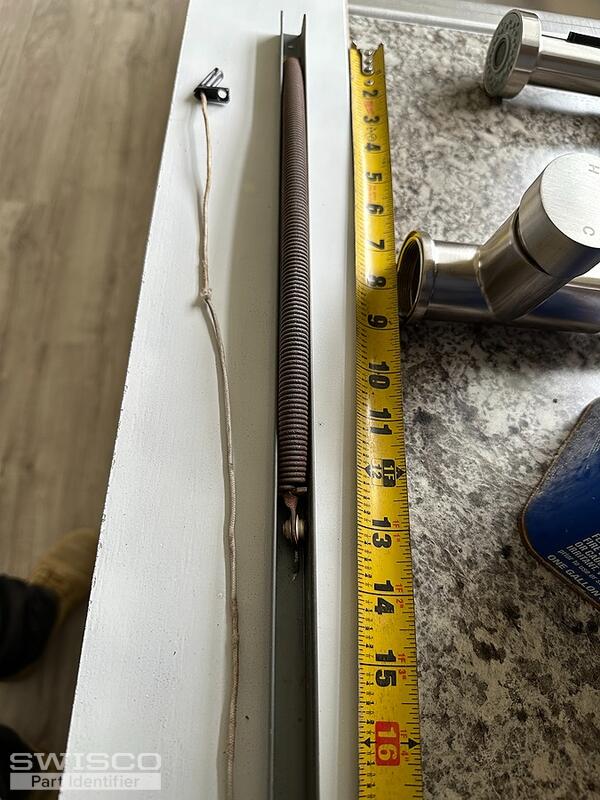

Hello I have two windows that need balances . 1 one is 20 lbs the channel is 23-3/8 long The second is 18 lbs and channel is 16-3/8 long . They are peach tree windows . Attached are pics of old balances
Thumbnail of the uploaded file named Image (7).jpeg
Thumbnail of the uploaded file named Image (10).jpeg
Thumbnail of the uploaded file named Image (8).jpeg
Thumbnail of the uploaded file named Image (12).jpeg
Thumbnail of the uploaded file named Image (9).jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:
May 26, 2023

Thanks for reaching out! Your balances appear to be a style of the Series 745 Peachtree Channel Balances. These come equipped with the 16-027 Balance Terminal Plug attached to them.

Alternate image for 16-027
Alternate image for 16-027

Based on the lengths you've confirmed, I recommend the S745-16 with a 15.25-6 Stamp (for windows weighing 18 to 22lbs) and the S745-23 with a 22.25-4 Stamp (for windows weighing 20 to 23lbs).

Although, you should be aware that the lengths of these balances are 16-1/4" and 23-1/4", respectively. So I would recommend double checking the lengths of your balances.
23-1/4" Peachtree Balance
23-1/4" Peachtree Balance
S745-23
$16.30
16-1/4" Peachtree Balance
16-1/4" Peachtree Balance
S745-16
$13.79
Peachtree Balance Terminal Plug
Peachtree Balance Terminal Plug
16-027
$1.38
