Channel Balance

Handy Person from Jersey City, New Jersey
Hi!

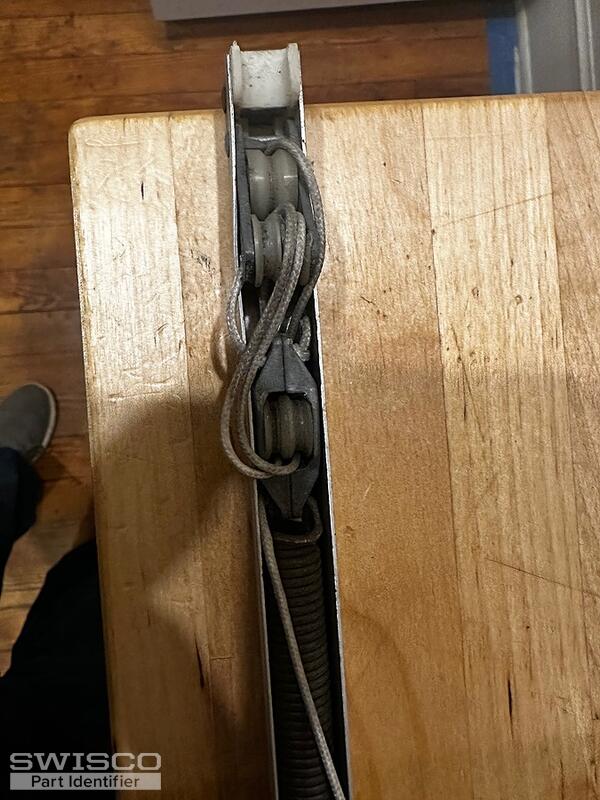

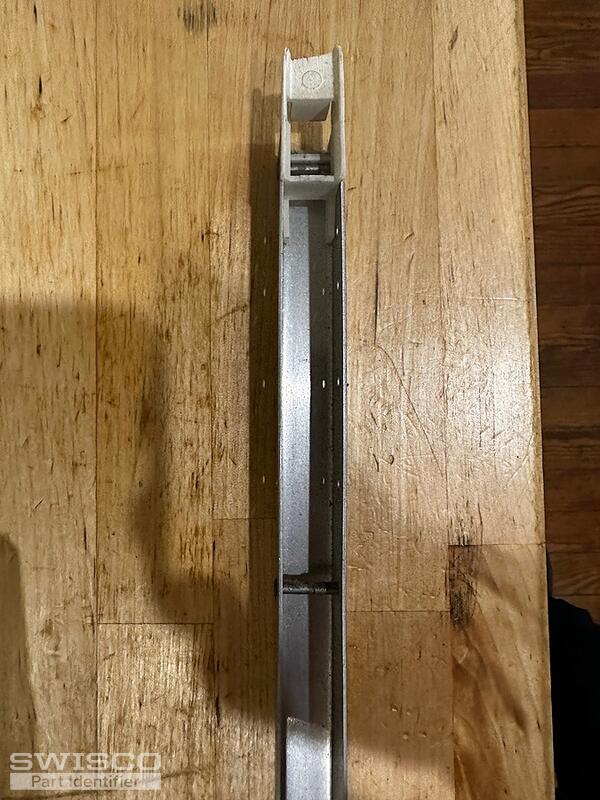

I have 9 old windows (I believe they are originally from the early 1990s. That require all new channel balancers. I need to replace 18 channel balancers, but I would like to purchase 20 so I have an extra set. Provided are photos that hopefully help with identification. Note that the overall rough length of each is 34 inches.

Length: 24.00 inches (tip to tip)
Model: 34B BSI

5 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It looks like you have either our S351, with a 15-002 bottom attachment, or S390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. With that being said, you referred to the balance length as both 34" and 24". Based on the 34B BSI stamp that you included, the metal channel length of these types of balances would generally be 35", not including the end fittings. I would recommend double-checking your length measurement to confirm the correct replacement. If your balance channels are 35" long, you'll also need 3420 spring strength options for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Handy Person from Jersey City, New Jersey
Hello Casey,

Thank you for getting back to me so quickly. You are absolutely correct, I mismatched the measurements. If I measure only the metal channel length without the ends, it is 35 inches.

As for the end piece (the "boot") it appears to be 1-1/8" wide. So that would mean I am looking for the S390 with the 15-001, and the 3420 spring strength option
Casey
Casey from SWISCO
SWISCO
Expert

Great, I agree that you would need the S390-35 channel balances with 3420 strength options. You are welcome to order them directly on our website or by giving our customer service department a call at (888) 991-1929.

Handy Person from Jersey City, New Jersey
Thank you again Casey. I just placed an order online via the website.

This was most helpful, I appreciate the assistance.
Casey
Casey from SWISCO
SWISCO
Expert

I'm glad that we were able to help! Just let us know if you need anything else.
