Channel Balance ID

Handy Person from Indiana

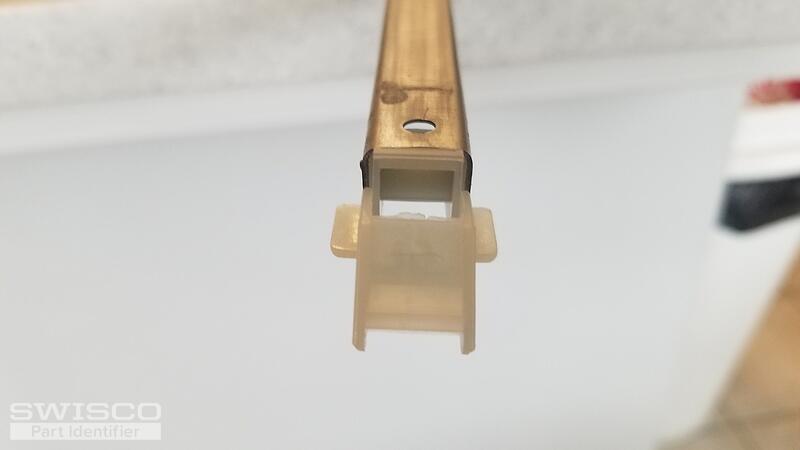

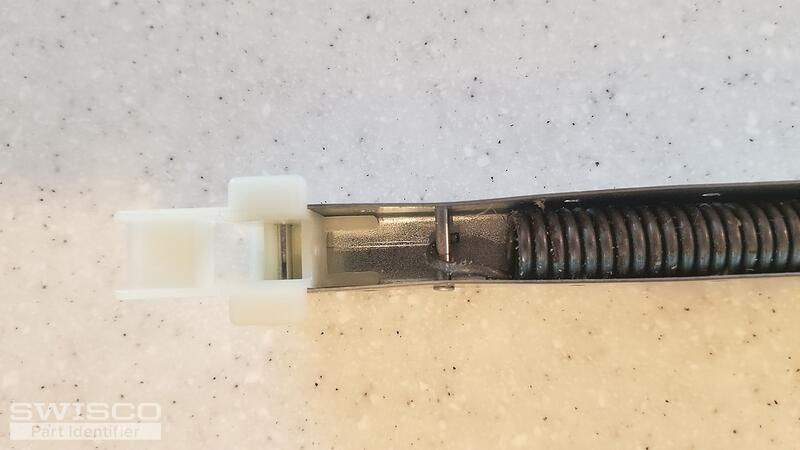

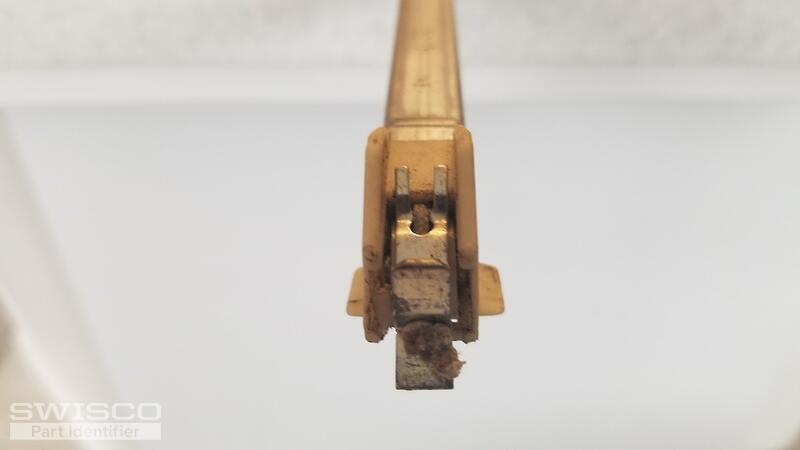

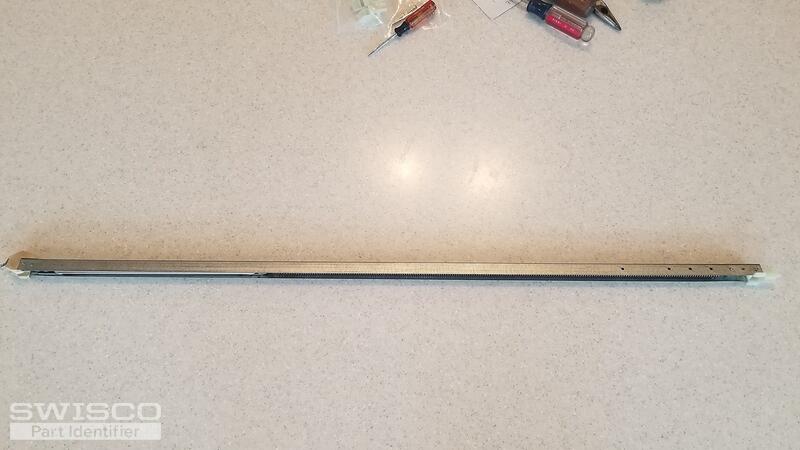

Metal U channel 33" 15/16

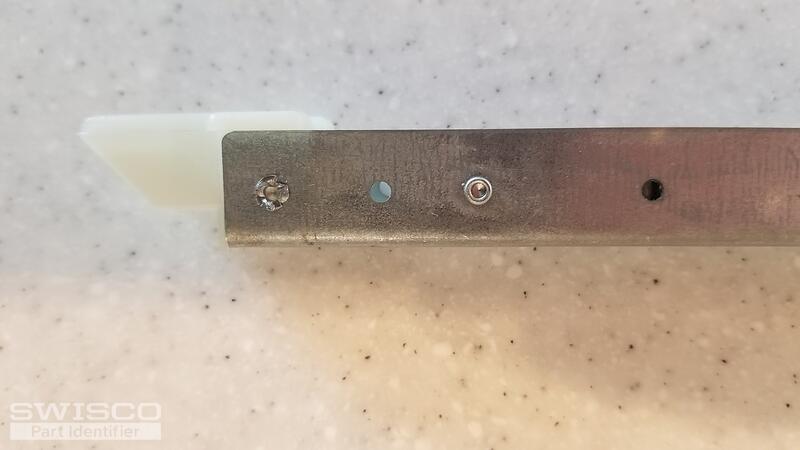

Markings 32 3 on D S I
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. We can replace this balance for you, but it has to be custom made due to its unique design. This is called an Extended-Travel balance, noted for its unique metal channel length and the fact the pulley system is embedded in the bottom please confirm the length of the metal channel.

Please double-check the length of the metal channel. Do not include the end fittings in this measurement. For a balance like this stamped 32-3, the metal channel should be 32-5/8" long, not 33". Please double-check your measurement to confirm. If the metal channel is in fact longer than this, please confirm the stamp code. A good picture would suffice.

Assuming however that the balance's metal channel is 32-5/8" long and the stamp is 32-3, then I am sending you an email with a purchase link to order a pair of these balances. Note too that the clip on our replacement balance is a slightly different shape, but it will work the same way. If you need a different amount, or have any other questions, please let me know here in this discussion. Many thanks for reaching out.
