Channel Balance Quote Request

Quick Learner from us

Full name: Daniel

Channel series: S380

Channel length: 45

Channel stamp: 44 5 HR CALDWELL

Quantity: 2

6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hi Daniel. I am confident we can help, but I want to be certain we know what you have. Can you show pictures of the fittings on every end of the metal channel? Can you also confirm the depth of the bottom shoe, or the 'heel-to-toe' measurement? We'll do our best to help from there.

Landlord from us
I had 6 pics but your limit is 5. Let me know if you need the 6th pic which is the top clip from the backside.

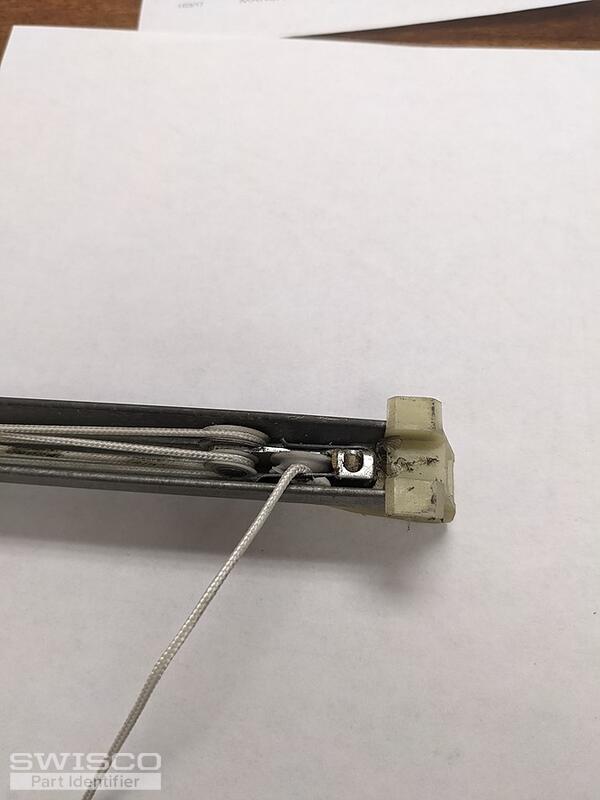

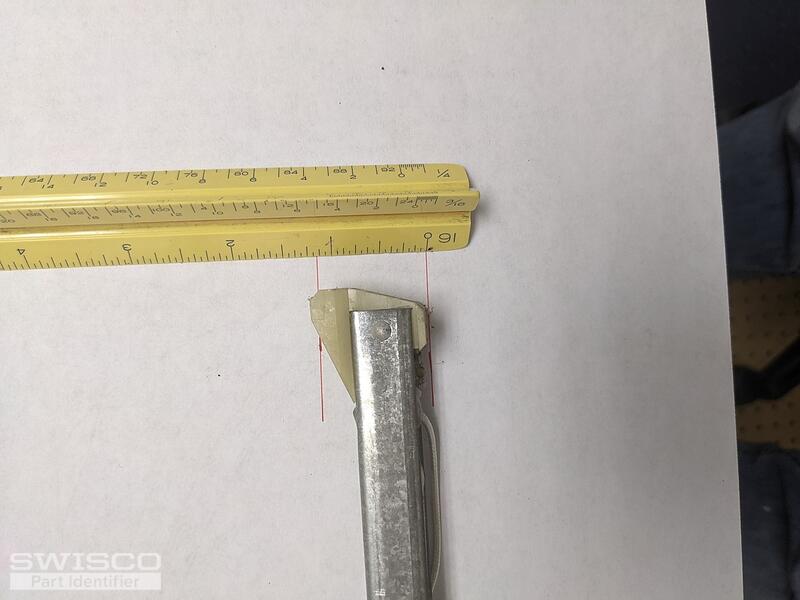

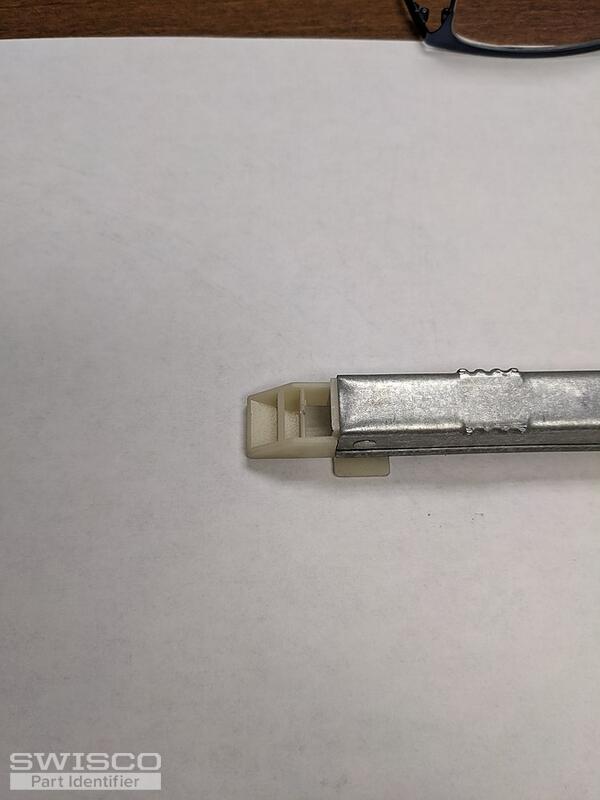

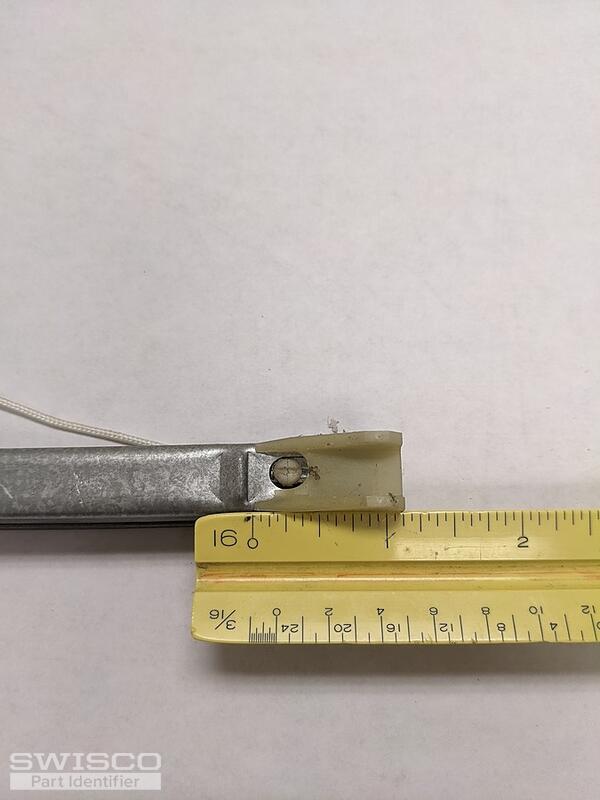

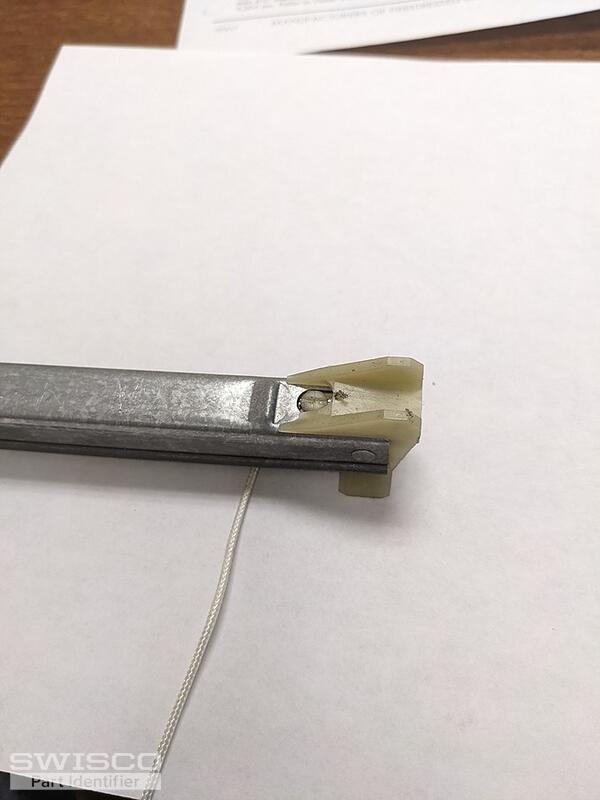

5 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for getting back to me. We can definitely furbish these balances for you via custom order. I just want to confirm a detail or two before proceeding. It looks like your balance's bottom shoe has a depth, or 'heel-to-toe' measurement, greater than 1". Therefore you may in fact need our Series 385, which has a shoe depth of 1-3/32"; the Series 380 has a depth of 1" exactly. See the image below for reference. Let me know what you have, and I'll prepare a quote for you right away.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Landlord from us
Yes the channel heel to toe is 1-3/32"
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for confirming. I just sent you an email with a custom link enclosed to order a pair of these 45" Series 385 balances, stamped 4450. Let me know if you have any questions prior to placing this order.
