Channel balance replacement

Quick Learner from Ca
Hi I am looking to replace a channel balance which has the following stamp 33 5 HO Caldwell. Could you please recommend which one should I buy?
2 user uploaded images
11 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

I can't quite make out your top fitting. We can help but I'd like to see a clear and up close picture of your top fitting to determine a replacement option.

Quick Learner from Ca
Hi,
Thank you for your response.

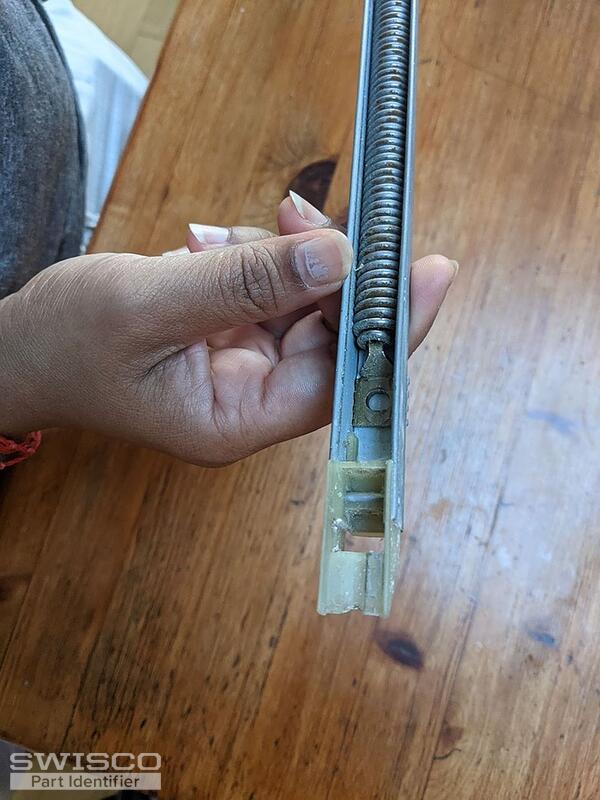

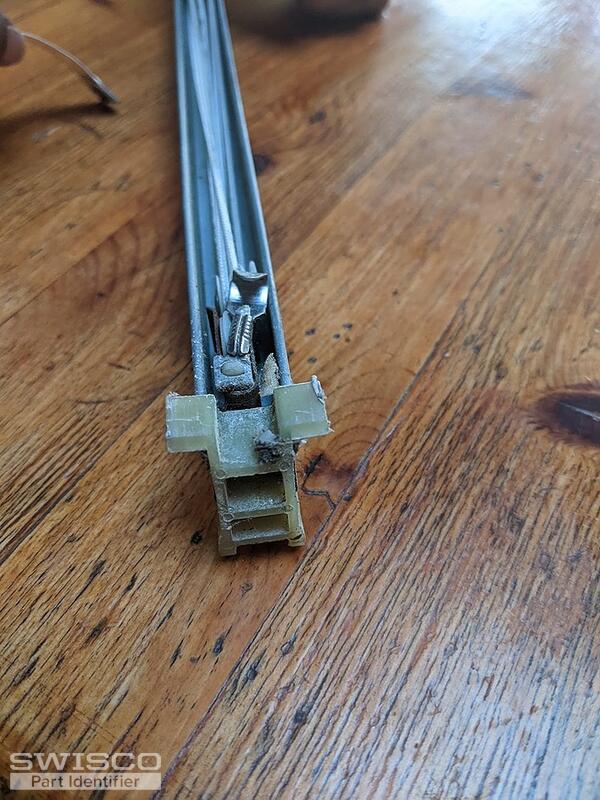

Here are the close ups of the bottom and top guides.
3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Perfect! I recommend our S350-34 channel balance with the 3350 strength option. Review the specifications and let me know if you had any questions.

Quick Learner from Ca
Thank you so much for your help.
I did order the balances that you recommended. During the installation, one of the top sash guides broke.
Could you please help me select the correct one to order a replacement?
Tom
Tom from SWISCO
SWISCO
Expert

Sure, we sell a ton of different top sash guides so there's a good chance we have what you need. The bad news is that the S350-34 that Emily recommended is compatible with almost all of them. Right now you could have anything.

Before we make a recommendation, I'd like you to remove an undamaged version of the original guide and show me a clear photo of it from the front and side. Think of it like a mugshot. From there, I will do my best to track down a compatible replacement.

Thank you!

Quick Learner from Ca

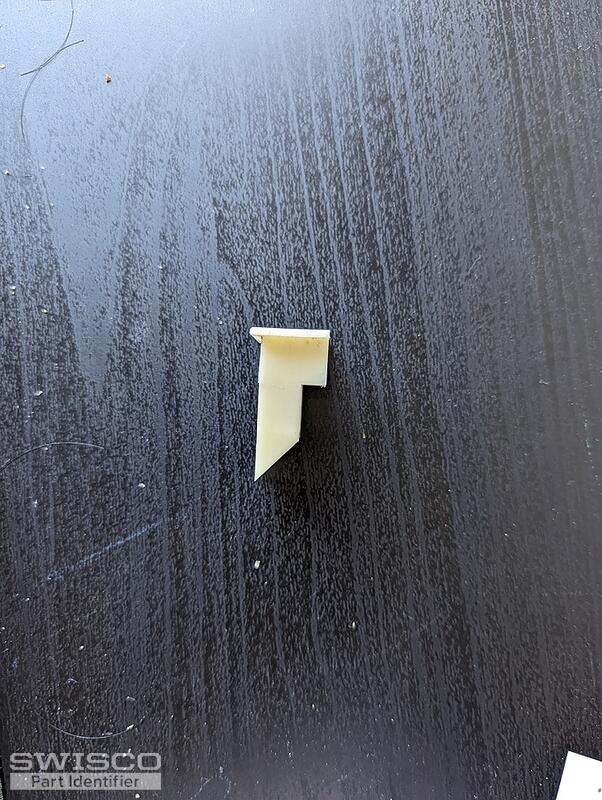

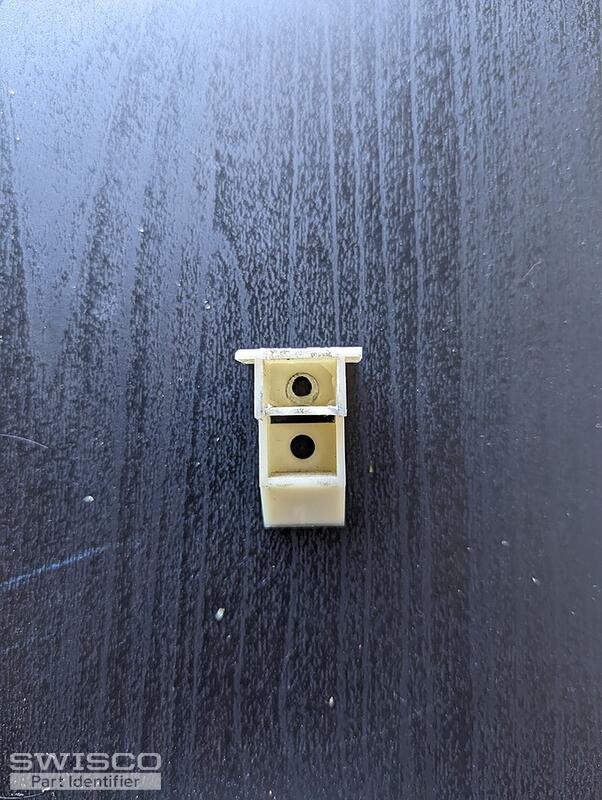

Thank you, I got the part out of the other side of the sash.
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Great, thanks for the additional photos. This looks like our 18-009 to me but look over the dimensions and compare them with yours to see if you agree.

Tom
Tom from SWISCO
SWISCO
Expert

Perfect, thank you so much! This is exactly what we needed to see.

Based on these photos I think our best option is going to be the 18-009. However, you should review our dimensions just to ensure that they all match up. That way you can be 100% sure. Review our diagram below and if our measurements differ in any way, just let me know how and we can work from there!

Detail of 18-009
Detail of 18-009

Side view of 18-009
Side view of 18-009

Quick Learner from Ca
Thank you so much, the dimensions match up. I will order this one then. thanks!
Tom
Tom from SWISCO
SWISCO
Expert

Awesome, glad to hear it! Please let me know if you needed anything else.
