Client's lock and handle photos

Question

Hello Swisco

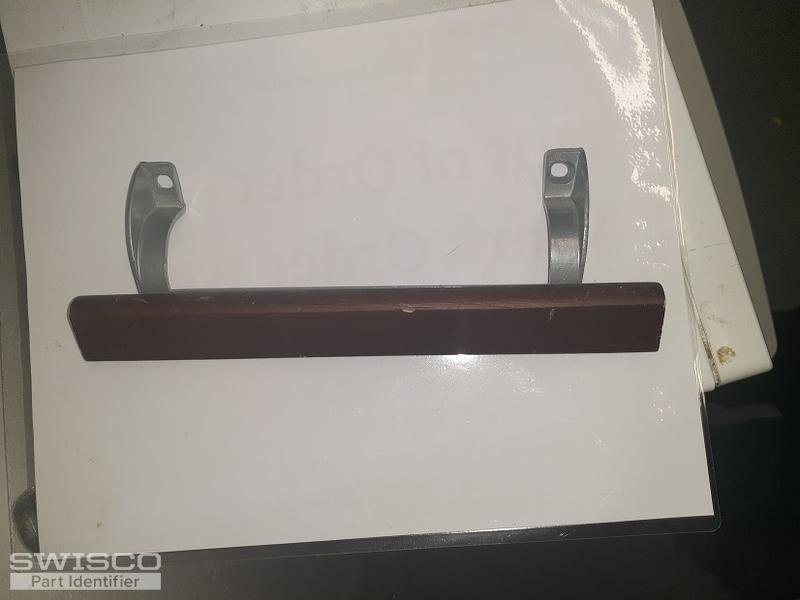

We have a client that needs to replace 3 sliding patio door locks and handles. The lock is stamped with "patent #919213". Attached are photos of the handles. We want to purchase the complete lock if it is available as a set, the lock and keeper appears to be part #82-211. I have also attached a photo of the lock case as well.

Please let me know if the complete lock/handle is available; alternatively, we can purchase the handle and purchase the lock case with the keeper.

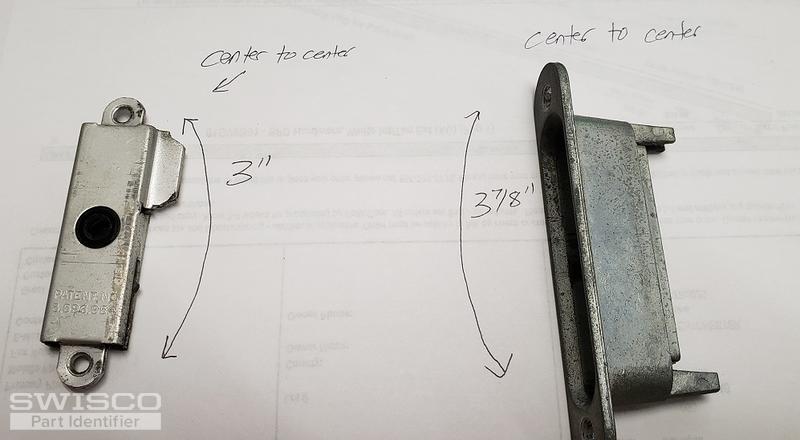

For the add-on door pull, the distance between the holes, as per our client, is 7 inches. We do not have the spacing on the handle set. Since we had the existing lock case in hand, I have attached a photo showing the case and the lock insert (it does not show the latch in the extended position), inclusive of hole spacing.

Tom · Accepted Answer

I agree that the 82-211 looks like a good match, assuming that the dimensions match up, but I'm less certain about the handle set. The base hole spacing is very important and not knowing it is an obstacle.

I recommend looking at our 82-035 to start out. I can at least confirm that it's compatible with the 82-211 mortise, but you'll have to review our dimensions to confirm whether it will mount to your door without having to drill new holes.
