Coil banalce

Handy Person from North Haledon

Oct 17, 2020 5:20 pm

Hello,

My windows might be around 40+ years old. White plastic with balance coil. Some of the snapped. The coil balance has 433 numbers engraved on it. Also plastics parts that coil is attached to. Please see pictures. I would like to buy 6 Pais to replace it. Also I do not know how many LB per balance coil is adequate. Should I go with 4lb or 6lb? Please help. Thank you.

3 Replies

+ Add a Comment

Casey from SWISCO

Oct 20, 2020 2:57 pm

EXPERT

Hello,

We'd be happy to help but, unfortunately, you photos did not come through. If you could send us photos of your pivot shoe and coils remove from the window, we'd be happy to recommend replacements for you. Thank you!

Handy Person from North Haledon

Oct 20, 2020 3:33 pm

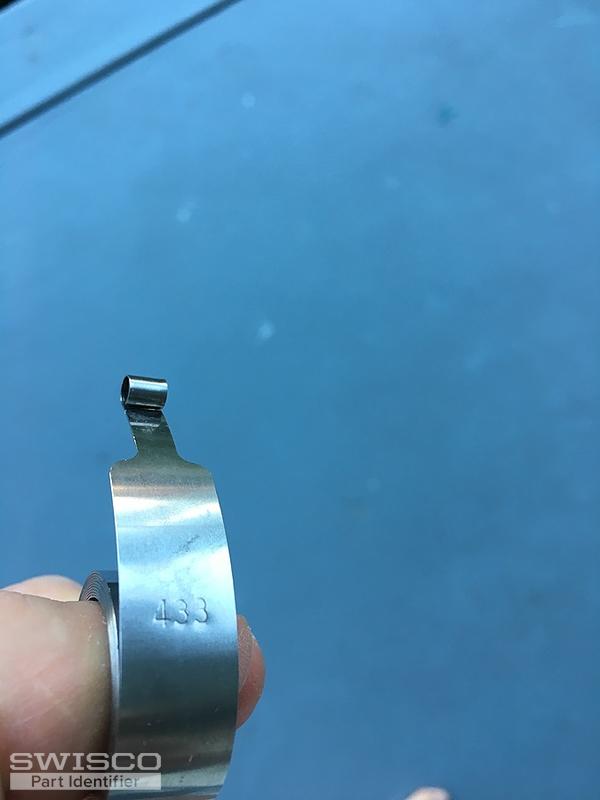

Here are photos

1 user uploaded images

Casey from SWISCO

Oct 20, 2020 3:54 pm

EXPERT

Thank you! The coil in your photo would be a match to our S150-4. The 433 stamp indicates that the coil supports 4 pounds and has 33" of travel. If you need other parts of the coil assembly, we'll need to see photos of them as well to compare to our inventory. Thank you!

+ Add a Comment
