Crank Handle Replacement

Contractor from Washington DC
Sep 20, 2023 5:26 pm

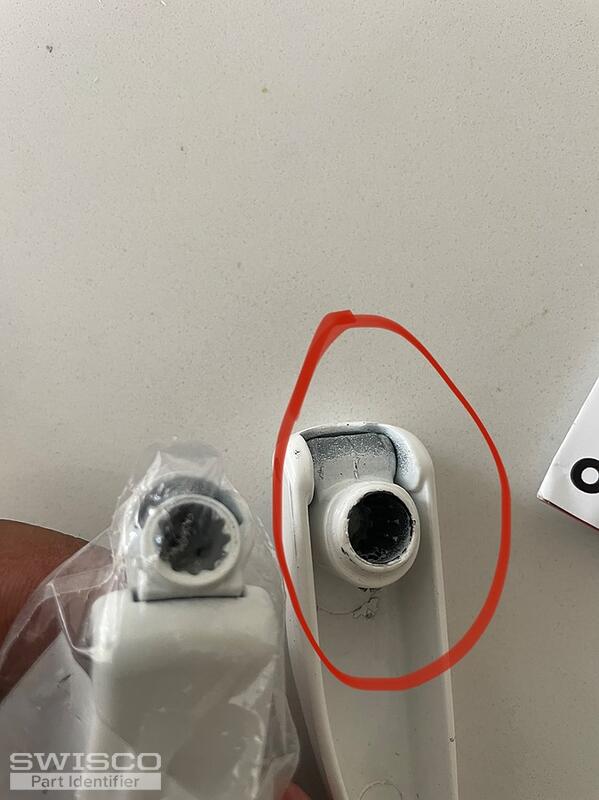

hi i'm looking for this part of the window, i need like this part that has the bigger fitting hole, the one in the package doesn't work. if u have please let me know. I need 4 left and 4 right.
I need both parts, folding handle crank with cover.
4 pices of left and 4 pices of right
D6FF270B-0F7B-4A28-BF80-CEF77AF4EA67
1 user uploaded images
5 Replies
Casey
Casey from SWISCO
Sep 21, 2023 10:54 am
SWISCO
EXPERT

Hello,

We'd be happy to look into this for you but we would need you to write-out the exact diameter of the opening in your handle that attaches to the operator base. It would also help to see a top-down photo of the operator with the window open so that the entire assembly is visible, which would help us determine which handle and cover options would be compatible. Thank you!

Contractor from Washington DC
Sep 22, 2023 1:48 pm

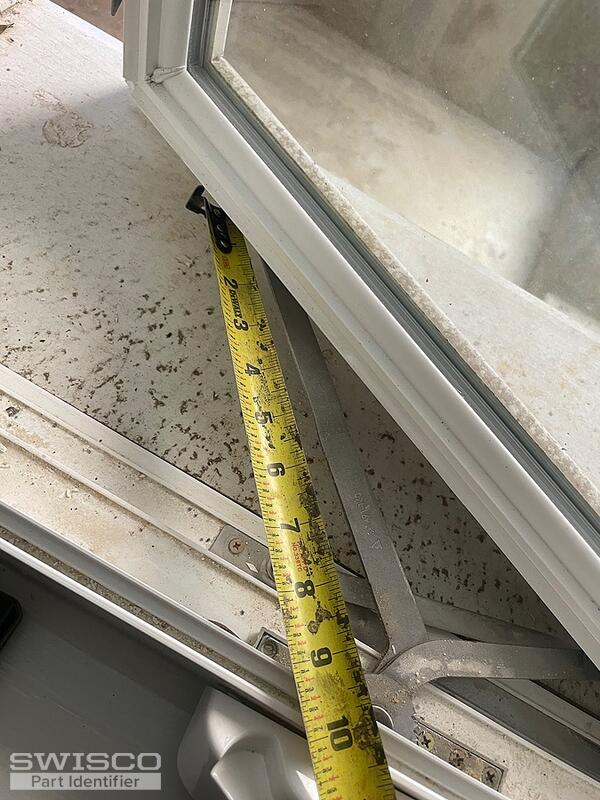

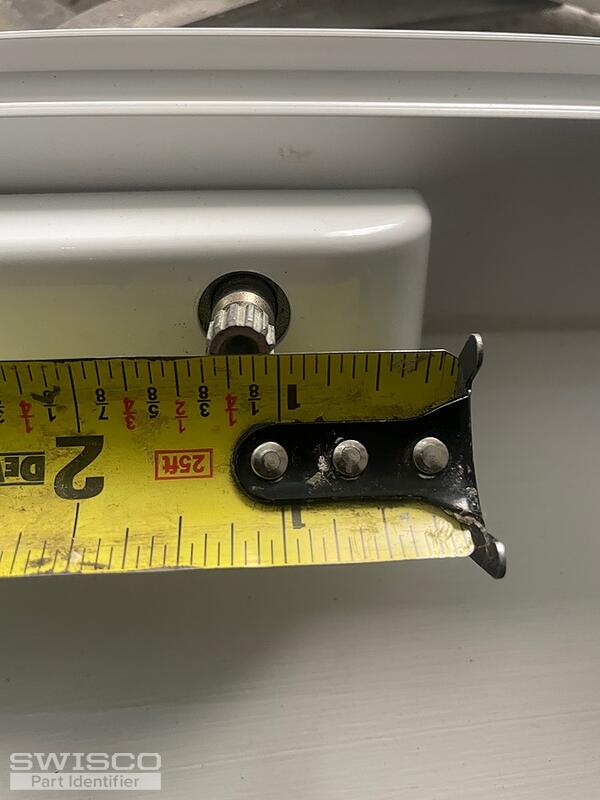

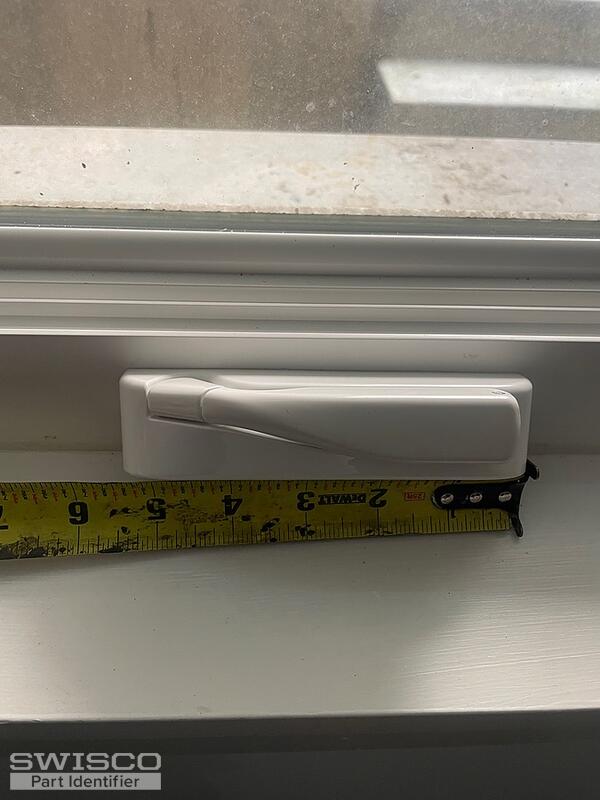

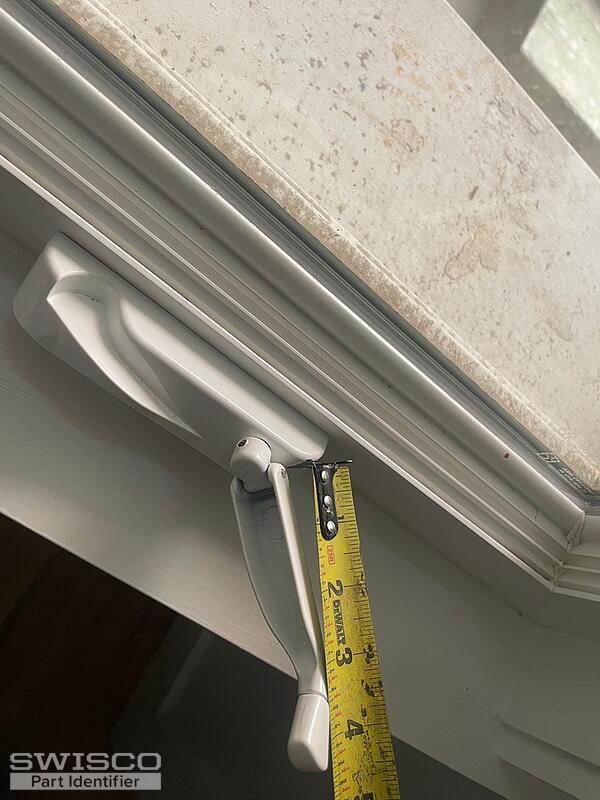

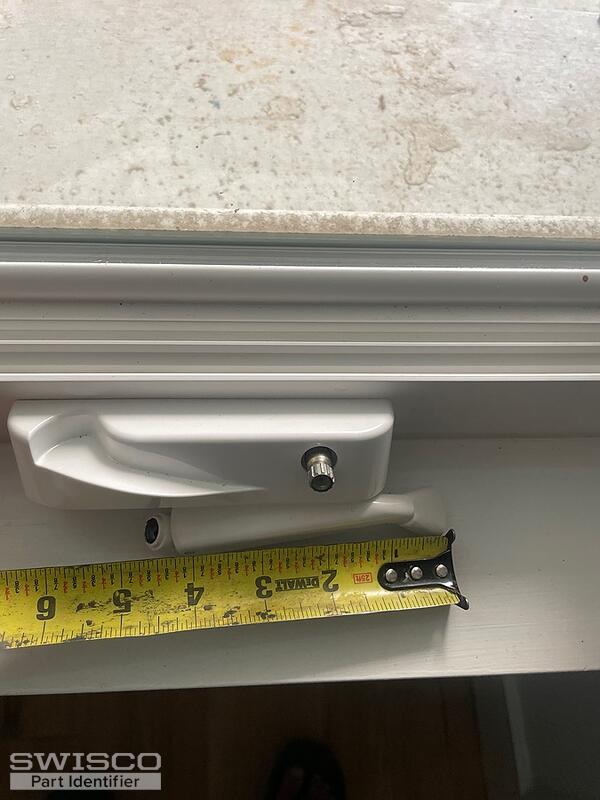

Okay, I'm sending more pictures.
9A0AD88D-753A-4E42-AF0D-CE54E52B397B 6ACA8D3D-C082-41BC-910E-BFFF8FC647E7 3E2A20AF-5A4A-4A8E-AC3F-02DF36508857 ADD65C38-3D03-49F4-9668-79D6F086C307 B6EB41A2-BF2D-483F-A55D-D5450BED62EB
5 user uploaded images
Casey
Casey from SWISCO
Sep 22, 2023 2:56 pm
SWISCO
EXPERT

Thanks for getting back to us. Unforutnately, we can't make out exact dimensions from photos but your operator resembles one of the Encore style operators shown in our video below depending on the type of fitting at the end of the long arm. Both pairs are used with the 39-375 and 39-376 handles and covers, which attach to 11/32" diameter operator splines. Take a look and see if these could work for your application.

Width measurement
Width measurement

View of the handle extended
View of the handle extended

Side view
Side view

Contractor from Washington DC
Sep 24, 2023 3:20 pm

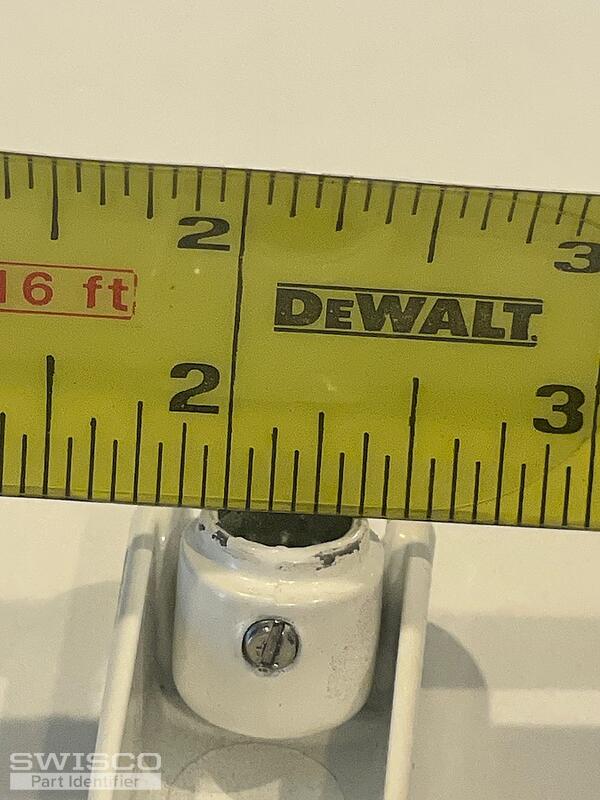

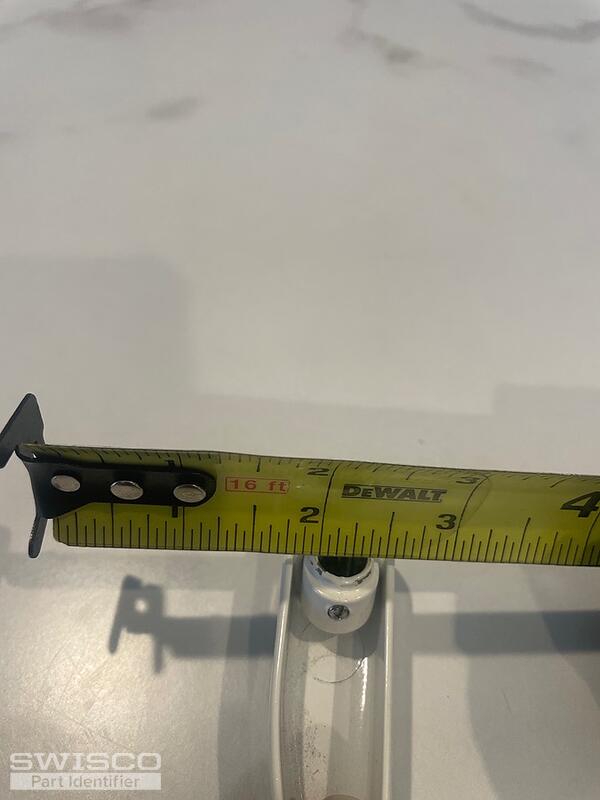

So, the 39375 and 39376 I already bought from you, and the one in the packaging in the first photo I sent you, but it didn't work, the hole that fits the pin is small, it would have to be wider, 3/8, like the photo in I'll send it now, and the cover, if it's 1/16 bigger than the 39375 and 39376, will be perfect.
8A7E2DD7-120A-4E1F-B51C-7F2142E7C9B8 B1DB5EF0-13FA-4CCD-999E-87307FEB33D5
2 user uploaded images
Casey
Casey from SWISCO
Sep 25, 2023 8:43 am
SWISCO
EXPERT

The only handle we have with a 3/8" bore size is the 39-104, but this is used on a very specific kind of operator. It also does not fold like your original part. I'm sorry that we are not able to offer a close match in the size that you're looking for.
