Custom Balance inquiry

Quick Learner

Mar 15, 2024 2:31 pm

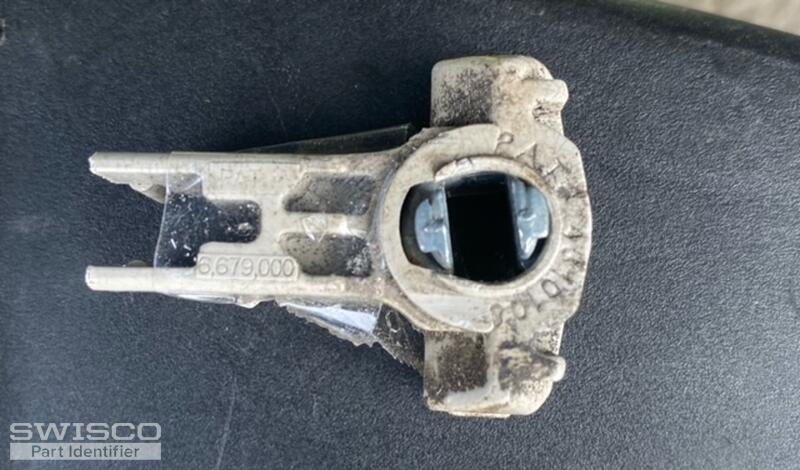

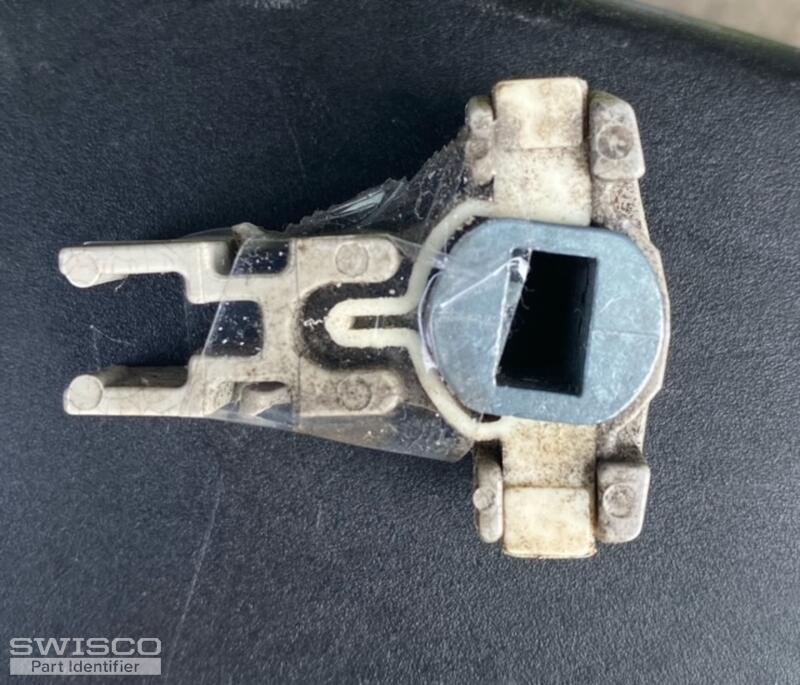

I'm seeking for the balance and shoe in the image that i provided in the attachment. I would also need to know if I need a custom balance or not?

image0 (10)

image1 (2)

image1 (1)

image0 (9)

5 user uploaded images

1 Replies

+ Add a Comment

Casey

Casey from SWISCO

Mar 18, 2024 1:31 pm

SWISCO

EXPERT

Hello,

Your channel balances resemble the S795 with the 15-195B open-cam T-lock shoe that is sold separately. See our video below showing how to swap out the stock 15-195 shoes. You'll also need to locate the stamps on your metal channels to choose the corresponding strength options for your replacements. Thank you!

Dimensions for 15-195B

Dimensions for 15-195B

Dimensions for 15-195B

Dimensions for 15-195B

Alternate view of 15-195B

Alternate view of 15-195B
