Door is scraping bottom, occasionally

Professional from Florida
Jun 19, 2020 12:13 pm
Only name I can find is on closer which says "Parker"

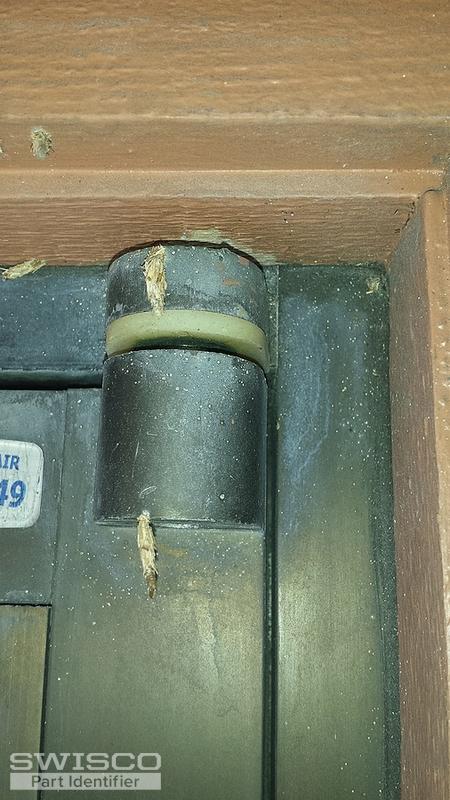

20200619_113738 20200619_113803 20200619_113811 20200619_114010
4 user uploaded images
3 Replies
Tom
Tom from SWISCO
Jun 24, 2020 3:07 pm
SWISCO
EXPERT

Looks like you need a new commercial door pivot, though I don't know exactly what this is based on your photos. I recommend looking through our complete selection here to determine if any of our parts match up.

Professional from Florida
Aug 13, 2020 3:40 pm

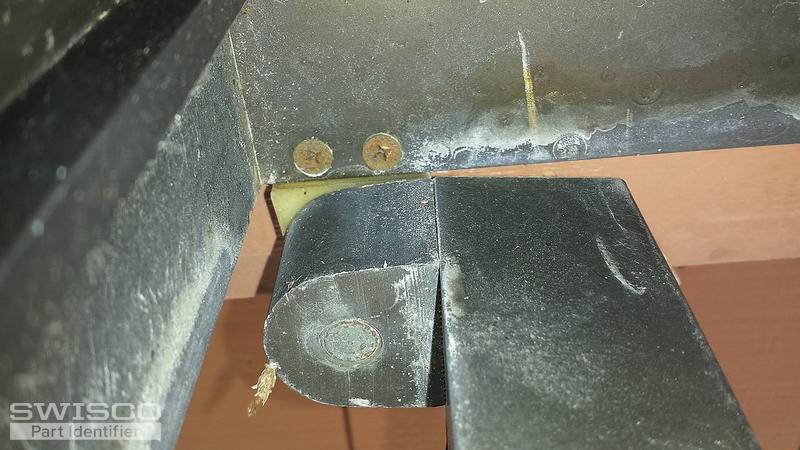

Going to try again. This is inside looking up at top hinge. Screws are 5/8" apart...center to center. When I'm inside, the hinges are on the left and the door swings to the outside. I think it's a flush mount? What would you recommend?I need top and bottom.
Thanks
Top inside door
1 user uploaded images
Dave Sr.
Dave Sr. from SWISCO
Aug 19, 2020 9:02 am
SWISCO
EXPERT

I believe the 79-121 pivot set is the one that best matches the one you need to replace. Take a look at the information we show on its store page and see what you think.

Take note on installing the lower threshold pivot: I would leave the angle portion of the pivot in the door frame. Best to drill out the screw heads if you cannot unscrew the bottom threshold part.
