Existing Balancers are missing, and I don't know what to get to replace them

Question

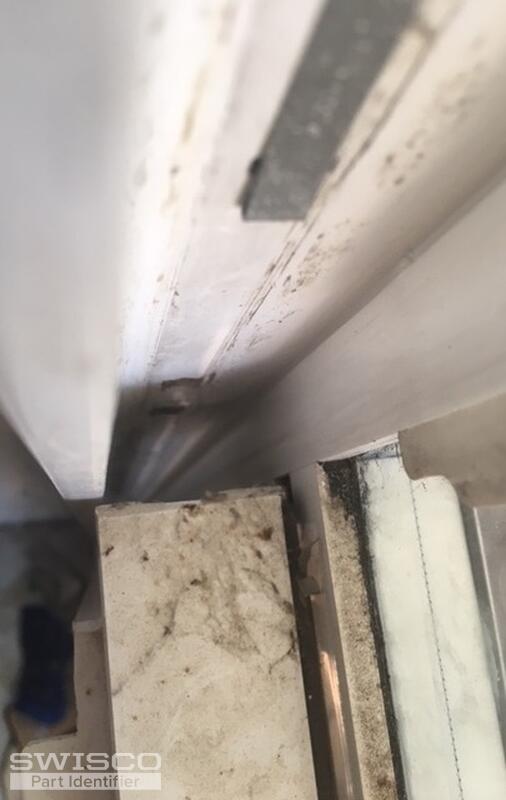

Opening in window portion is 5/8" there is a 1/2" gap on either side to where it connects to the frame. I know I need a 28inch channel balancer but I don't know which one specifically. Including photos.

Tom · Accepted Answer

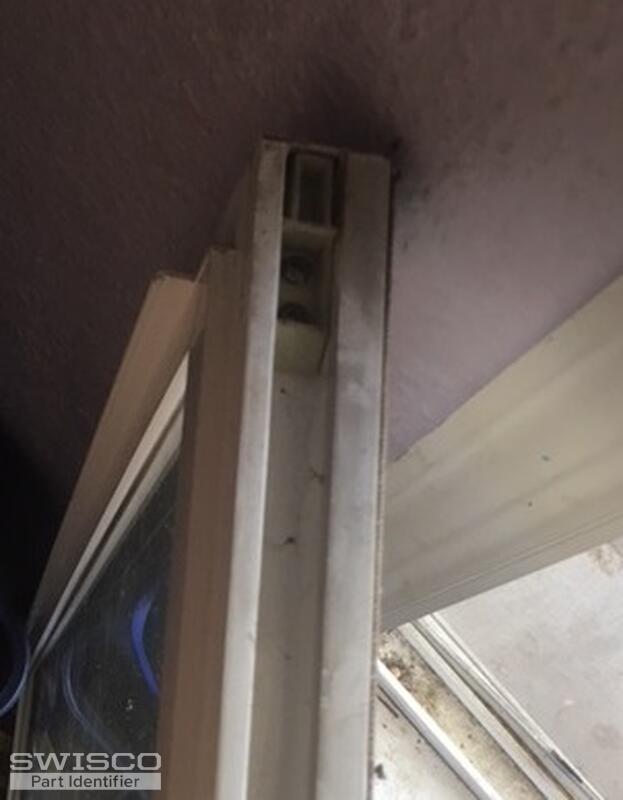

Without having the original balance on hand, it will be very hard to identify what you need. We will do our best, though. I see you have our 18-171 top sash guide. This is popularly used with our Series 385 channel balance, though not exclusively so. I think it's a good place to start for a lot of reasons, but I'll go into that later.

Before we go any further, we'll have to figure out what kind of Series 385 you need. Please tell me the height of the visible glass and the weight of the sash. That will allow us to determine what length and spring strength you need.
