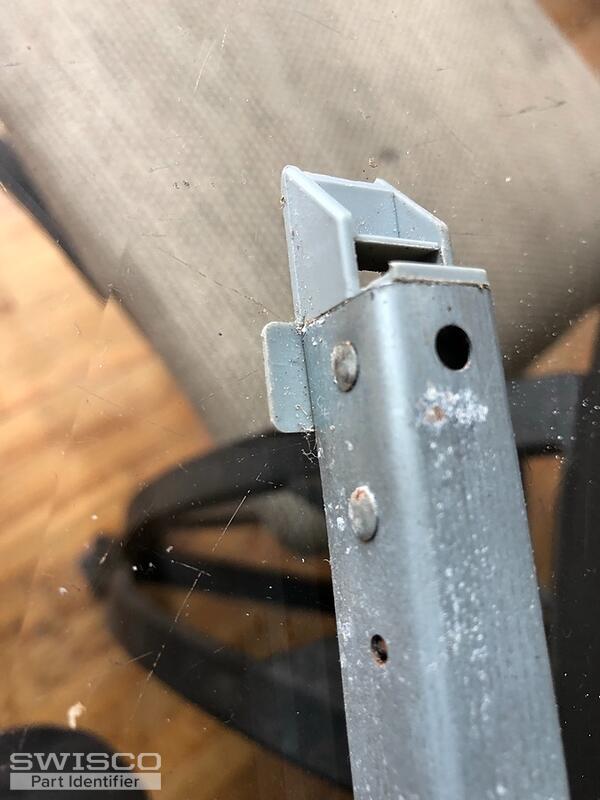

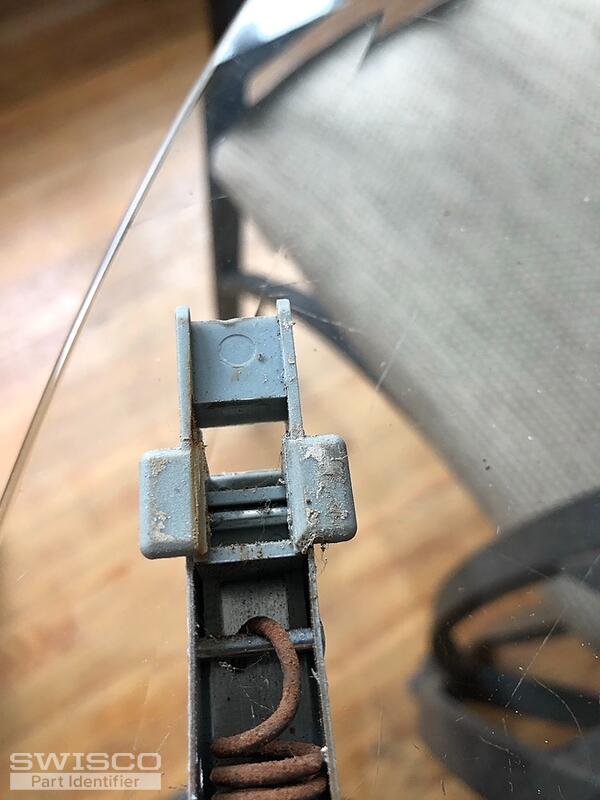

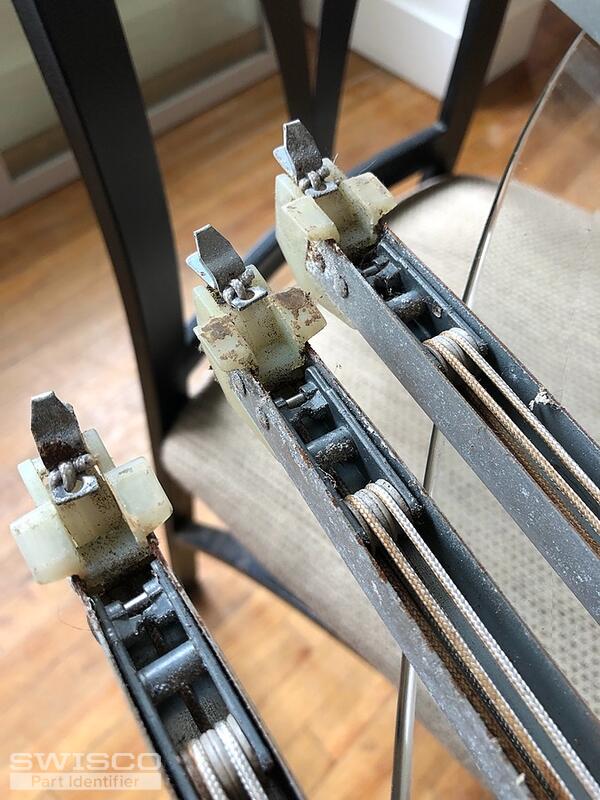

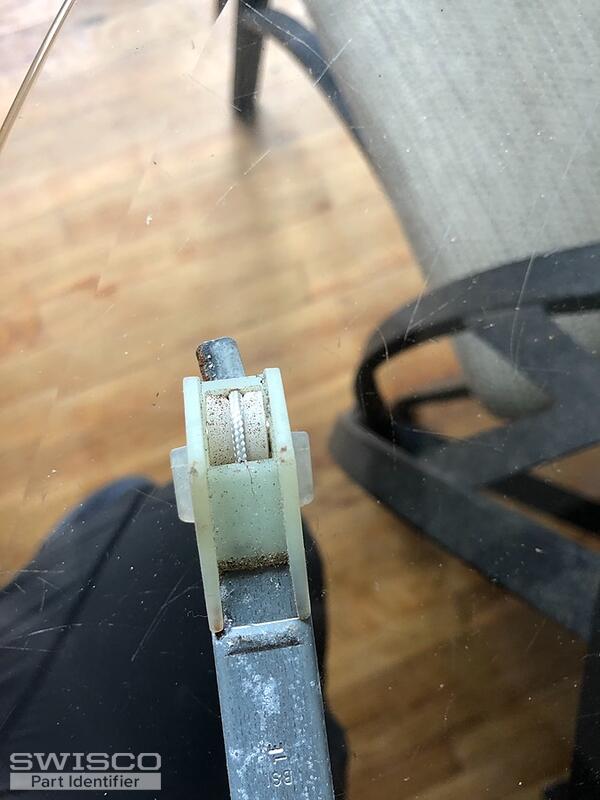

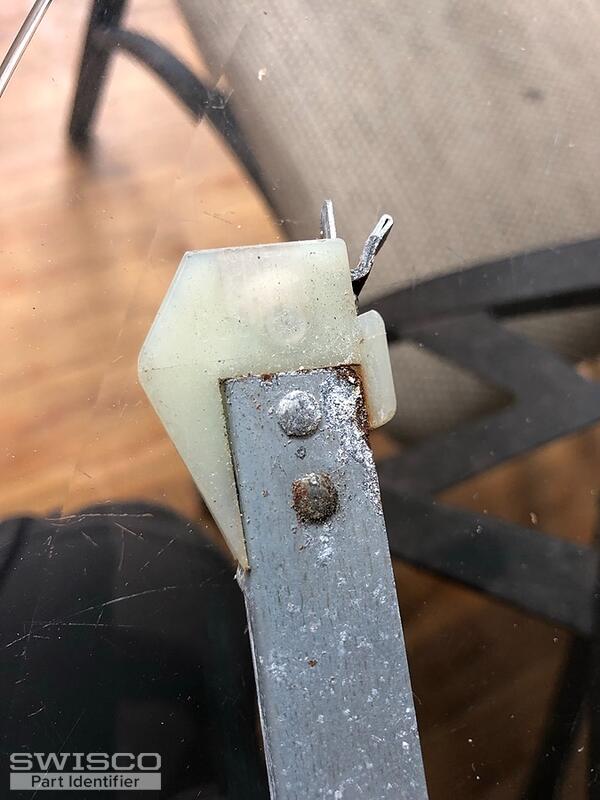

Length of metal Channel 22 5/8 inches??.stamp on channel 22. 3. Bsi. Te???.manufacturer unknown.
Windows height and width. 2 windows are 28 wide x 26 1/2 height?..2 windows are 34 wide x 26 1/2 height .
Would like to get 4 sets or eight of the balances.
Thank you in advance.
Extended-Travel Channel Balance Quote
Quick Learner
Nov 2, 2021 5:31 pm
5 user uploaded images
4 Replies
Bob from SWISCO
Nov 5, 2021 11:07 am
Thanks for posting. I just sent you an email with a purchase link to order eight of these Extended-Travel balances stamped 22-3. Let me know if you have any questions prior to placing this order. Many thanks.
Contractor from collierville, tn
Jan 12, 2024 1:30 pm

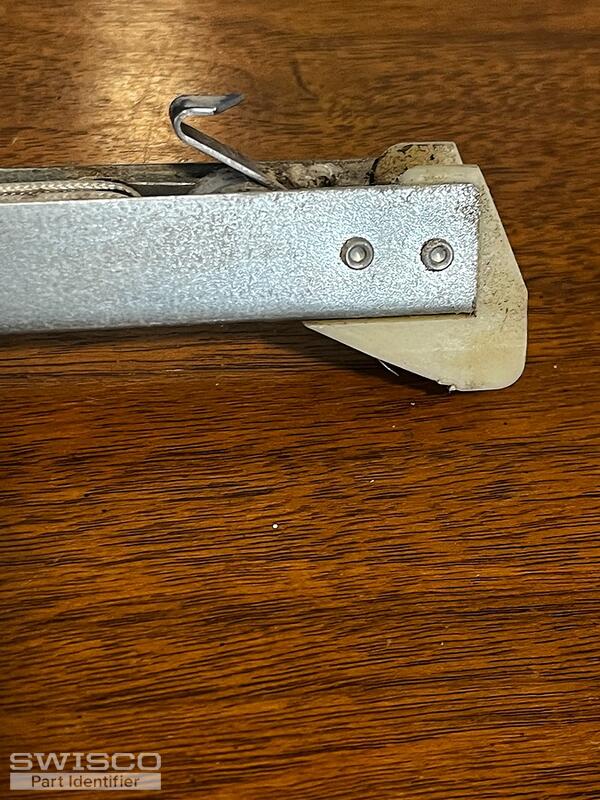

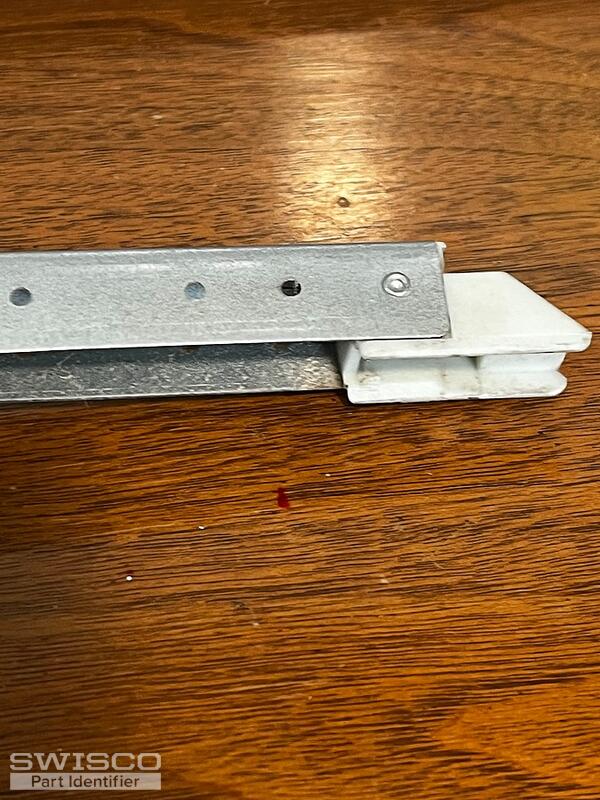

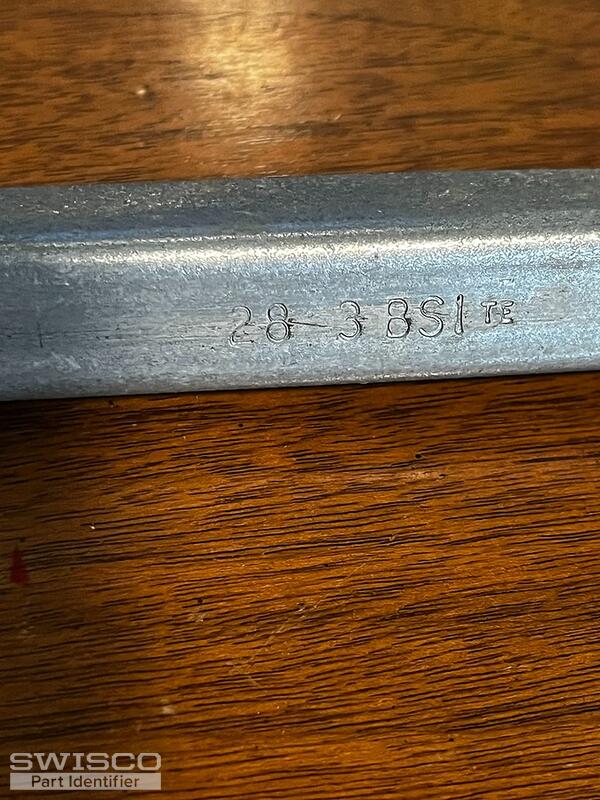

I also have these balances with this stamp but mine are 28 3/4" in length. Which ones do I need or would these be custom? The shoe is 1 1/8"
3 user uploaded images
Tom from SWISCO
Jan 16, 2024 10:54 am
Your balance appears to be a very different design compared to the one shown in the previous customer's photos. Yours looks like a typical block and tackle channel balance, aside from length. See our Series 390 and Series 351 for two examples of what I mean.
28-3/4" is a very peculiar size for this design and it's not something we can supply even as a custom order. I highly recommend that you triple check that measurement just to be safe; based on your stamp, the metal channel should be 29".
