HERCULITE Patio Door Hardware

Question

To whom it may concern:

I checked my patio door and found that it was made by HERCULITE. :)

I know this is a stretch as the year on the part goes way back when your company just started out based on the website information, but I'm hoping to find this part.

I've sent five photos with as much info as possible.

Thank you looking forward to hearing from you.

Tom · Accepted Answer

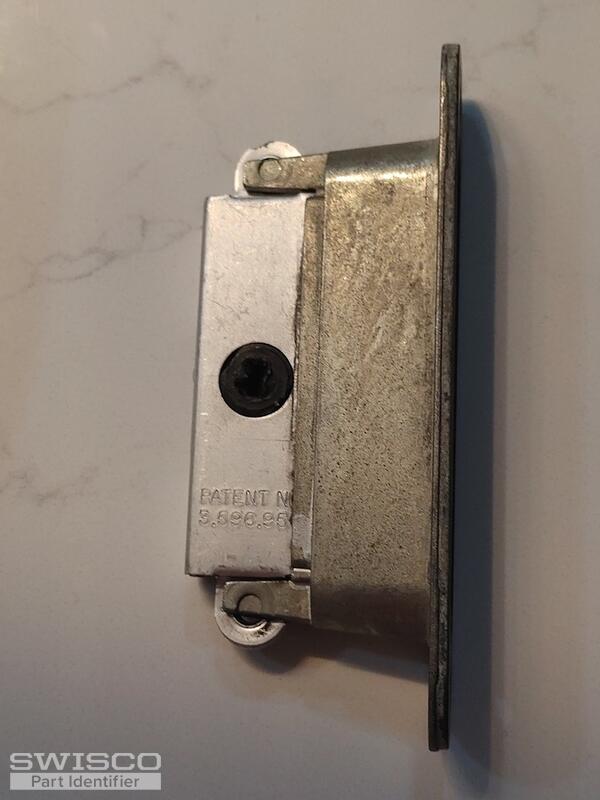

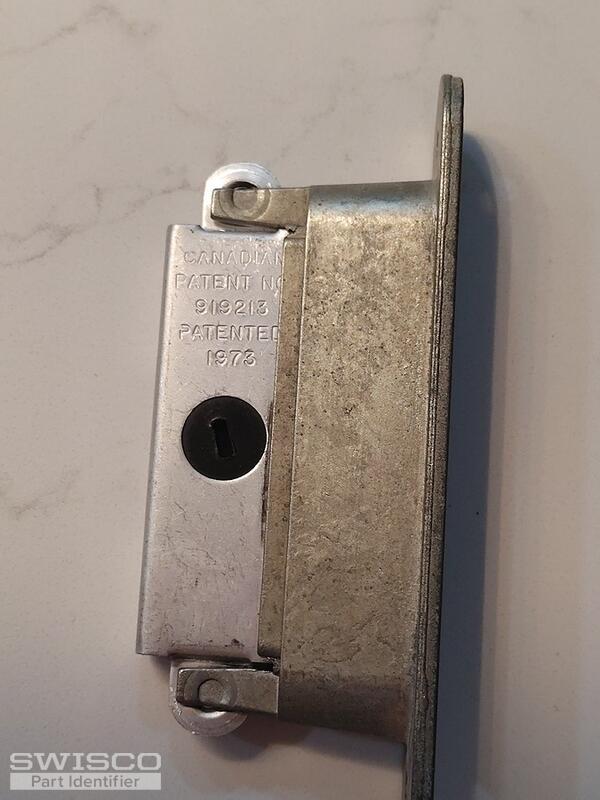

Hello! Looks like you need a new patio glass door handle and mortise. Starting with the mortise lock, yours appears to be a match for either our 82-211 or 82-214B, depending on size. Look over our specs for each to determine the best option.

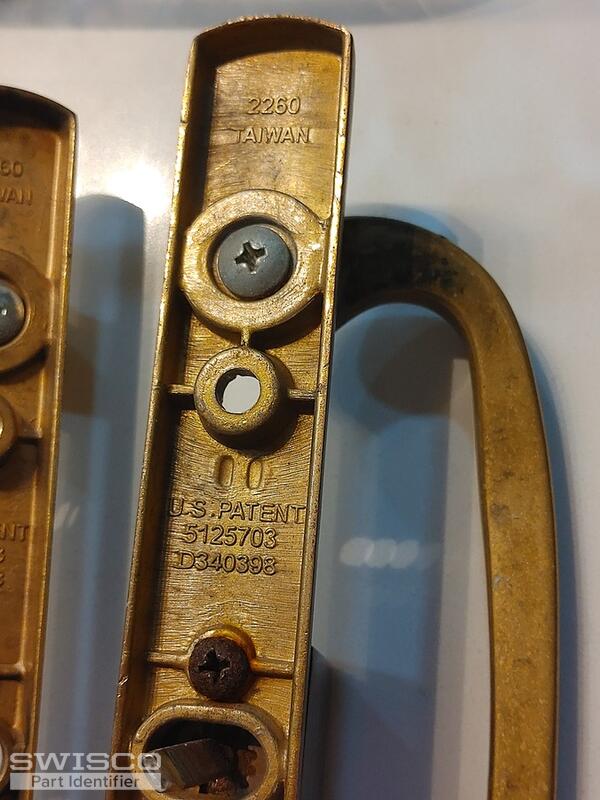

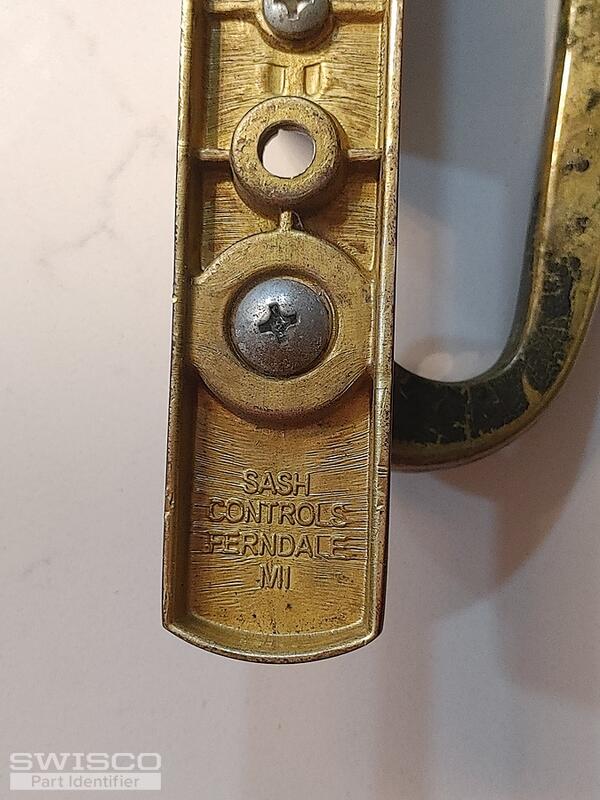

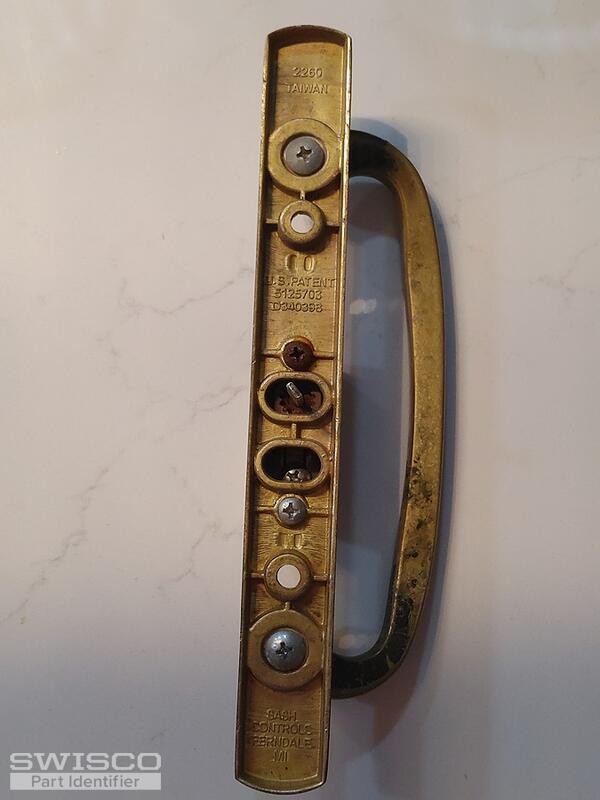

As for the handle, I'm reminded of our 82-087 at first, but you should check to make sure that the thumb lever is in the same position. Ours is offset to be in the bottom position and cannot be adjusted, so if yours is centered then ours will not work. We can still help in that circumstance, but check first just to be sure.

One last thing to note: Herculite is a company that makes glass, but not doors. Your door manufacturer is very likely to be someone else, though these are generic parts so I'm not sure who. Just something to keep in mind as you move forward with this project, or any other projects related to this door in the future.
