HK Window Channel Replacements

Thanks for reaching out! I am unable to identify the balances you need based on the stamp alone. The stamp only indicates the weight range your balances should be able to support based on the weight of the window.

Also, we are not familiar with the HK window brand. I am not sure that they are who made the window. If you can piece together even some of the broken tops and bottoms, that would be of great help.

If not, are you able to confirm the brand of your window?

Thanks for your photos. Are you able to provide a photo of an undamaged balance. To be able to confirm the right replacements, I'll need to see which balance the black shoe is attached to and I'll also need to see an undamaged blue shoe as well as the metal channel it is supposed to be attached to.

I am confident we can provide you with the replacements but I'll need to see these photos to recommend the best possible replacement.

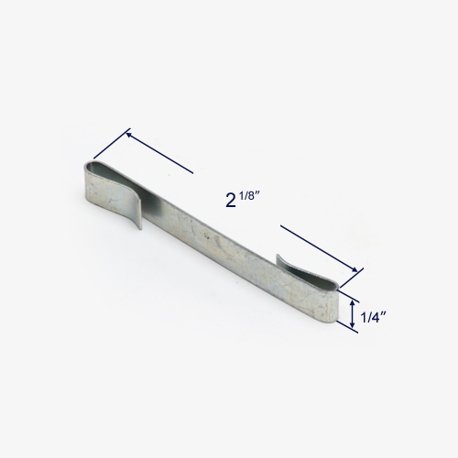

The metal clip you have pictured here is the Long S-Clip, part 19-030. Look over the dimensions to confirm that this is the right fit. I am confident this is the replacement clip you'll need.

Alternate image for 19-030

The sash stop appears to be part 55-110. Please be aware, it is only available in white.

Dimensions for 55-110

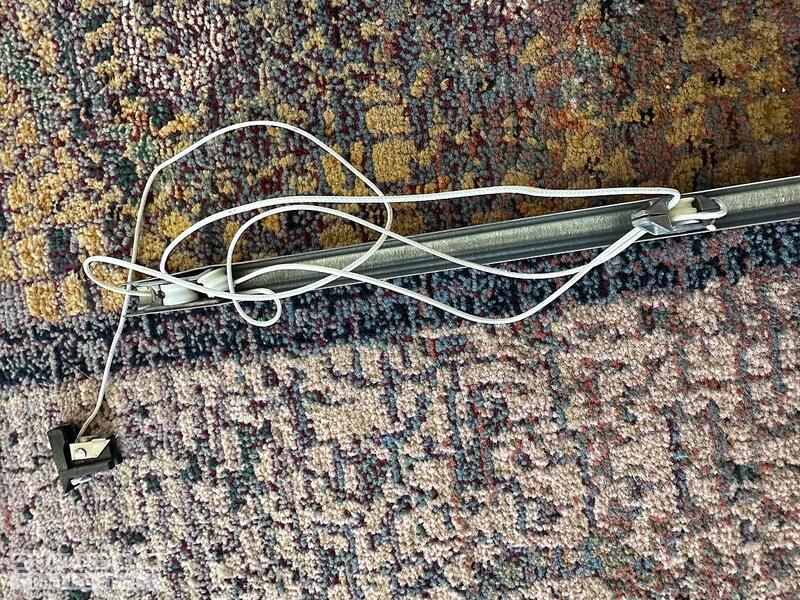

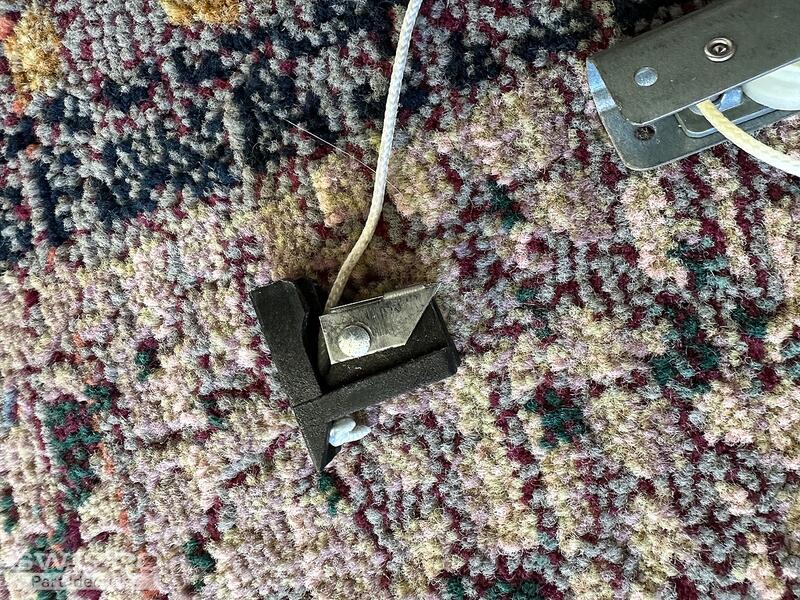

Thanks for confirming. It looks like you'll need the S751-30 channel balance. This comes with a black knife lock shoe like your original balance.

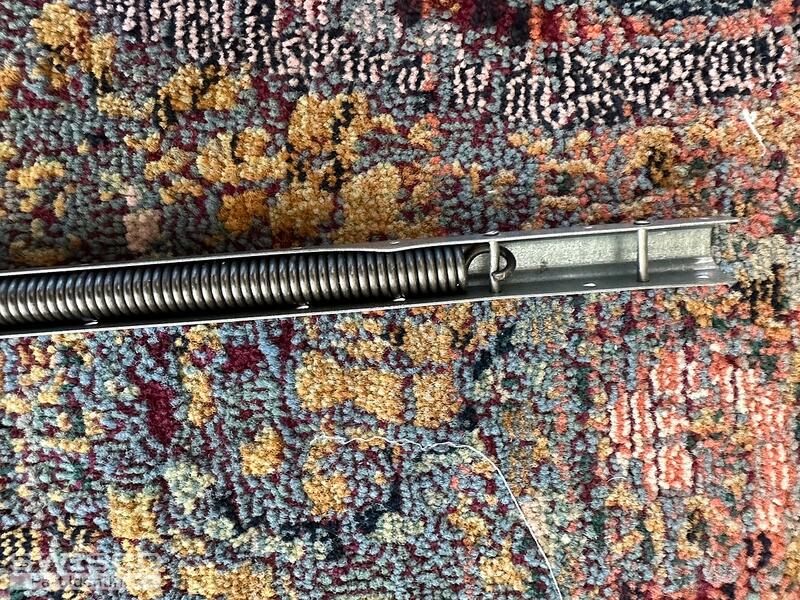

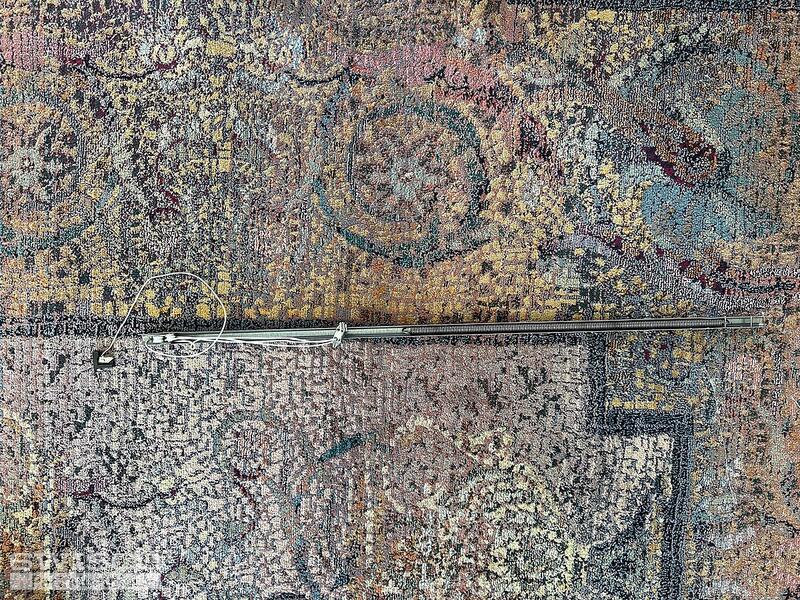

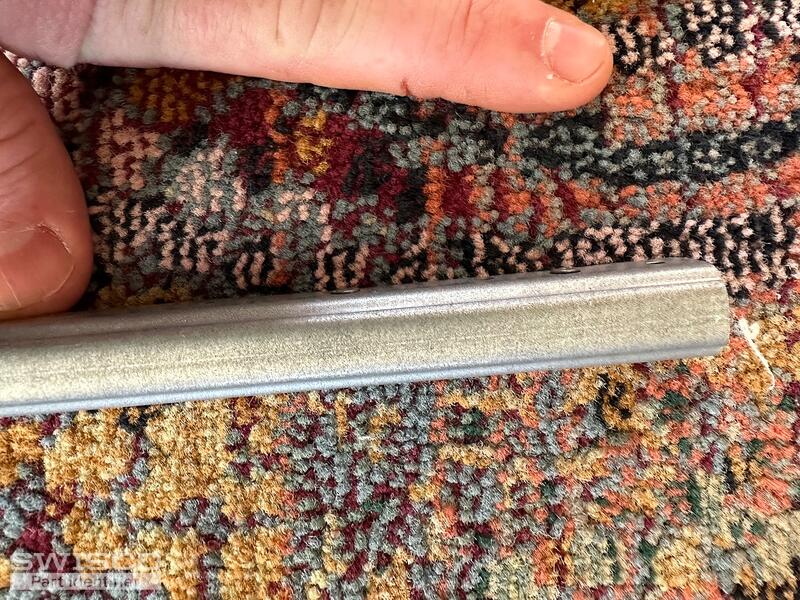

I am not able to see any stamps/marking on the metal channel of your 30" balances. Are you able to confirm the stamp? If not, you'll need to obtain the exact weight of your window. Then you'll use the chart below the product description of the balance confirm the stamp based on the the range weight your window falls between.

It is likely, you have some version of the Series 751 balance for the 33" balances, but I'll need to know the type of shoe attached to the balance to recommend the right replacement. If you believe it is the same as the black shoe, you'll need the S751-33 but if it is the blue shoe, I'll need to see an undamaged version. Also, I can't cross reference your existing stamp, unfortunately, so you will need to obtain the window weight to select the right stamp.

Do you know which balance the blue shoe came from? If so, would there perhaps be another balance in that window that might still be intact?
