Bob from SWISCO responded:
April 16, 2020
Take a look at our 21-098 Top/Bottom Hinge Pair. Let me know what you think. |
the 21.098 looks like the one that I am trying to replace. However I do not know what the sizing is. If the hinge is thought of aeroplane wings the centre of the inner srew holes are 15mm from the edge of the wing by where the fusulage/wing root would be. The outer screw hole is 50mm from the where the ring root would be
Tank you Andrew
Ps I sent you photographs on graph paper to try & give sizing of my part. Do you have measurements of the 21.098?.
|
|
Bob from SWISCO responded:
April 20, 2020
Hey Andrew. The distance between the center of each mounting hole on the wings of the 21-098 is 2-7/16". See if that matches your old pair. Either way I do believe this is the closest match we have to your old hinge pair.
Dimensions for 21-098
|
To Bob.
Thank you for the hinge sizing information.

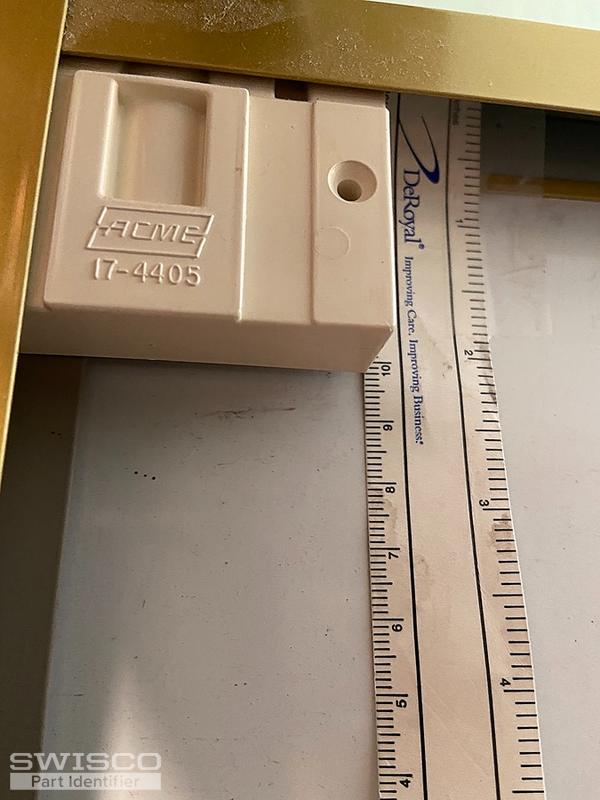

Can you also tell me the sizes of your part 23-407. I am trying to work out if it will be a good replacement for my ACM 17-4405. Jasmine was kind enough to let me know that this is a suitable replacement.
Thank you Andrew
|
Tom from SWISCO responded:
April 23, 2020
All dimensions for our 23-407, and most other products in our inventory, can be found on their respective store pages. Most products have multiple images that you can cycle through to examine specific details. I will also post the dimensions for the 23-407 here for your convenience.
Dimensions for 23-407
|
