Hybrid Balance Quote Request

Quick Learner from us

THESE ARE FOR A SCHOOL, THEY MAY WANT MORE. PLEASE ADVISE ON AVAILABILITY. THANK YOU

~~~~~~~~~~~~~~

Balance length: 30 1/2

Balance stamp: NONE

Balance color: gray

Quantity: 2

6 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We should be able to help with this, but your balances should have a stamp printed on the tube. All Hybrid Balances were made with a stamp without exception; if you don't have one, it's not a Hybrid.

In that situation we will require photos of the original balance so that we can ID what will work best for these windows.

Professional from us

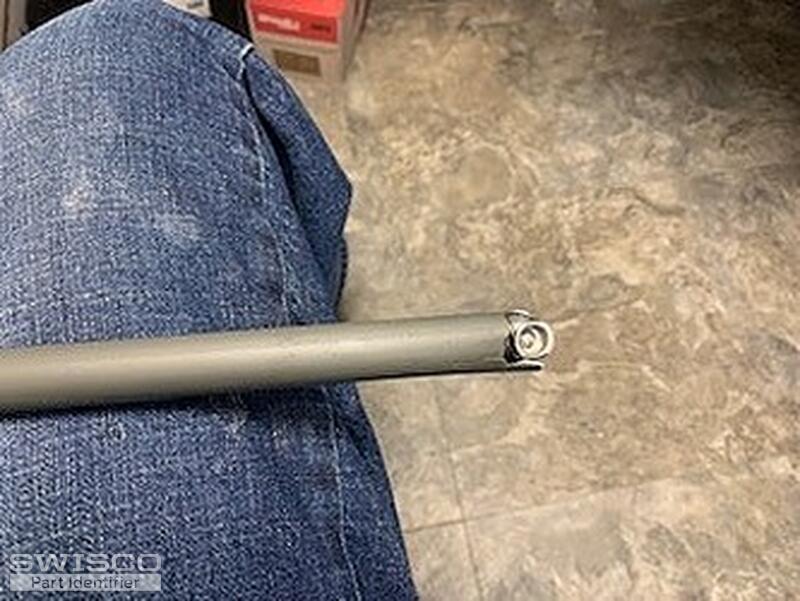

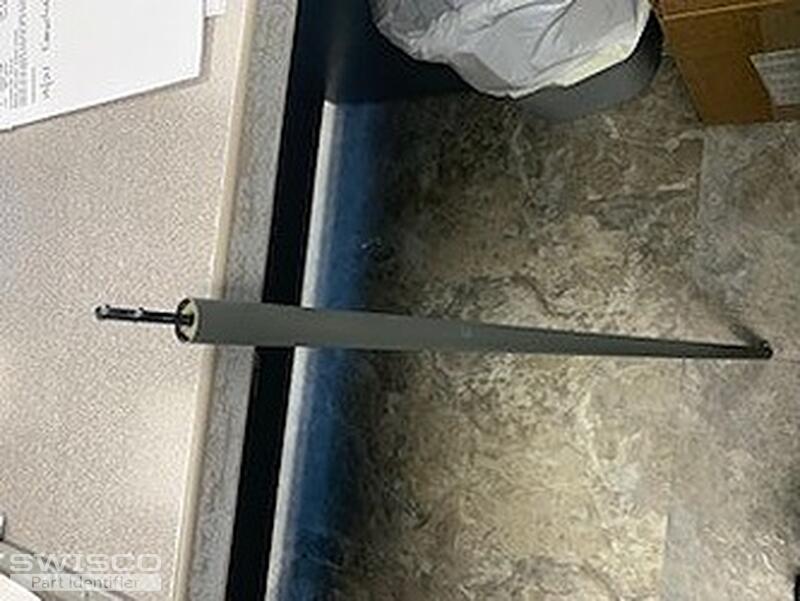

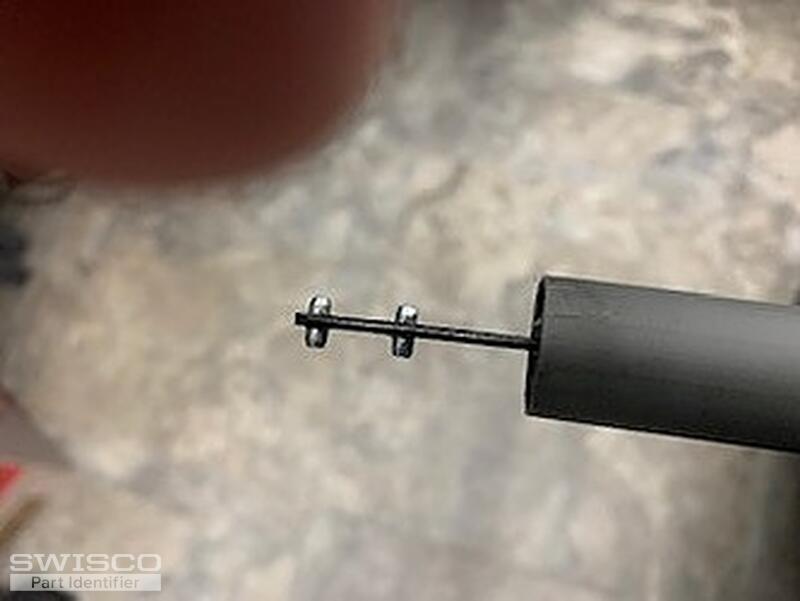

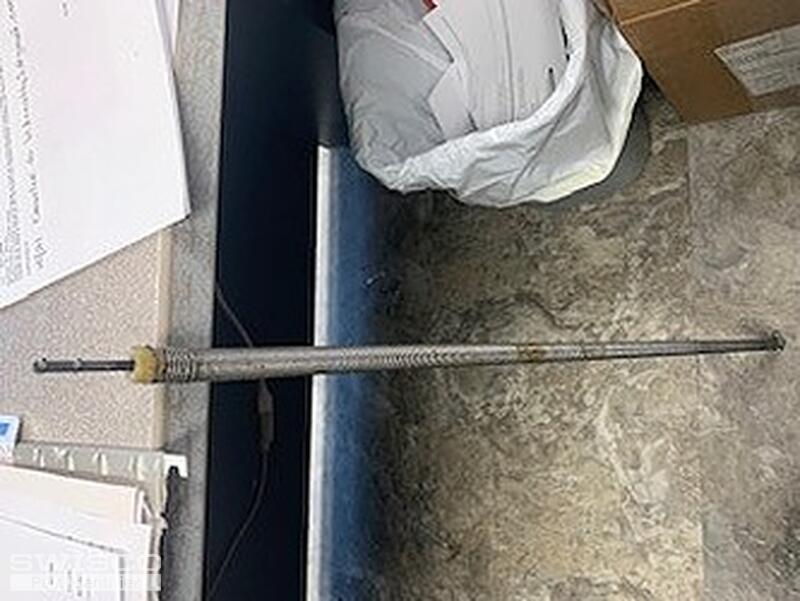

This balance has no stamp on it. It is a gray plastic tube, 35 inches long and the pins are 1/4 inch. I will need at least two but more may be ordered once I get one quoted.
4 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thanks, these photos are a huge help. This is definitely a Hybrid balance but it's very peculiar for it to have no stamp. Ordinarily, that tells us how much weight the springs can support, which is vital information; without those stamps, the only way we can know how to calibrate the springs is to know how heavy the sash itself is.

Would that be information you can get? I will need to know the exact weight of the sash down to the ounce. These are very, very precise systems so it's important to make sure the weight is just as precise.

Professional from us
These would be for a 50 pound sash weight.
Tom
Tom from SWISCO
SWISCO
Expert

Perfect, thank you. So I'll set you up with a pair of Hybrid balances that can support that precise weight. I'll email you a purchase link and price quote right now that you can use to place an order on our site.

Please let me know if you had any other questions.
