Hello, I appreciate the help getting the correct parts!

I need two non-tilt, channel balances with plastic shoe and top guide attached. Also two takeout clips.

Details :

Stamped 3410F
Length 35 inches
Width 1/2 inch
Depth 5/8 inch
Sash weight 17.5 lbs

Thanks again

Dave

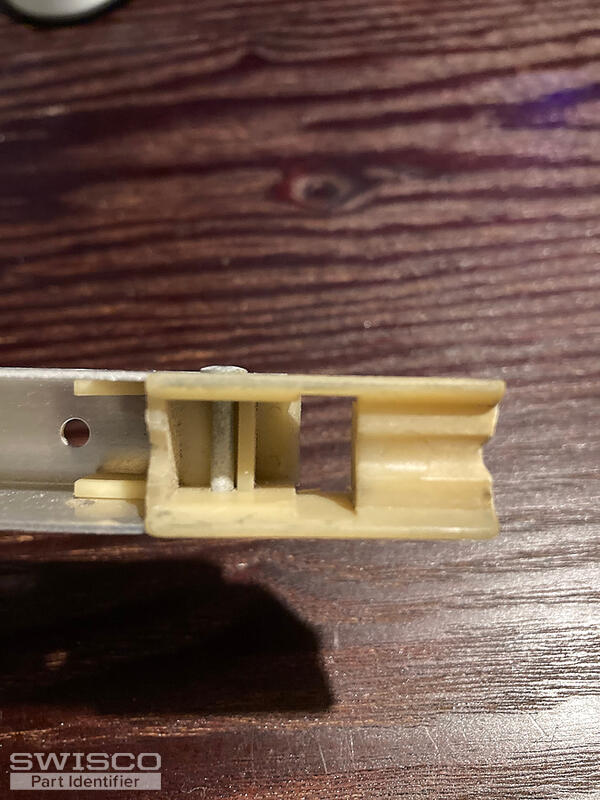

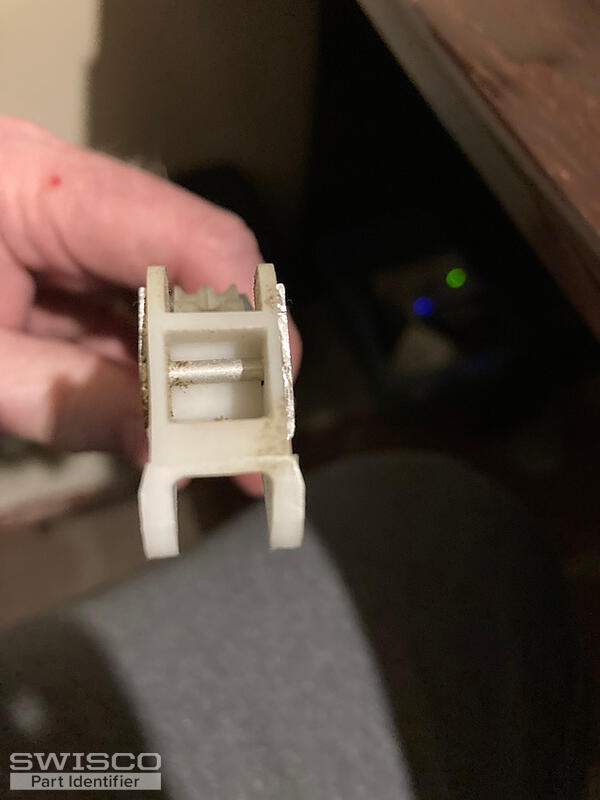

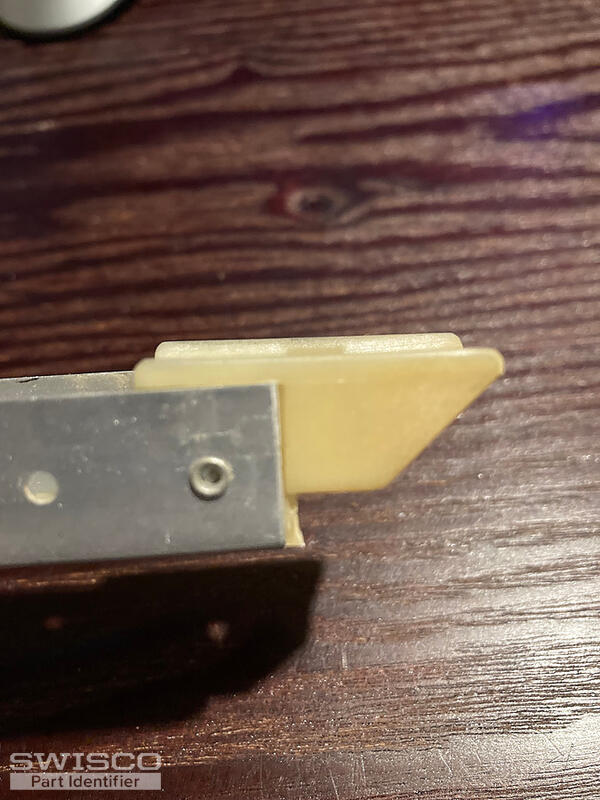

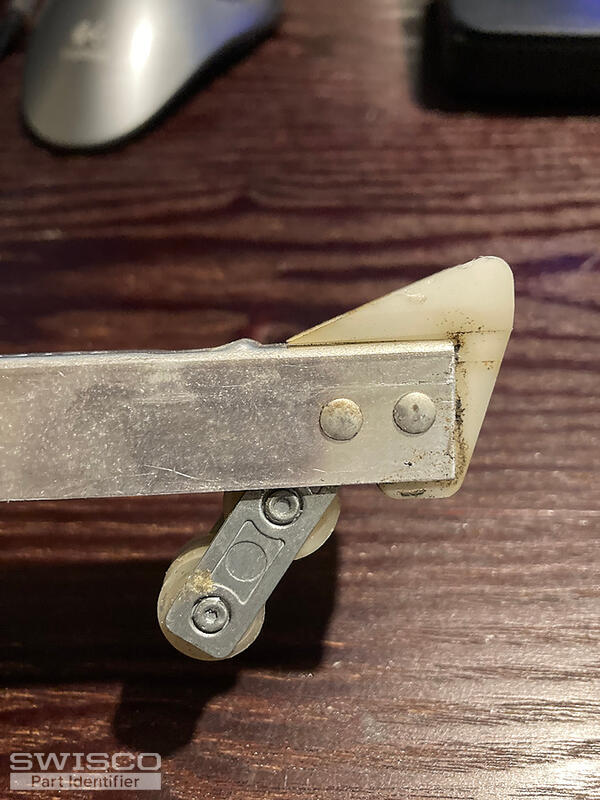

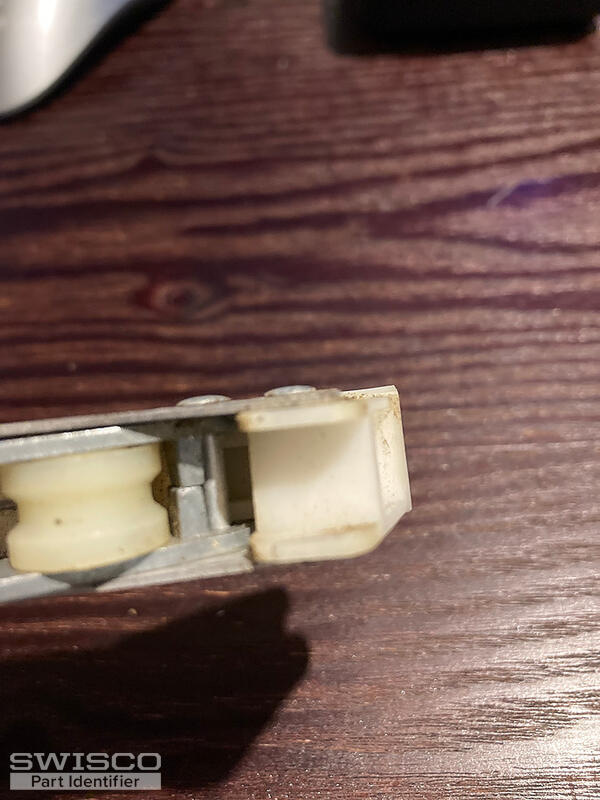

5 user uploaded images

2 Replies

Tom from SWISCO

Apr 29, 2022 12:59 pm

Thanks for your photos. Based on what I see here, you have either our S351-35 or S390-35, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S351 and S390 balance shoes.

Comparison of the S351 and S390 balance shoes.
