I need replacement parts - all of the plastic thingees

Start a new Discussion

Quick Learner from San Diego, CA

Sep 4, 2023 5:06 pm

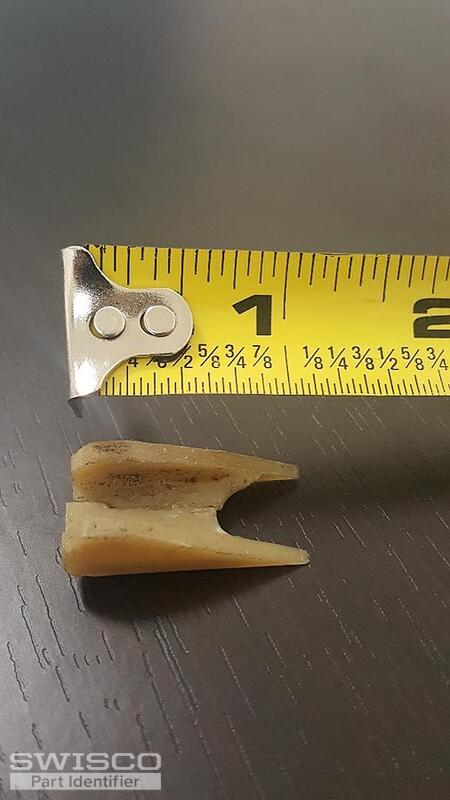

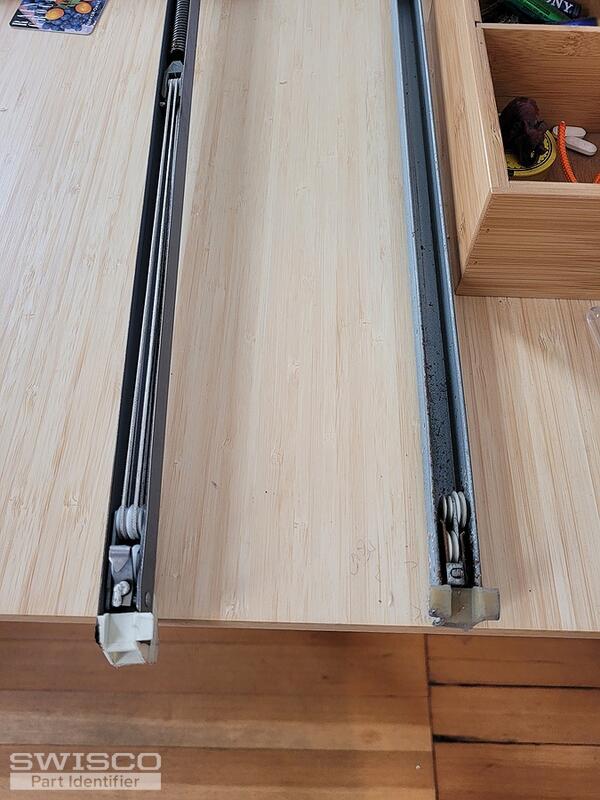

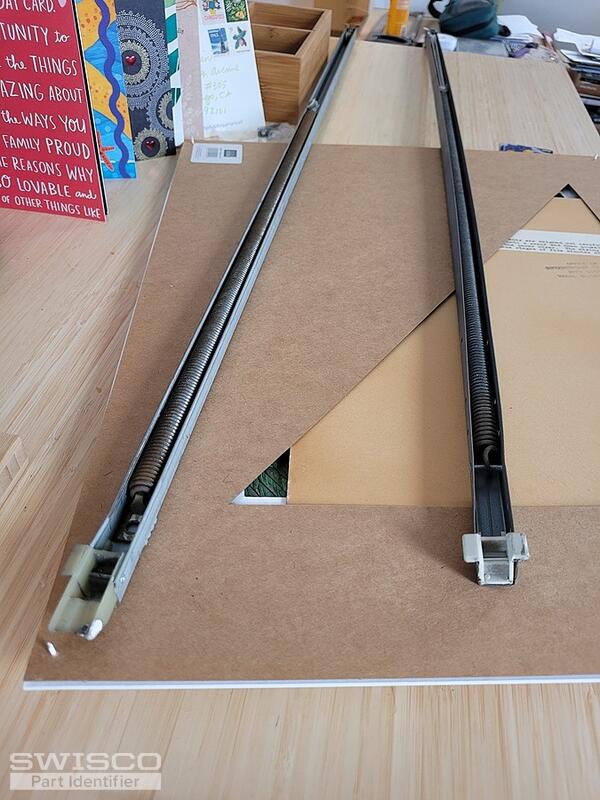

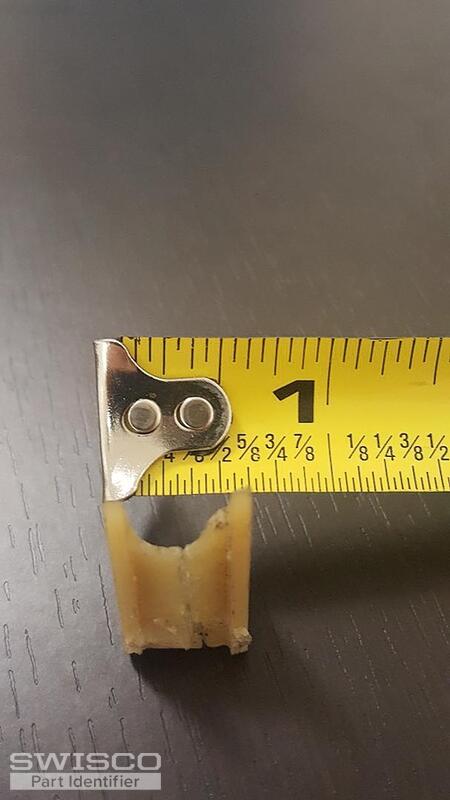

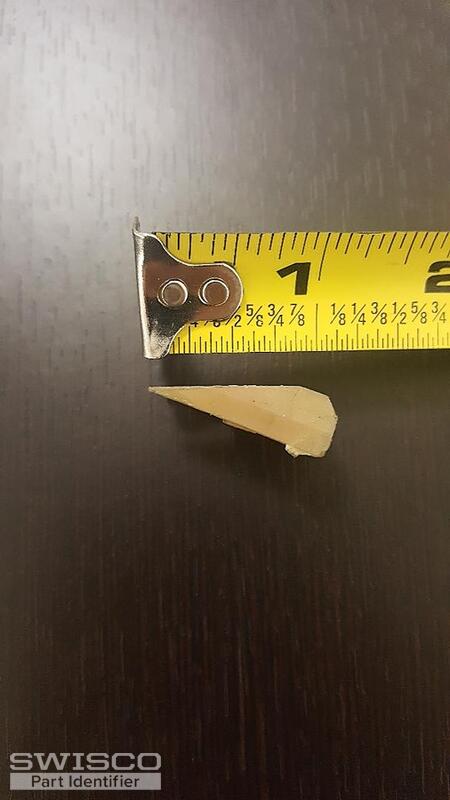

I have more pictures if needed.

5 user uploaded images

4 Replies

Quick Learner from San Diego, CA

Sep 4, 2023 7:32 pm

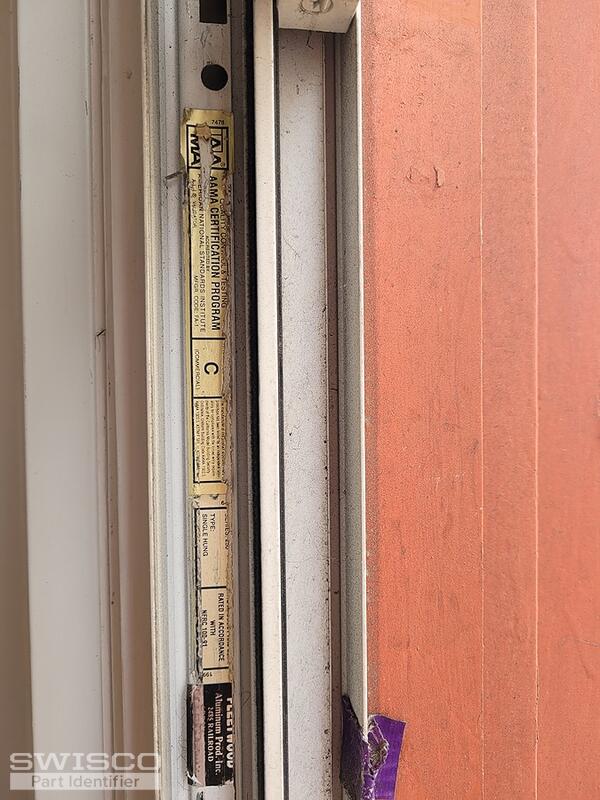

The metal channel is 36 inches long. I am attaching a photo that shows the label on the inside of the channel.

1 user uploaded image

Quick Learner from San Diego, CA

Sep 4, 2023 7:41 pm

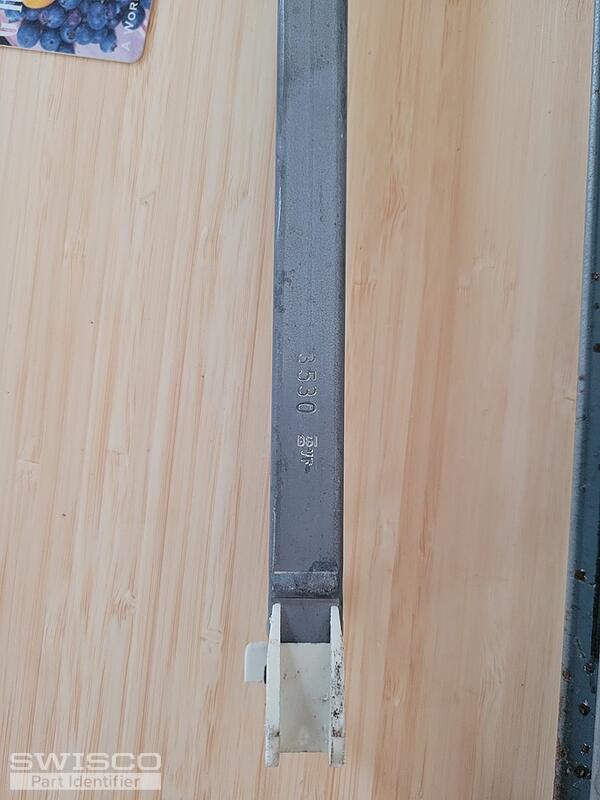

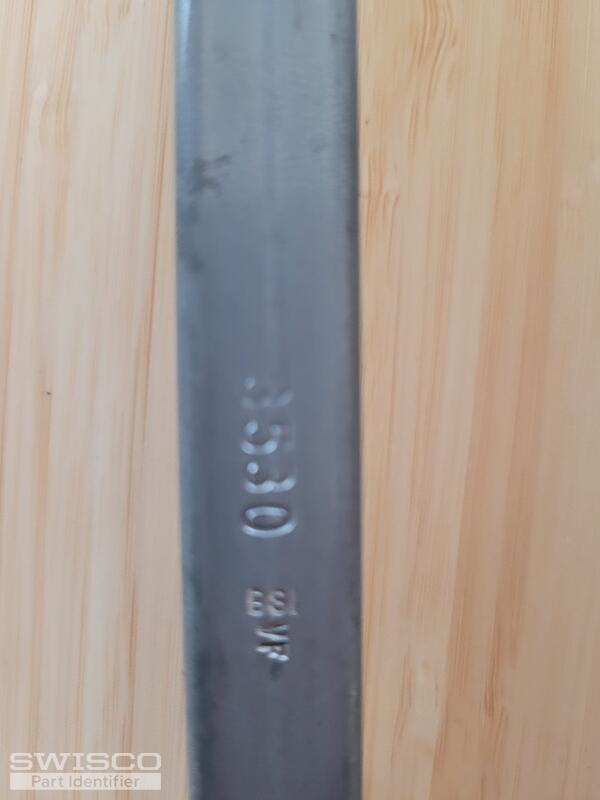

The channel is stamped 3530. See additional picture...
Also, the cord is broken on one of the channels. I need to re-string it. Do you sell the cord? The window has one of these channels on either side.

2 user uploaded images

Lauren from SWISCO

Sep 6, 2023 8:34 am

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You will need a 36" balance with a 3530 stamp option. The cords are not sold separately. The full balance will need to be replaced. Please review and let us know if you have any additional questions.

Comparison of the S378, S380 and S385 balance shoes.
