Identify Sash Pivot Bar?

Home Owner from Michigan
Attached is a photo of a broken sash pivot bar installed on an unknown brand vinyl window by a contractor who has gone out of business. I've looked all over the window and at the paperwork supplied by the contractor and cannot find the name of the manufacturer. Any help in identifying it or a possible Swisco equivalent would be greatly appreciated.

Thanks!

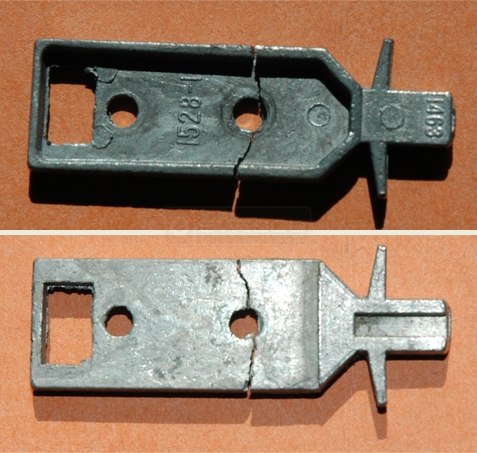

user uploaded photo of broken sash bar
8 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Good Morning,

We are researching a replacement pivot bar, but I have a quick question. What is stamped on the pivot bar? It looks like 1528-1 (but there maybe another number after the '1') and the other stamp looks like 1463.
Home Owner
I am sorry for not including this in my original question and for the shadow in the picture. You are right: it is stamped "1528-1" on the body and "1463" at the end. Thanks for your help.
Tom
Tom from SWISCO
SWISCO
Expert
We believe we may have located a replacement pivot bar that will work with your application. An update will be made to the discussion board as soon as the product is available and online for you to view.

Thank you for your patience.
Home Owner from Michigan
Thanks for the good news. I look forward to learning the details about the replacement.
Casey
Casey from SWISCO
SWISCO
Expert
Hi,
Please take a look at SWISCO product 26-376, Window Sash Tilt Pivot
Home Owner from Michigan
Thanks for the research and for getting the part. Just placed an order.
Handy Person from Illinois
Did the suggested replacement part work? I have the same broken pivots but the replacement suggested does not look exactly the same
