Identifying replacement parts

A home owner from Maine says:
May 29, 2023

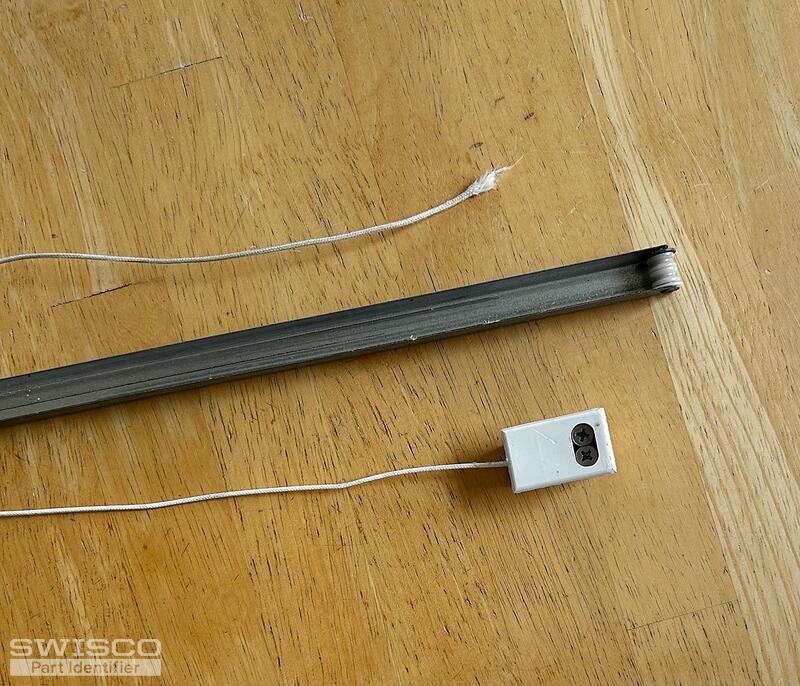

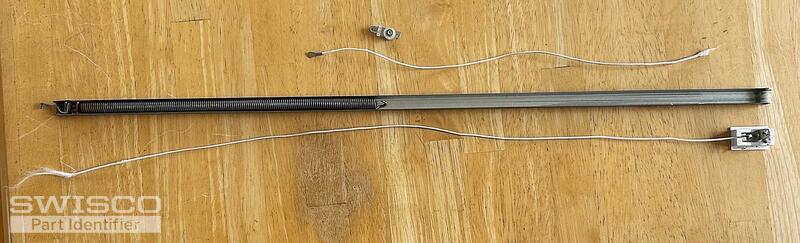

I'm trying to find a replacement channel balance and clips on top of my tilt window.

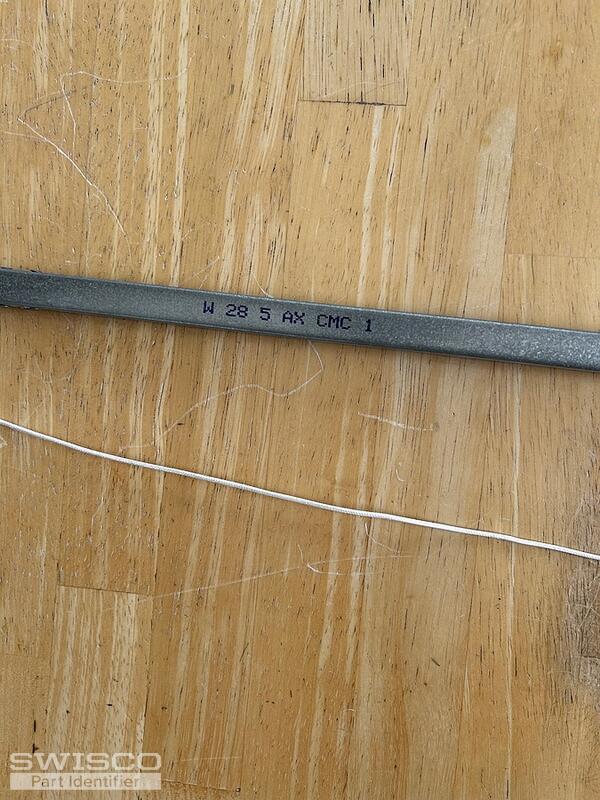

I tried searching with numbers printed on balance and couldn't find anything. I'm enclosing photos for assistance.
Thumbnail of the uploaded file named IMG_3736.jpeg
Thumbnail of the uploaded file named IMG_3737.jpeg
Thumbnail of the uploaded file named IMG_3738.jpeg
Thumbnail of the uploaded file named IMG_3740.jpeg
Thumbnail of the uploaded file named IMG_3741.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:
June 1, 2023

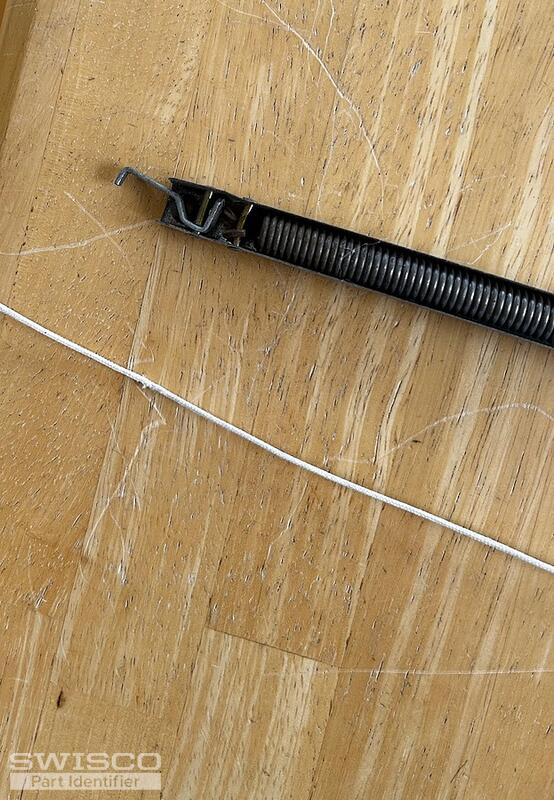

Thanks for writing in! Your balances appear to be the Series 765 channel balance with a pivot shoe hook attached at the bottom. Specifically, you'll need the S765-29 with a 28-9 stamp for a window weighing 34 to 38lbs.

The white plastic piece you are searching for is the balance stop, part 26-053 . Look over the dimensions to confirm that this is the replacement you need. I am confident this is the right fit for your window.

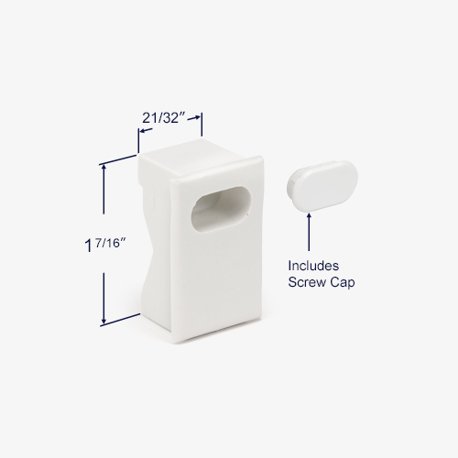

Dimensions for 26-053
Dimensions for 26-053

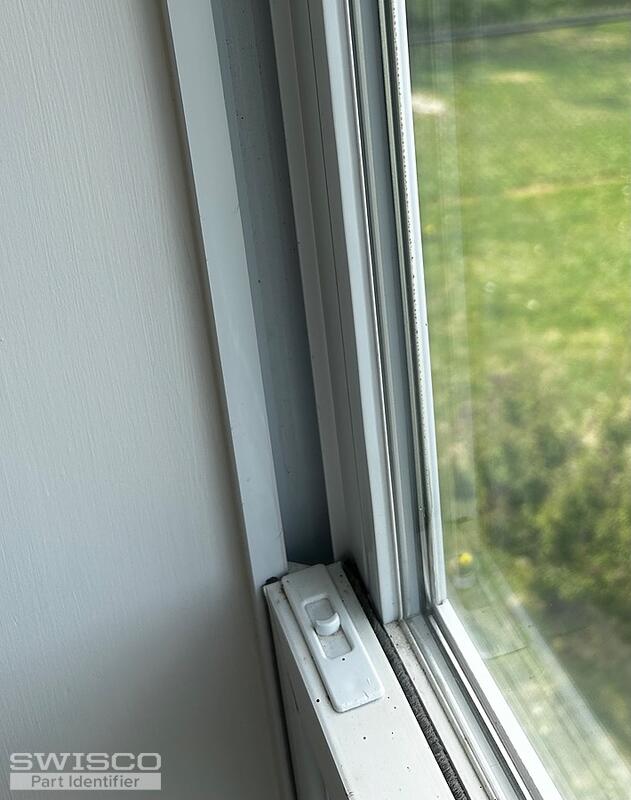

Regarding the clips on the top of the tilt window, I believe you may be referencing what we call tilt latches. Start with reviewing and comparing the 26-393 tilt latch pair to determine if this will work as a replacement for you. Carefully compare the design as well and let me know if you do not believe they will be the right fit.

Dimensions for 26-393
Dimensions for 26-393
