I'm trying to locate a window sash Pin

Start a new Discussion

Quick Learner from Dayton, Ohio

Dec 12, 2016 11:49 am

I believe it to be as pictured, my broken part meets the pictured dimensions.
DHPB-51
thanks
Kevin

User submitted image of their window hardware.

5 Replies

Quick Learner from Dayton, Ohio

Dec 12, 2016 11:54 am

pic of my broke part

Paul from SWISCO

Dec 14, 2016 10:33 am

Hey, Kevin. I'm a little confused. The broken sample in your second picture doesn't match the pivot bar in your first picture. They look similar, but they are not the same. Can you show me an undamaged version of your original pivot bar? Can you also confirm its exact dimensions, using the first picture as a reference? The hole spacing especially is the most important detail.

Quick Learner from Dayton, Ohio

Jan 9, 2017 10:05 am

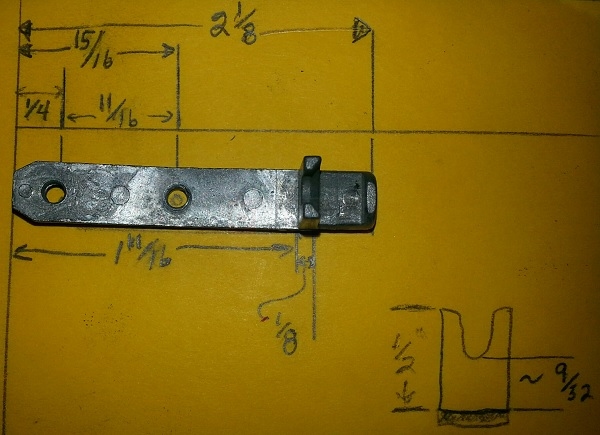

I included a picture of a complete pin, with dimensions.
note: this pin is bent, but the dimensions should be correct.
Pin overall length: 2 1/8 "
hole spacing: 11/16"
1st hole from edge: 1/4 "
2nd hole from edge: 15/16"

Thanks

Paul from SWISCO

Jan 17, 2017 9:54 am

Our 26-316 might work for you, but I would need to see your pivot shoe to see if the tip on the 26-316 will fit in.
