Integrity window from around 2002 need new crank

A quick learner from woodland CA, says:
April 27, 2018
Please feel free to call me if you need i need to order parts as this is last one i have for a spare

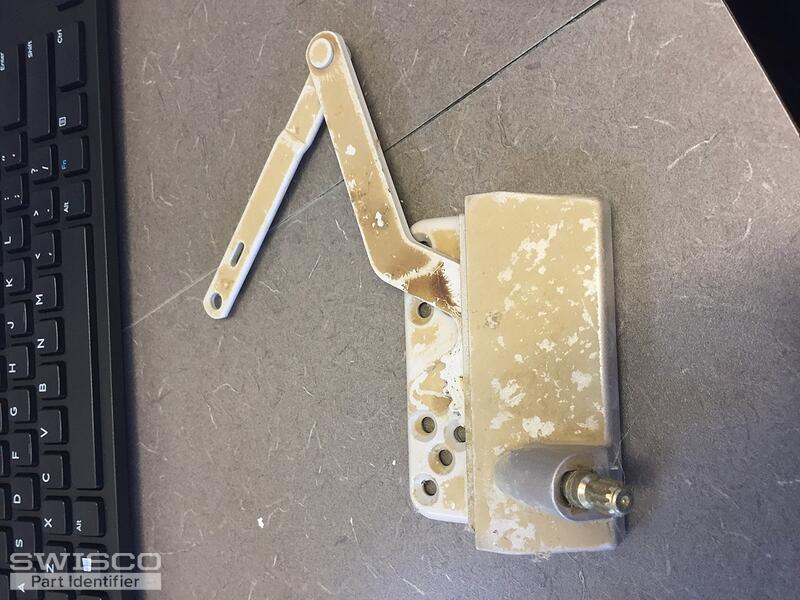

Thumbnail of the uploaded file named IMG_2670.JPG

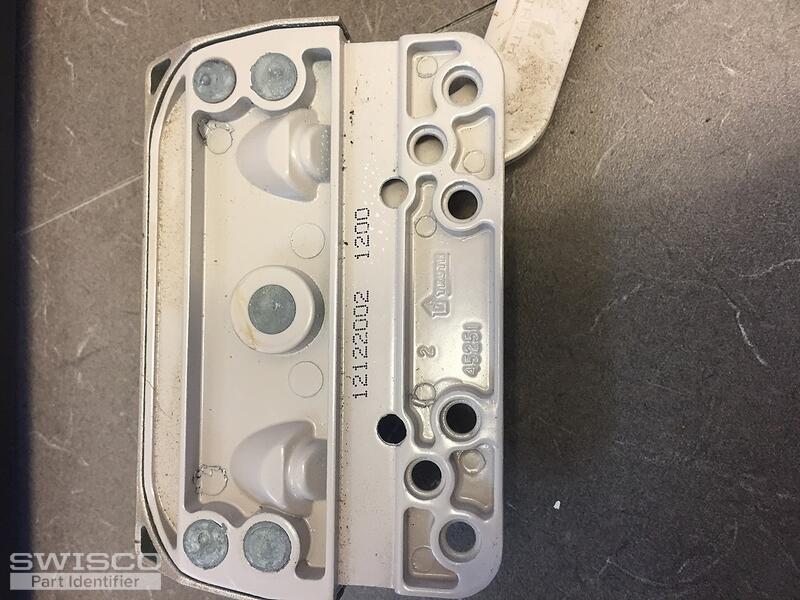

Thumbnail of the uploaded file named IMG_2669.JPG
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
April 30, 2018

Your existing operator has the older style "rectangular" shaped body. That said, we'd like for you to take a look at the 39-171 operator that offers a newer rounder style. I believe the body will fit your window, but I am not 100% sure of the link arm. Look over the measurements and specifications to see if this could fit your window.
A home owner from Rogers, MN says:
May 6, 2018

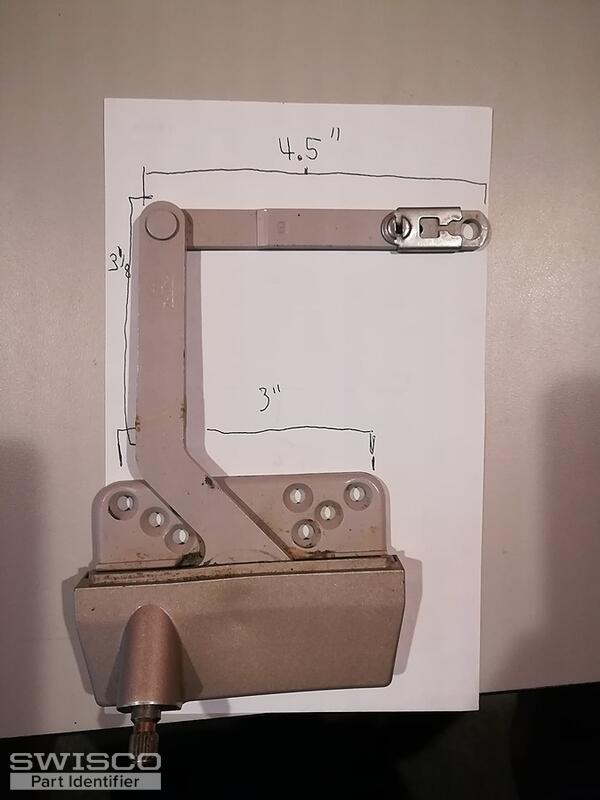

I'm looking to replace these also but the link arm with the clip is shorter (4 1/2 inches and these are 5". Everything else matches but that part of the arm. Any ideas?



Thumbnail of the uploaded file named IMG_20180506_182333.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 7, 2018

If your link arm is only 4-1/2" long, you'll have to reuse it. This can be done by drilling out the new and old arms, then installing the old arm on the new operator using our 62-014 rivet. To install this rivet, you'll have to hammer it in; I recommend doing it over a metal plate, if you have one. Let me know if you have any questions on this project.
